GM Performance Cylinder Head 88958667
CNC-Machined
Yes
Combustion Chamber Volume (cc)
28 Cubic Centimeter
Condition
New
Engine Compatibility
Chevy Small Block V8 283-400 Cubic Inch
Exhaust Port Location
Standard
Exhaust Valve Diameter (IN)
1-5/8 Inch
Includes Damper Spring
No
Includes Guideplates
No
Includes Rocker Arm Studs
No
Includes Valves
No
Intake Port Location
Standard
Share this page

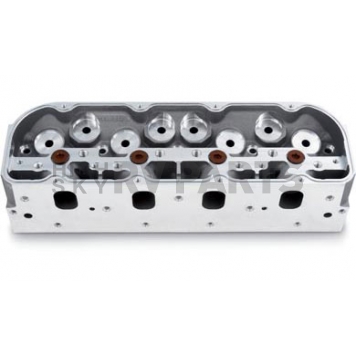

GM Performance Cylinder Head
Cylinder Head; SB2.2 Nascar Race Head; Bare; Aluminum; 28 CC Chamber; SB2.2 Ports; Angled Plug; Single
MPN: 88958667
The Chevrolet Performance SB2 NASCAR racing head was designed to improve durability, simplify preparation procedures, and reduce the overall cost of building and maintaining a Small-Block Chevrolet racing engine. It is ideal for single-four-barrel carburetor applications due to having “mirror” design intake ports and all eight ports being angled toward the center of the engine. Spark plug holes were moved toward the bore center for improved combustion efficiency. 48 Cubic Centimeter combustion chambers permit 12.1:1 compression ratio flat-top pistons.
Condition: New
Engine Compatibility: Chevy Small Block V8 283-400 Cubic Inch
Style: Bare
Material: Aluminum
CNC-Machined: Yes
Combustion Chamber Volume (cc): 28 Cubic Centimeter
Port Shape: Peanut
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.15 Inch
Exhaust Valve Diameter (IN): 1-5/8 Inch
Includes Valves: No
Spark Plug Angle: Angled
Rocker Arm Nut Thread Size: 3/8 Inch
Includes Rocker Arm Studs: No
Valve Lock Type: No Valve Lock
Valve Stem Seal Type: No Valve Stem Seal
Number Of Springs Per Valve: No Springs
Valve Seats Machined: Yes
Steam Holes Drilled: No
Machined For O-Ring: No
Includes Guideplates: No
Includes Damper Spring: No
Features
- Fully CNC Machined Aluminum Race Head
- Has Cast Ports And Combustion Chambers For Professional Finishing
- Special Spread Head Bolt Pattern, 3/8 Inch Fasteners, 19 Holes
- Machined With Additional 0.070 Inch Material On Deck Face
- Valve Centerlines Moved Apart 0.1 Inch For Additional Valve Clearance And Larger Valves
- Exhaust Port Positions Are Slightly Reoriented, But Same Bolt Pattern As Standard SB2.2
- ”As-Cast Peanut” Intake And Exhaust Ports
- Limited 1 Year Or 12000 Mile Warranty
Specifications of GM Performance Cylinder Head 88958667 | |
CNC-Machined | Yes |
Combustion Chamber Volume (cc) | 28 Cubic Centimeter |
Condition | New |
Engine Compatibility | Chevy Small Block V8 283-400 Cubic Inch |
Exhaust Port Location | Standard |
Exhaust Valve Diameter (IN) | 1-5/8 Inch |
Includes Damper Spring | No |
Includes Guideplates | No |
Includes Rocker Arm Studs | No |
Includes Valves | No |
Intake Port Location | Standard |
Intake Valve Diameter (IN) | 2.15 Inch |
Machined For O-Ring | No |
Material | Aluminum |
Number Of Springs Per Valve | No Springs |
Port Shape | Peanut |
Rocker Arm Nut Thread Size | 3/8 Inch |
Spark Plug Angle | Angled |
Steam Holes Drilled | No |
Style | Bare |
Valve Lock Type | No Valve Lock |
Valve Seats Machined | Yes |
Valve Stem Seal Type | No Valve Stem Seal |
