G2 Axle and Gear Ring and Pinion - 2-2052-488

Name: G2 Axle and Gear Ring and Pinion - 2-2052-488
Brand: G2 Axle and Gear
SKU: 2-2052-488
Price: 335.99 USD
Availability: InStock

Authorized Dealer

Brand:

G2 Axle and Gear

0 reviews

Have a product question? Ask us
Part Number: 2-2052-488
Part Location: U.S.
Availability: 1 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by June 10

Retail: $352.79

Price: $335.99

You Save: $16.80

Axle Model

Dana 44

Axle Version

Second Generation

Carrier Compatibility

3.73 And Numerically Lower

Material

Steel

Number Of Cover Bolts

Pinion Gear Teeth

Pinion Shaft Diameter (IN)

1-3/8 Inch

Pinion Spline Count

Ratio

4.88

Ring Gear Bolts

Ring Gear Diameter (IN)

8-1/2 Inch

Share this page

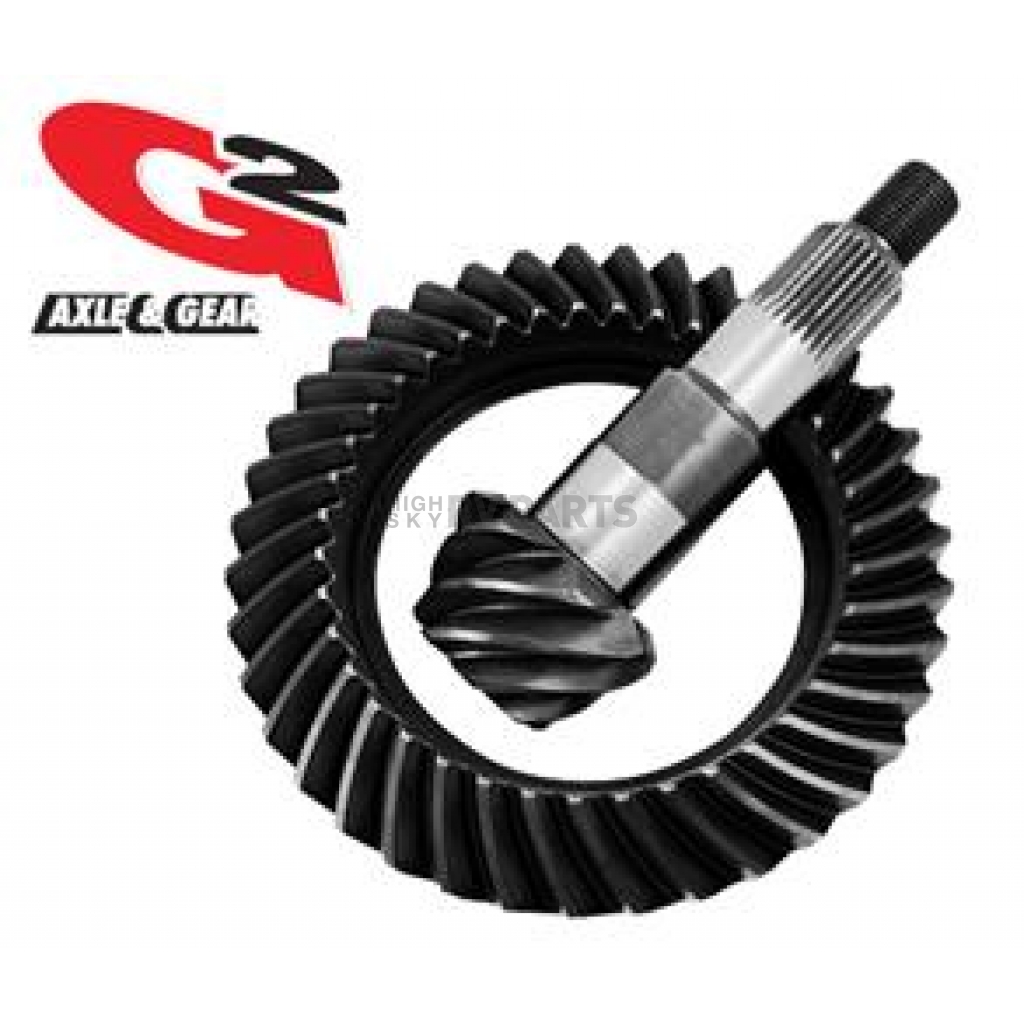

G2 Axle and Gear Differential Ring and Pinion

Differential Ring and Pinion; Performance; Dana 44; 8.5 Inch Ring Gear Diameter; 4.88 Ratio

MPN: 22052488

Our Performance Series gears are designed for the performance minded driver that requires strength and reliability above all else. They are forged from 8620 gear steel, and heat treated to handle the excess loads of racing and performance driving, while maintaining the ability to be used in a daily driver.

Axle Model: Dana 44

Axle Version: Second Generation

Ratio: 4.88

Ring Gear Teeth: 44

Pinion Gear Teeth: 9

Ring Gear Diameter (IN): 8-1/2 Inch

Pinion Shaft Diameter (IN): 1-3/8 Inch

Pinion Spline Count: 26

Ring Gear Rotation: Standard

Number Of Cover Bolts: 10

Ring Gear Bolts: 12

Carrier Compatibility: 3.73 And Numerically Lower

Material: Steel

Features

High Quality Gear Sets
Quiet Operation
Large Selection Of Applications And Ratios
Consistent Installation Tolerances
Limited 10 Year Warranty

Specifications of G2 Axle and Gear Ring and Pinion - 2-2052-488
Axle Model	Dana 44
Axle Version	Second Generation
Carrier Compatibility	3.73 And Numerically Lower
Material	Steel
Number Of Cover Bolts	10
Pinion Gear Teeth	9
Pinion Shaft Diameter (IN)	1-3/8 Inch
Pinion Spline Count	26
Ratio	4.88
Ring Gear Bolts	12
Ring Gear Diameter (IN)	8-1/2 Inch
Ring Gear Rotation	Standard
Ring Gear Teeth	44

2007-2018 Jeep Wrangler JK

2007 Jeep Wrangler JK
2008 Jeep Wrangler JK
2009 Jeep Wrangler JK
2010 Jeep Wrangler JK
2011 Jeep Wrangler JK
2012 Jeep Wrangler JK
2013 Jeep Wrangler JK
2014 Jeep Wrangler JK
2015 Jeep Wrangler JK
2016 Jeep Wrangler JK
2017 Jeep Wrangler JK
2018 Jeep Wrangler JK
