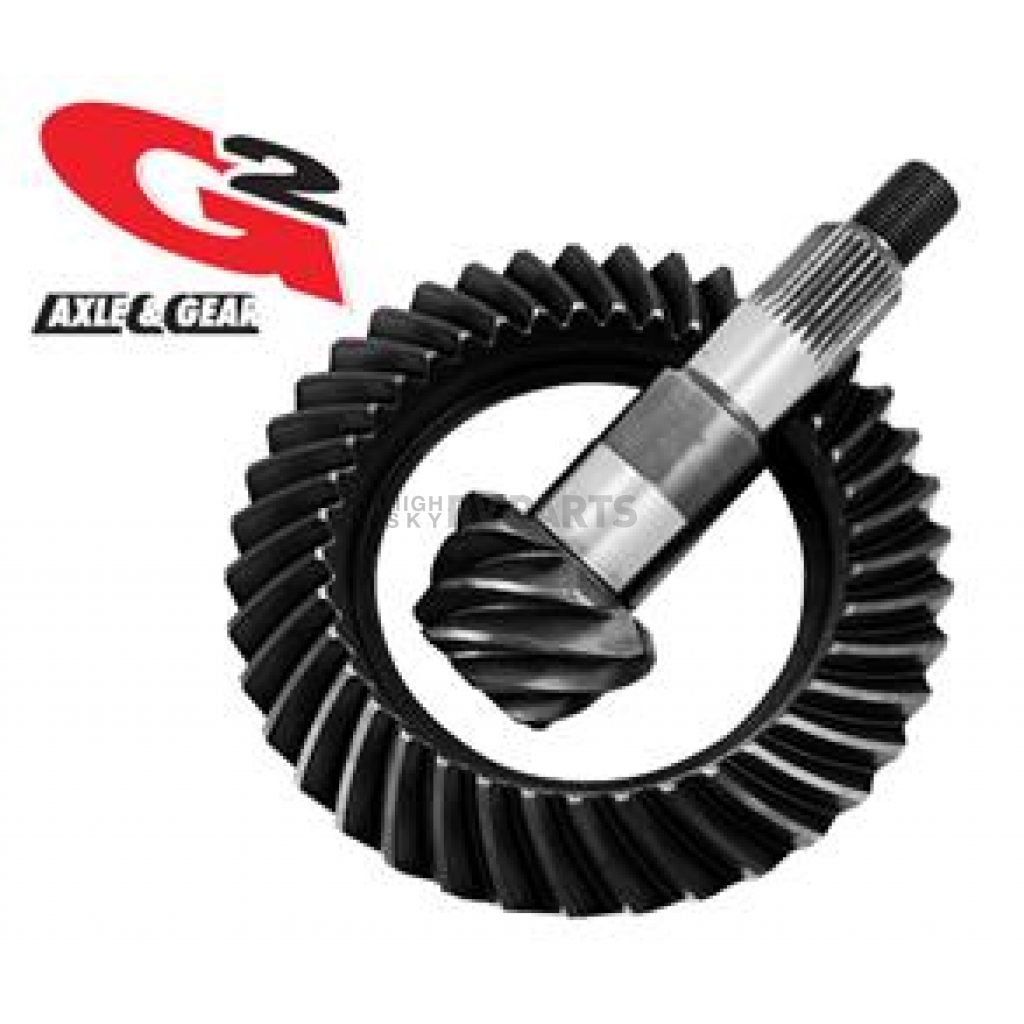

G2 Axle and Gear Ring and Pinion - 2-2032-456R

Name: G2 Axle and Gear Ring and Pinion - 2-2032-456R
Brand: G2 Axle and Gear
SKU: 2-2032-456R
Price: 349.99 USD
Availability: InStock

Authorized Dealer

Brand:

G2 Axle and Gear

0 reviews

Have a product question? Ask us
Part Number: 2-2032-456R
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 20

Retail: $367.49

Price: $349.99

You Save: $17.50

Axle Model

Dana 30

Axle Version

First Generation

Carrier Compatibility

3.73 And Up Lower Carrier/ 2.73 To 3.55 Higher Carrier

Material

Steel

Number Of Cover Bolts

Pinion Gear Teeth

Pinion Shaft Diameter (IN)

1-3/8 Inch

Pinion Spline Count

Ratio

4.56

Ring Gear Bolts

Ring Gear Diameter (IN)

7.2 Inch

Share this page

G2 Axle and Gear Differential Ring and Pinion

Differential Ring and Pinion; Performance; Dana 30 Reverse; 7.2 Inch Ring Gear Diameter; 4.56 Ratio

MPN: 22032456R

Our Performance Series gears are designed for the performance minded driver that requires strength and reliability above all else. They are forged from 8620 gear steel, and heat treated to handle the excess loads of racing and performance driving, while maintaining the ability to be used in a daily driver.

Axle Model: Dana 30

Axle Version: First Generation

Ratio: 4.56

Ring Gear Teeth: 41

Pinion Gear Teeth: 9

Ring Gear Diameter (IN): 7.2 Inch

Pinion Shaft Diameter (IN): 1-3/8 Inch

Pinion Spline Count: 26

Ring Gear Rotation: Reverse

Number Of Cover Bolts: 10

Ring Gear Bolts: 10

Carrier Compatibility: 3.73 And Up Lower Carrier/ 2.73 To 3.55 Higher Carrier

Material: Steel

Features

High Quality Gear Sets
Quiet Operation
Large Selection Of Applications And Ratios
Consistent Installation Tolerances
Limited 10 Year Warranty

Specifications of G2 Axle and Gear Ring and Pinion - 2-2032-456R
Axle Model	Dana 30
Axle Version	First Generation
Carrier Compatibility	3.73 And Up Lower Carrier/ 2.73 To 3.55 Higher Carrier
Material	Steel
Number Of Cover Bolts	10
Pinion Gear Teeth	9
Pinion Shaft Diameter (IN)	1-3/8 Inch
Pinion Spline Count	26
Ratio	4.56
Ring Gear Bolts	10
Ring Gear Diameter (IN)	7.2 Inch
Ring Gear Rotation	Reverse
Ring Gear Teeth	41

1984-1999 Jeep Cherokee

1984 Jeep Cherokee
1985 Jeep Cherokee
1986 Jeep Cherokee
1987 Jeep Cherokee
1988 Jeep Cherokee
1989 Jeep Cherokee
1990 Jeep Cherokee
1991 Jeep Cherokee
1992 Jeep Cherokee
1993 Jeep Cherokee
1994 Jeep Cherokee
1995 Jeep Cherokee
1996 Jeep Cherokee
1997 Jeep Cherokee
1998 Jeep Cherokee
1999 Jeep Cherokee

1987-1995 Jeep Wrangler YJ

1987 Jeep Wrangler YJ
1988 Jeep Wrangler YJ
1989 Jeep Wrangler YJ
1990 Jeep Wrangler YJ
1991 Jeep Wrangler YJ
1992 Jeep Wrangler YJ
1993 Jeep Wrangler YJ
1994 Jeep Wrangler YJ
1995 Jeep Wrangler YJ
