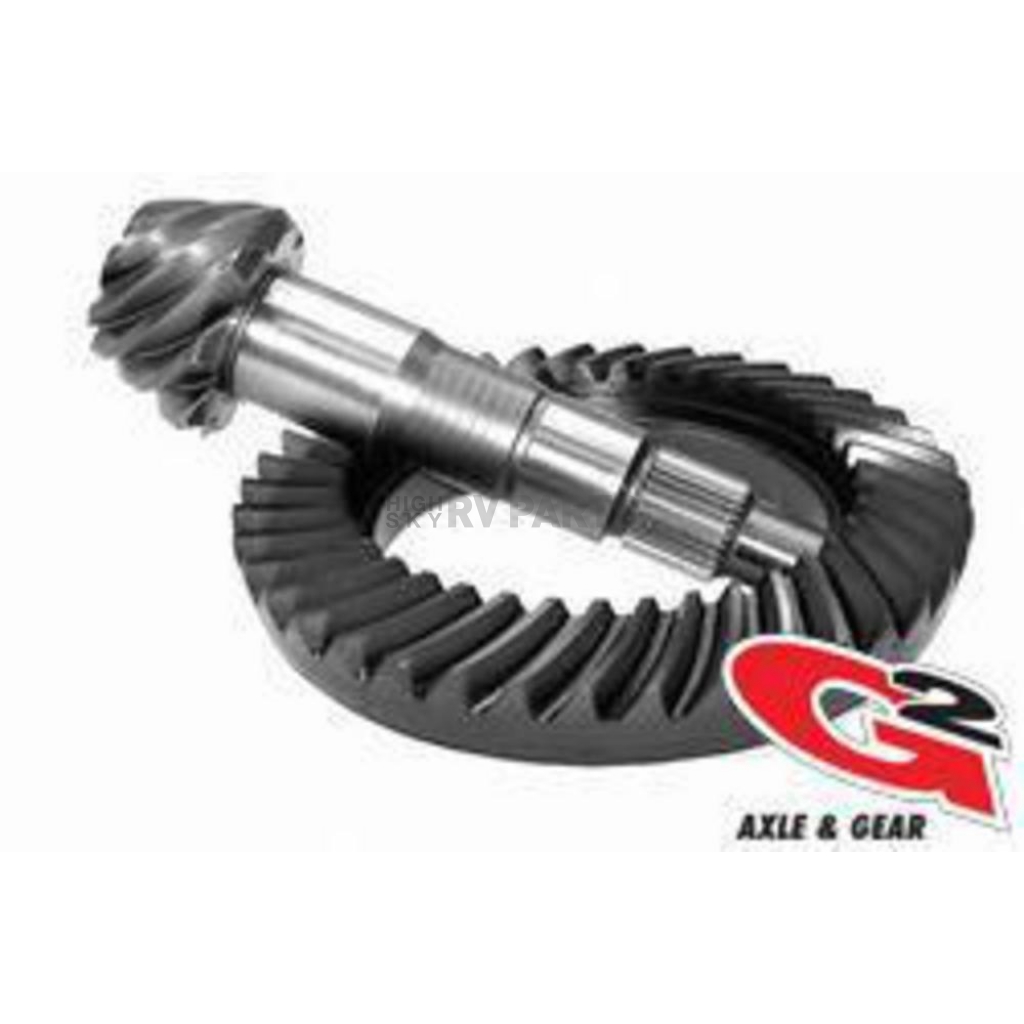

G2 Axle and Gear Differential Ring and Pinion - 2-2052-513
Axle Model
Dana 44
Axle Version
Second Generation
Carrier Compatibility
3.73 And Numerically Lower
Material
Steel
Number Of Cover Bolts
10
Pinion Gear Teeth
8
Pinion Shaft Diameter (IN)
1-3/8 Inch
Pinion Spline Count
26
Ratio
5.13
Ring Gear Bolts
12
Ring Gear Diameter (IN)
8-1/2 Inch
Share this page
Differential Ring and Pinion; Performance; Dana 44; 8.5 Inch Ring Gear Diameter; 5.13 Ratio
MPN: 2-2052-513
Our Performance Series gears are designed for the performance minded driver that requires strength and reliability above all else. They are forged from 8620 gear steel, and heat treated to handle the excess loads of racing and performance driving, while maintaining the ability to be used in a daily driver.Axle Model: Dana 44
Axle Version: Second Generation
Ratio: 5.13
Ring Gear Diameter (IN): 8-1/2 Inch
Pinion Shaft Diameter (IN): 1-3/8 Inch
Pinion Spline Count: 26
Ring Gear Rotation: Standard
Carrier Compatibility: 3.73 And Numerically Lower
Ring Gear Teeth: 41
Pinion Gear Teeth: 8
Number Of Cover Bolts: 10
Ring Gear Bolts: 12
Material: Steel
Features
- High Quality Gear Sets
- Quiet Operation
- Large Selection Of Applications And Ratios
- Consistent Installation Tolerances
- Limited 10 Year Warranty
Specifications of G2 Axle and Gear Differential Ring and Pinion - 2-2052-513 | |
Axle Model | Dana 44 |
Axle Version | Second Generation |
Carrier Compatibility | 3.73 And Numerically Lower |
Material | Steel |
Number Of Cover Bolts | 10 |
Pinion Gear Teeth | 8 |
Pinion Shaft Diameter (IN) | 1-3/8 Inch |
Pinion Spline Count | 26 |
Ratio | 5.13 |
Ring Gear Bolts | 12 |
Ring Gear Diameter (IN) | 8-1/2 Inch |
Ring Gear Rotation | Standard |
Ring Gear Teeth | 41 |
2007 Jeep Wrangler JK
2008 Jeep Wrangler JK
2009 Jeep Wrangler JK
2010 Jeep Wrangler JK
2011 Jeep Wrangler JK
2012 Jeep Wrangler JK
2013 Jeep Wrangler JK
2014 Jeep Wrangler JK
2015 Jeep Wrangler JK
2016 Jeep Wrangler JK
2017 Jeep Wrangler JK
2018 Jeep Wrangler JK
2008 Jeep Wrangler JK
2009 Jeep Wrangler JK
2010 Jeep Wrangler JK
2011 Jeep Wrangler JK
2012 Jeep Wrangler JK
2013 Jeep Wrangler JK
2014 Jeep Wrangler JK
2015 Jeep Wrangler JK
2016 Jeep Wrangler JK
2017 Jeep Wrangler JK
2018 Jeep Wrangler JK
