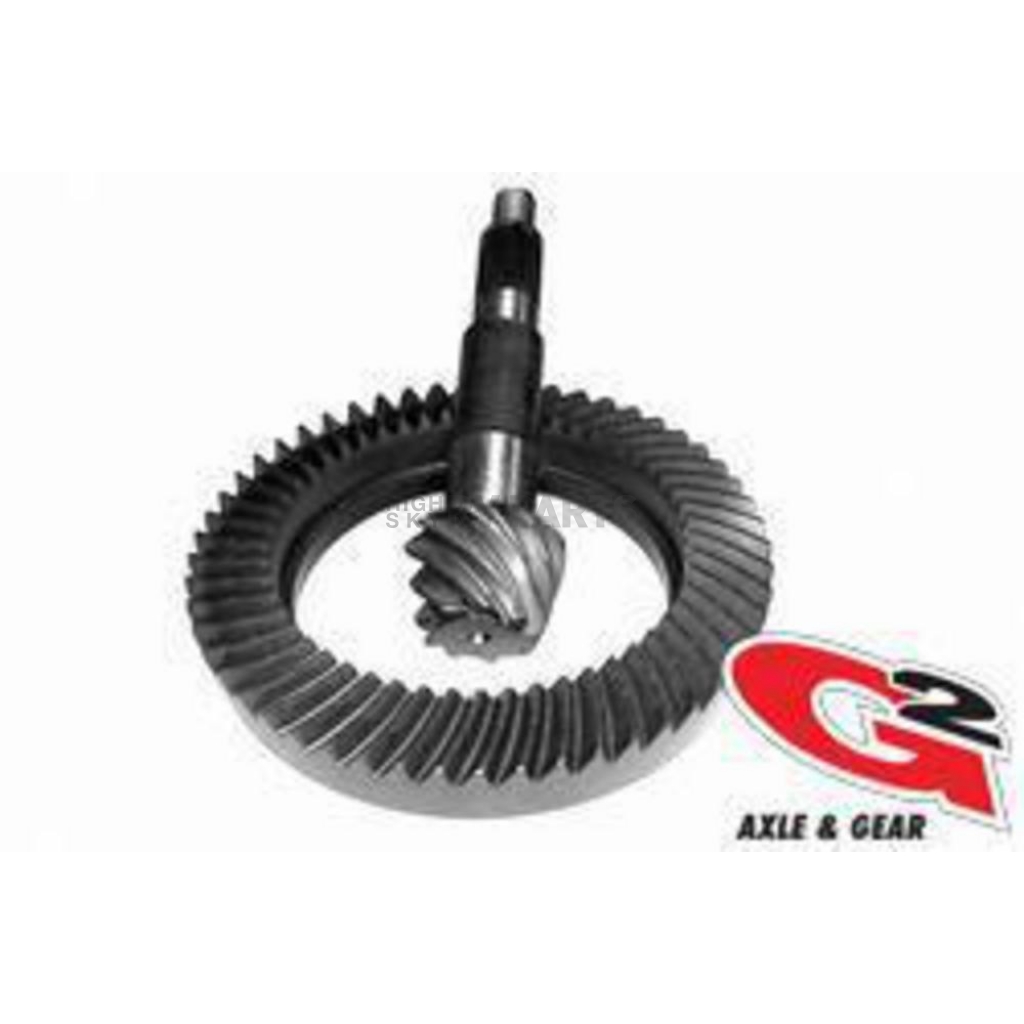

G2 Axle and Gear Differential Ring and Pinion - 2-2045-488

Authorized Dealer
Brand: G2 Axle and Gear G2 Axle and Gear
0 reviews
  • Have a product question? Ask us
  • Part Number: 2-2045-488
  • Part Location: U.S.
  • Availability: Special Order
  • Delivery: 2 - 3 Weeks
Retail: $402.14
Price: $382.99
You Save: $19.15
Axle Model
 Dana 44
Axle Version
 First Generation
Carrier Compatibility
 3.92 And Up Lower Carrier/ 2.72 To 3.73 Higher Carrier
Material
 Steel
Number Of Cover Bolts
 10
Pinion Gear Teeth
 9
Pinion Shaft Diameter (IN)
 1-3/8 Inch
Pinion Spline Count
 26
Ratio
 4.88
Ring Gear Bolts
 10
Ring Gear Diameter (IN)
 8-1/2 Inch
Share this page

Differential Ring and Pinion; Performance; Dana 44; 8.5 Inch Ring Gear Diameter; 4.88 Ratio

MPN: 2-2045-488

Our Performance Series gears are designed for the performance minded driver that requires strength and reliability above all else. They are forged from 8620 gear steel, and heat treated to handle the excess loads of racing and performance driving, while maintaining the ability to be used in a daily driver.

Axle Model: Dana 44
Axle Version: First Generation
Ratio: 4.88
Ring Gear Diameter (IN): 8-1/2 Inch
Pinion Shaft Diameter (IN): 1-3/8 Inch
Pinion Spline Count: 26
Ring Gear Rotation: Standard
Carrier Compatibility: 3.92 And Up Lower Carrier/ 2.72 To 3.73 Higher Carrier
Ring Gear Teeth: 44
Pinion Gear Teeth: 9
Number Of Cover Bolts: 10
Ring Gear Bolts: 10
Material: Steel

Features

  • High Quality Gear Sets
  • Quiet Operation
  • Large Selection Of Applications And Ratios
  • Consistent Installation Tolerances
  • Limited 10 Year Warranty
Specifications of G2 Axle and Gear Differential Ring and Pinion - 2-2045-488
Axle Model  Dana 44
Axle Version  First Generation
Carrier Compatibility  3.92 And Up Lower Carrier/ 2.72 To 3.73 Higher Carrier
Material  Steel
Number Of Cover Bolts  10
Pinion Gear Teeth  9
Pinion Shaft Diameter (IN)  1-3/8 Inch
Pinion Spline Count  26
Ratio  4.88
Ring Gear Bolts  10
Ring Gear Diameter (IN)  8-1/2 Inch
Ring Gear Rotation  Standard
Ring Gear Teeth  44

2004 Jeep Wrangler TJ
2005 Jeep Wrangler TJ
2006 Jeep Wrangler TJ
