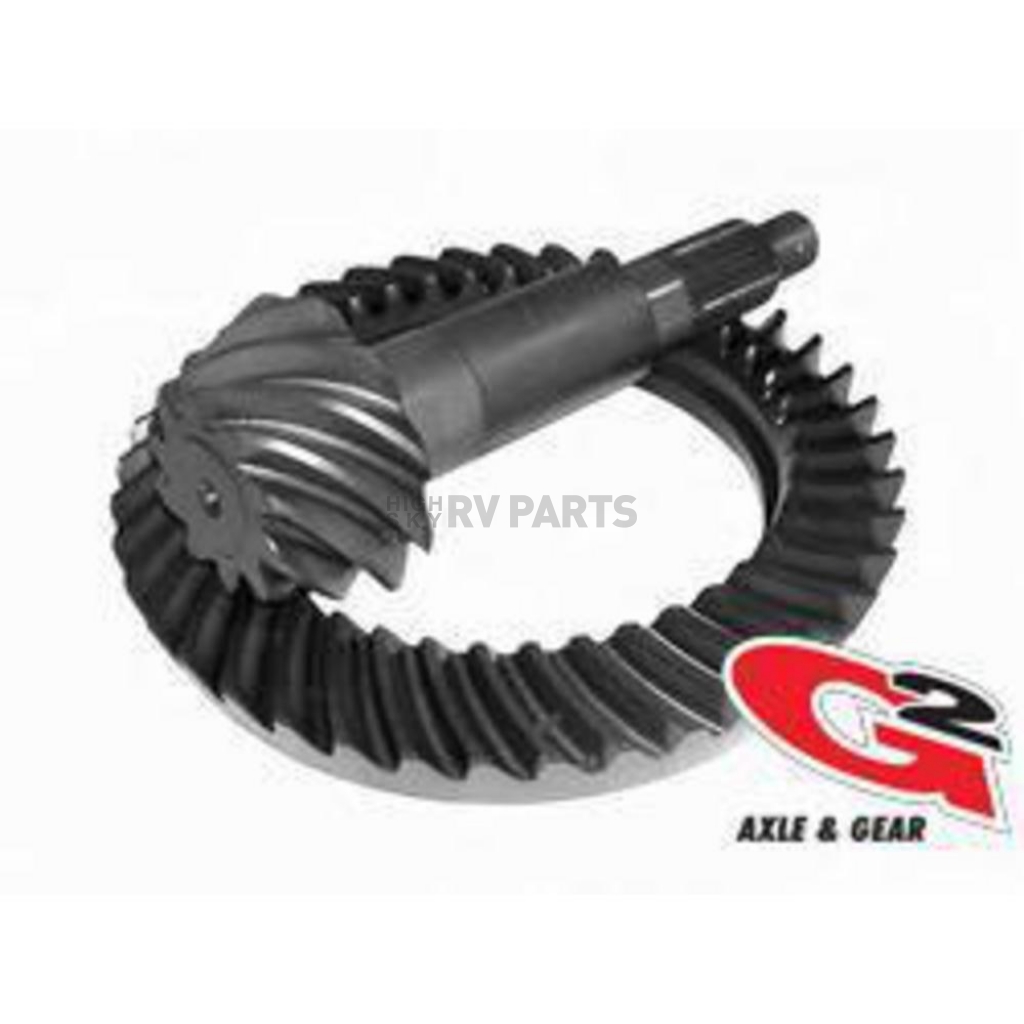

G2 Axle and Gear Differential Ring and Pinion - 2-2034-513RX

Authorized Dealer
Brand: G2 Axle and Gear G2 Axle and Gear
0 reviews
  • Have a product question? Ask us
  • Part Number: 2-2034-513RX
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 06
Retail: $423.14
Price: $402.99
You Save: $20.15
Axle Model
 Dana 60
Axle Version
 First Generation
Carrier Compatibility
 4.56 To 5.38 Lower Carrier/ 3.54 To 4.1 Higher Carrier
Material
 Steel
Number Of Cover Bolts
 10
Pinion Shaft Diameter (IN)
 1-5/8 Inch
Pinion Spline Count
 29
Ratio
 5.13
Ring Gear Bolts
 12
Ring Gear Diameter (IN)
 9-3/4 Inch
Ring Gear Rotation
 Reverse
Share this page

Differential Ring and Pinion; Performance; Dana 60 Reverse; 9.75 Inch Ring Gear Diameter; 5.13 Ratio

MPN: 2-2034-513RX

Our Performance Series gears are designed for the performance minded driver that requires strength and reliability above all else. They are forged from 8620 gear steel, and heat treated to handle the excess loads of racing and performance driving, while maintaining the ability to be used in a daily driver.

Axle Model: Dana 60
Axle Version: First Generation
Ratio: 5.13
Ring Gear Diameter (IN): 9-3/4 Inch
Pinion Shaft Diameter (IN): 1-5/8 Inch
Pinion Spline Count: 29
Ring Gear Rotation: Reverse
Carrier Compatibility: 4.56 To 5.38 Lower Carrier/ 3.54 To 4.1 Higher Carrier
Number Of Cover Bolts: 10
Ring Gear Bolts: 12
Material: Steel

Features

  • High Quality Gear Sets
  • Quiet Operation
  • Large Selection Of Applications And Ratios
  • Consistent Installation Tolerances
  • Limited 10 Year Warranty
Specifications of G2 Axle and Gear Differential Ring and Pinion - 2-2034-513RX
Axle Model  Dana 60
Axle Version  First Generation
Carrier Compatibility  4.56 To 5.38 Lower Carrier/ 3.54 To 4.1 Higher Carrier
Material  Steel
Number Of Cover Bolts  10
Pinion Shaft Diameter (IN)  1-5/8 Inch
Pinion Spline Count  29
Ratio  5.13
Ring Gear Bolts  12
Ring Gear Diameter (IN)  9-3/4 Inch
Ring Gear Rotation  Reverse

1978 Ford F-250
1979 Ford F-250

2002 Ford F-250 Super Duty
2003 Ford F-250 Super Duty
2004 Ford F-250 Super Duty
2005 Ford F-250 Super Duty
2006 Ford F-250 Super Duty

1978 Ford F-350
1979 Ford F-350

1986 Ford F-350
1987 Ford F-350
1988 Ford F-350
1989 Ford F-350
1990 Ford F-350
1991 Ford F-350
1992 Ford F-350
1993 Ford F-350
1994 Ford F-350
1995 Ford F-350
1996 Ford F-350
1997 Ford F-350

2002 Ford F-350 Super Duty
2003 Ford F-350 Super Duty
2004 Ford F-350 Super Duty
2005 Ford F-350 Super Duty
2006 Ford F-350 Super Duty
