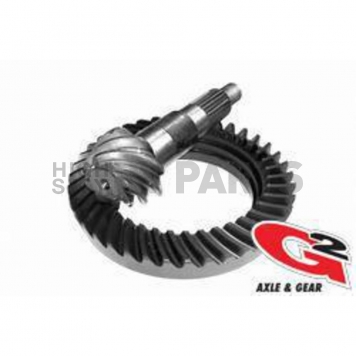

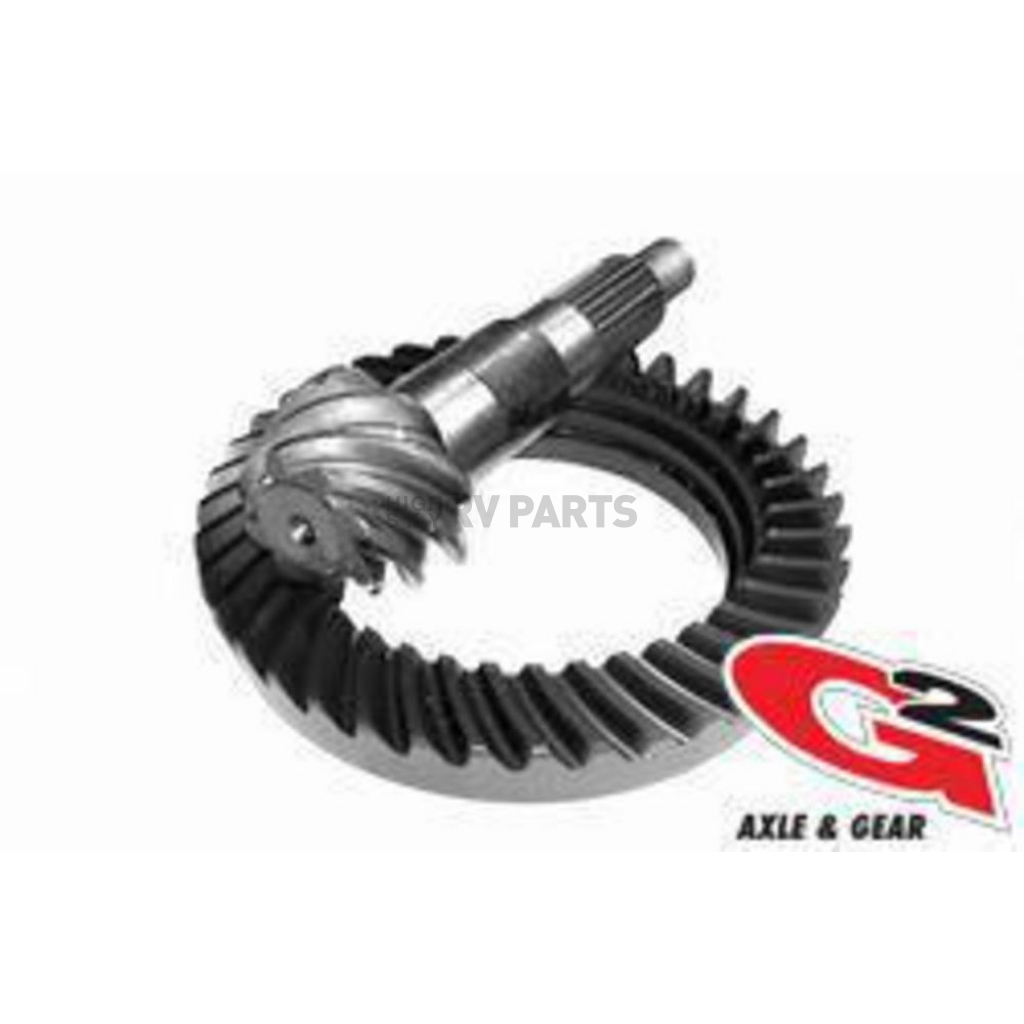

G2 Axle and Gear Differential Ring and Pinion - 2-2032-488R

Authorized Dealer
Brand: G2 Axle and Gear G2 Axle and Gear
0 reviews
  • Have a product question? Ask us
  • Part Number: 2-2032-488R
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 06
Retail: $355.94
Price: $338.99
You Save: $16.95
Axle Model
 Dana 30
Axle Version
 First Generation
Carrier Compatibility
 3.73 And Up Lower Carrier/ 2.73 To 3.55 Higher Carrier
Material
 Steel
Number Of Cover Bolts
 10
Pinion Gear Teeth
 8
Pinion Shaft Diameter (IN)
 1-3/8 Inch
Pinion Spline Count
 26
Ratio
 4.88
Ring Gear Bolts
 10
Ring Gear Diameter (IN)
 7.2 Inch
Share this page

Differential Ring and Pinion; Performance; Dana 30 Reverse; 7.2 Inch Ring Gear Diameter; 4.88 Ratio

MPN: 2-2032-488R

Our Performance Series gears are designed for the performance minded driver that requires strength and reliability above all else. They are forged from 8620 gear steel, and heat treated to handle the excess loads of racing and performance driving, while maintaining the ability to be used in a daily driver.

Axle Model: Dana 30
Axle Version: First Generation
Ratio: 4.88
Ring Gear Diameter (IN): 7.2 Inch
Pinion Shaft Diameter (IN): 1-3/8 Inch
Pinion Spline Count: 26
Ring Gear Rotation: Reverse
Carrier Compatibility: 3.73 And Up Lower Carrier/ 2.73 To 3.55 Higher Carrier
Ring Gear Teeth: 39
Pinion Gear Teeth: 8
Number Of Cover Bolts: 10
Ring Gear Bolts: 10
Material: Steel

Features

  • High Quality Gear Sets
  • Quiet Operation
  • Large Selection Of Applications And Ratios
  • Consistent Installation Tolerances
  • Limited 10 Year Warranty
Specifications of G2 Axle and Gear Differential Ring and Pinion - 2-2032-488R
Axle Model  Dana 30
Axle Version  First Generation
Carrier Compatibility  3.73 And Up Lower Carrier/ 2.73 To 3.55 Higher Carrier
Material  Steel
Number Of Cover Bolts  10
Pinion Gear Teeth  8
Pinion Shaft Diameter (IN)  1-3/8 Inch
Pinion Spline Count  26
Ratio  4.88
Ring Gear Bolts  10
Ring Gear Diameter (IN)  7.2 Inch
Ring Gear Rotation  Reverse
Ring Gear Teeth  39

1984 Jeep Cherokee
1985 Jeep Cherokee
1986 Jeep Cherokee
1987 Jeep Cherokee
1988 Jeep Cherokee
1989 Jeep Cherokee
1990 Jeep Cherokee
1991 Jeep Cherokee
1992 Jeep Cherokee
1993 Jeep Cherokee
1994 Jeep Cherokee
1995 Jeep Cherokee
1996 Jeep Cherokee
1997 Jeep Cherokee
1998 Jeep Cherokee
1999 Jeep Cherokee

1987 Jeep Wrangler YJ
1988 Jeep Wrangler YJ
1989 Jeep Wrangler YJ
1990 Jeep Wrangler YJ
1991 Jeep Wrangler YJ
1992 Jeep Wrangler YJ
1993 Jeep Wrangler YJ
1994 Jeep Wrangler YJ
1995 Jeep Wrangler YJ
