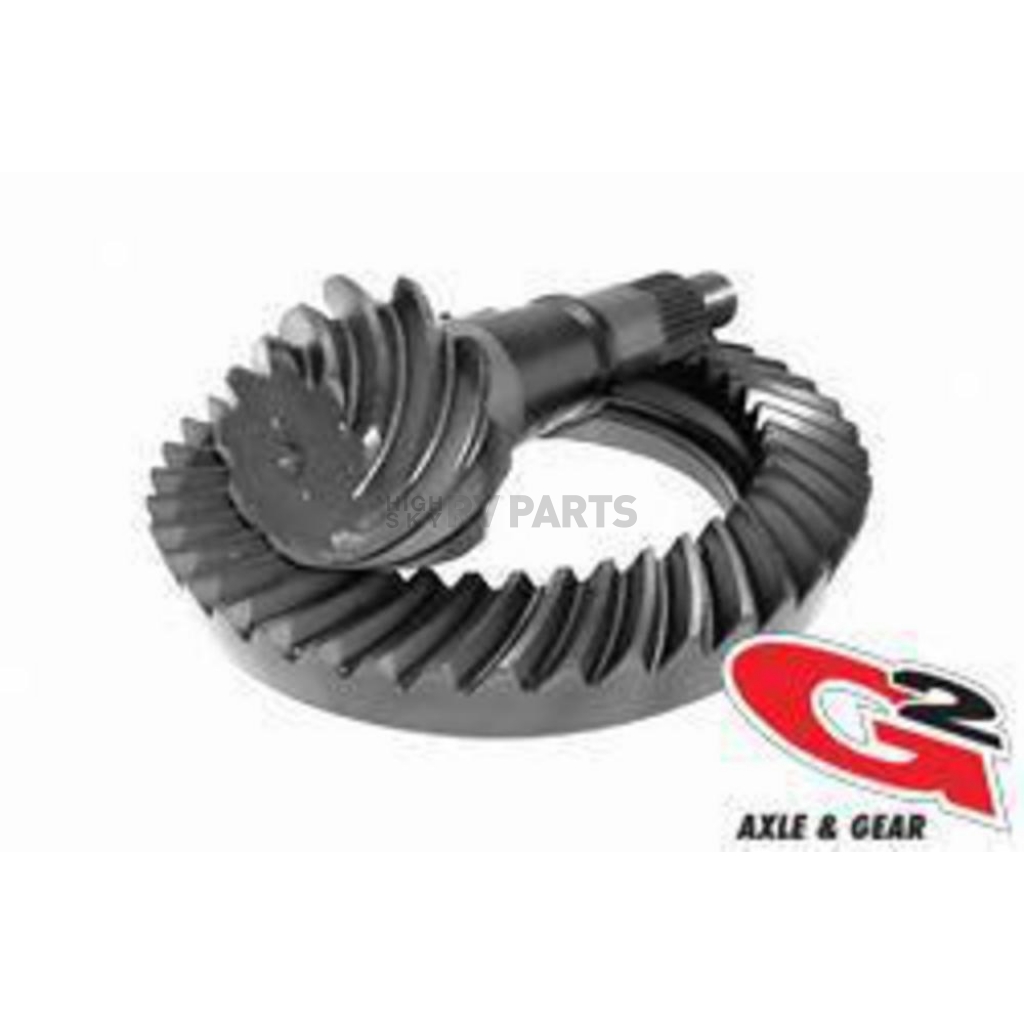

G2 Axle and Gear Differential Ring and Pinion - 2-2010-513

Authorized Dealer
Brand: G2 Axle and Gear G2 Axle and Gear
0 reviews
  • Have a product question? Ask us
  • Part Number: 2-2010-513
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 06
Retail: $508.19
Price: $483.99
You Save: $24.20
Axle Model
 GM 9.5 Inch
Material
 Steel
Number Of Cover Bolts
 14
Pinion Shaft Diameter (IN)
 1.876 Inch
Pinion Spline Count
 30
Ratio
 5.13
Ring Gear Bolts
 12
Ring Gear Diameter (IN)
 9-1/2 Inch
Ring Gear Rotation
 Standard
Share this page

Differential Ring and Pinion; Performance; GM 9.5 Inch; 9.5 Inch Ring Gear Diameter; 5.13 Ratio

MPN: 2-2010-513

Our Performance Series gears are designed for the performance minded driver that requires strength and reliability above all else. They are forged from 8620 gear steel, and heat treated to handle the excess loads of racing and performance driving, while maintaining the ability to be used in a daily driver.

Axle Model: GM 9.5 Inch
Ratio: 5.13
Ring Gear Diameter (IN): 9-1/2 Inch
Pinion Shaft Diameter (IN): 1.876 Inch
Pinion Spline Count: 30
Ring Gear Rotation: Standard
Number Of Cover Bolts: 14
Ring Gear Bolts: 12
Material: Steel

Features

  • High Quality Gear Sets
  • Quiet Operation
  • Large Selection Of Applications And Ratios
  • Consistent Installation Tolerances
  • Limited 10 Year Warranty
Specifications of G2 Axle and Gear Differential Ring and Pinion - 2-2010-513
Axle Model  GM 9.5 Inch
Material  Steel
Number Of Cover Bolts  14
Pinion Shaft Diameter (IN)  1.876 Inch
Pinion Spline Count  30
Ratio  5.13
Ring Gear Bolts  12
Ring Gear Diameter (IN)  9-1/2 Inch
Ring Gear Rotation  Standard

1982 Chevrolet C20
1983 Chevrolet C20
1984 Chevrolet C20
1985 Chevrolet C20
1986 Chevrolet C20

1988 Chevrolet C2500
1989 Chevrolet C2500
1990 Chevrolet C2500
1991 Chevrolet C2500
1992 Chevrolet C2500
1993 Chevrolet C2500
1994 Chevrolet C2500
1995 Chevrolet C2500
1996 Chevrolet C2500
1997 Chevrolet C2500
1998 Chevrolet C2500
1999 Chevrolet C2500

1995 Chevrolet K1500
1996 Chevrolet K1500
1997 Chevrolet K1500
1998 Chevrolet K1500

1982 Chevrolet K20
1983 Chevrolet K20
1984 Chevrolet K20
1985 Chevrolet K20
1986 Chevrolet K20

1988 Chevrolet K2500
1989 Chevrolet K2500
1990 Chevrolet K2500
1991 Chevrolet K2500
1992 Chevrolet K2500
1993 Chevrolet K2500
1994 Chevrolet K2500
1995 Chevrolet K2500
1996 Chevrolet K2500
1997 Chevrolet K2500
1998 Chevrolet K2500
1999 Chevrolet K2500

1987 Chevrolet R20
1988 Chevrolet R20

1989 Chevrolet R2500

2001 Chevrolet Silverado 1500 HD
2002 Chevrolet Silverado 1500 HD
2003 Chevrolet Silverado 1500 HD

2005 Chevrolet Silverado 1500 HD
2006 Chevrolet Silverado 1500 HD

2007 Chevrolet Silverado 1500 HD Classic

1999 Chevrolet Silverado 2500

1987 Chevrolet V20

1982 GMC C2500
1983 GMC C2500
1984 GMC C2500
1985 GMC C2500
1986 GMC C2500

1988 GMC C2500
1989 GMC C2500
1990 GMC C2500
1991 GMC C2500
1992 GMC C2500
1993 GMC C2500
1994 GMC C2500
1995 GMC C2500
1996 GMC C2500
1997 GMC C2500
1998 GMC C2500
1999 GMC C2500

1995 GMC K1500
1996 GMC K1500
1997 GMC K1500
1998 GMC K1500

1982 GMC K2500
1983 GMC K2500
1984 GMC K2500
1985 GMC K2500
1986 GMC K2500

1988 GMC K2500
1989 GMC K2500
1990 GMC K2500
1991 GMC K2500
1992 GMC K2500
1993 GMC K2500
1994 GMC K2500
1995 GMC K2500
1996 GMC K2500
1997 GMC K2500
1998 GMC K2500
1999 GMC K2500

1987 GMC R2500
1988 GMC R2500
1989 GMC R2500

2001 GMC Sierra 1500 HD
2002 GMC Sierra 1500 HD
2003 GMC Sierra 1500 HD

2005 GMC Sierra 1500 HD
2006 GMC Sierra 1500 HD

2007 GMC Sierra 1500 HD Classic

1999 GMC Sierra 2500

1987 GMC V2500

2003 Hummer H2
2004 Hummer H2
2005 Hummer H2
2006 Hummer H2
2007 Hummer H2
2008 Hummer H2
2009 Hummer H2
