G2 Axle and Gear Birfield Axle Shaft Kit - 98-2044-004

Brand: G2 Axle and Gear G2 Axle and Gear
  • Have a product question? Ask us
  • Part Number: 98-2044-004
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 20
Retail: $1,056.29
Price: $1,005.99
You Save: $50.30
Axle Model
 Birfield
Includes Seal
 No
Includes Wheel Bearing
 No
Inner Spline Count
 30
Left Side Length (IN)
 31-1/2 Inch
Outer Stub Length
 9.60 Inch
Outer Stub Spline
 30
Right Side Length (IN)
 17.31 Inch
Share this page

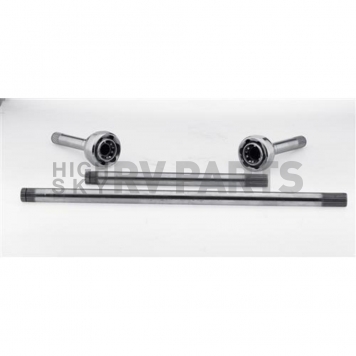

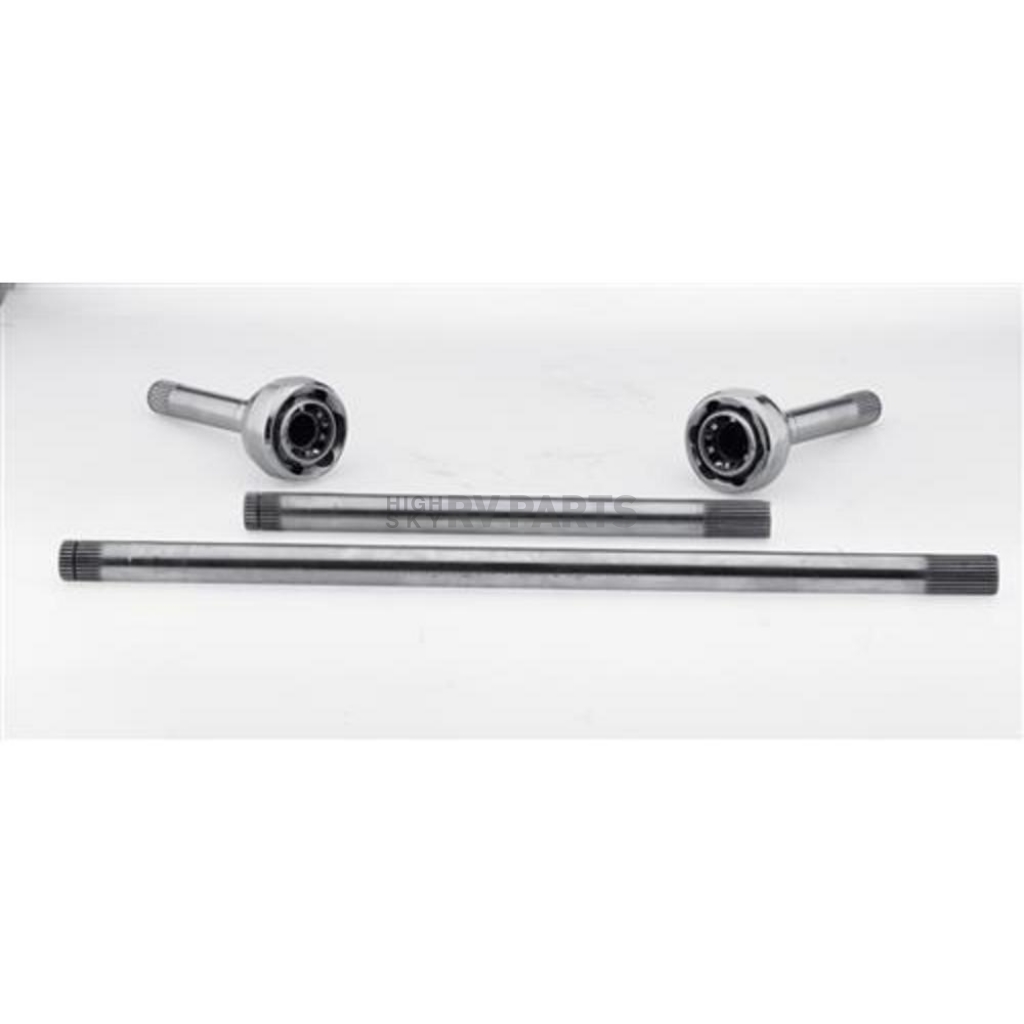

Axle Shaft Kit; Birfield Type; 30 Spline Inner; 31.50 Inch Left Side Length; 17.31 Inch Right Side Length; 9.60 Inch Outer Stub Length; 30 Spline Outer Stub; With Chromoly Left And Right Axles/ Left And Right Stubs

MPN: 98-2044-004

Anyone that is familiar with solid axle Toyotas knows that the factory Birfield joint is the weak link in their drive train. G2 is proud to offer heavy duty Birfield constant velocity axles that address that weakness. Forged from high strength 4340 chromoly, these axles are heat treated for maximum torsional strength, feature a stronger spur gear and are designed to handle the added load resulting from oversized tires and locking differentials. They are available with the stock 27 spline or 30 Big Spline option.

Axle Model: Birfield
Inner Spline Count: 30
Left Side Length (IN): 31-1/2 Inch
Right Side Length (IN): 17.31 Inch
Outer Stub Spline: 30
Outer Stub Length: 9.60 Inch
Includes Wheel Bearing: No
Includes Seal: No

Features

  • Heat Treated For Maximum Torsional Strength
  • Stronger Spur Gear
  • Big Spline Option On Select Applications
  • Limited 10 Year Warranty
Specifications of G2 Axle and Gear Birfield Axle Shaft Kit - 98-2044-004
Axle Model  Birfield
Includes Seal  No
Includes Wheel Bearing  No
Inner Spline Count  30
Left Side Length (IN)  31-1/2 Inch
Outer Stub Length  9.60 Inch
Outer Stub Spline  30
Right Side Length (IN)  17.31 Inch

1981 Toyota Land Cruiser
1982 Toyota Land Cruiser
1983 Toyota Land Cruiser
1984 Toyota Land Cruiser
1985 Toyota Land Cruiser
1986 Toyota Land Cruiser
1987 Toyota Land Cruiser
