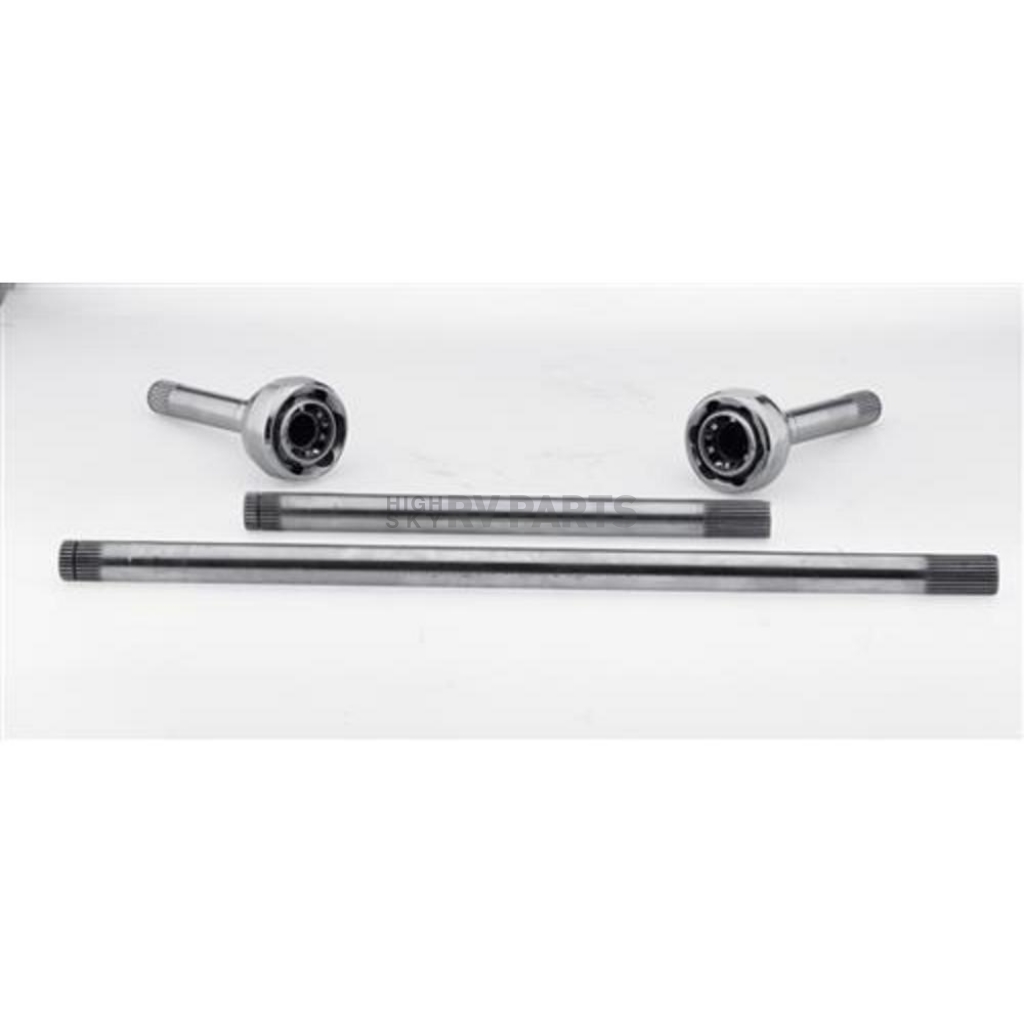

G2 Axle and Gear Toyota Axle Shaft Kit - 98-2041-001
Axle Shaft Kit; Toyota; 27 Inner Spline Count; 31.50 Inch Left; 15.25 Inch Right Side; 9.60 Outer Stub Length; 30 Outer Spline
MPN: 98-2041-001
Front axles are forged from high tensile strength 4340 alloy with particular attention paid to key weak areas of the original design. Additional material is added to the yoke area surrounding the u-joint cap to prevent distortion leading to damaged bearings. The axles are machined to accept full circle clips as an added measure to prevent the loss of bearing caps. Our axles also have a dual heat treat process that allows optimal torsional flex while adding strength to the yoke area that is prone to distortion. All axle kits come as an assembly with the u-joint already pressed in for easy assembly.Features
- Assembled Using Spicer Cold Forged U-Joints
- Forged 4340 Chromalloy
- Dual Heat Treated
- Axle Kits Come Assembled And Ready To Install
- Limited 10 Year Warranty
Specifications of G2 Axle and Gear Toyota Axle Shaft Kit - 98-2041-001 | |
Axle Model | Toyota |
Inner Spline Count | 27 |
Left Side Length (IN) | 31-1/2 Inch |
Outer Stub Length | 9.60 Inch |
Outer Stub Spline | 30 |
Right Side Length (IN) | 15-1/4 Inch |
1980 Toyota Pickup
1981 Toyota Pickup
1982 Toyota Pickup
1983 Toyota Pickup
1984 Toyota Pickup
1985 Toyota Pickup
