G2 Axle and Gear Dana 60 Axle Shaft Kit - 98-2034-003

Authorized Dealer
Brand: G2 Axle and Gear G2 Axle and Gear
0 reviews
  • Have a product question? Ask us
  • Part Number: 98-2034-003
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 25
Retail: $1,559.24
Price: $1,484.99
You Save: $74.25
Axle Model
 Dana 60
Inner Spline Count
 35
Left Side Length (IN)
 18.66 Inch
Outer Stub Length
 11.4 Inch
Outer Stub Spline
 35
Right Side Length (IN)
 34.56 Inch
Share this page

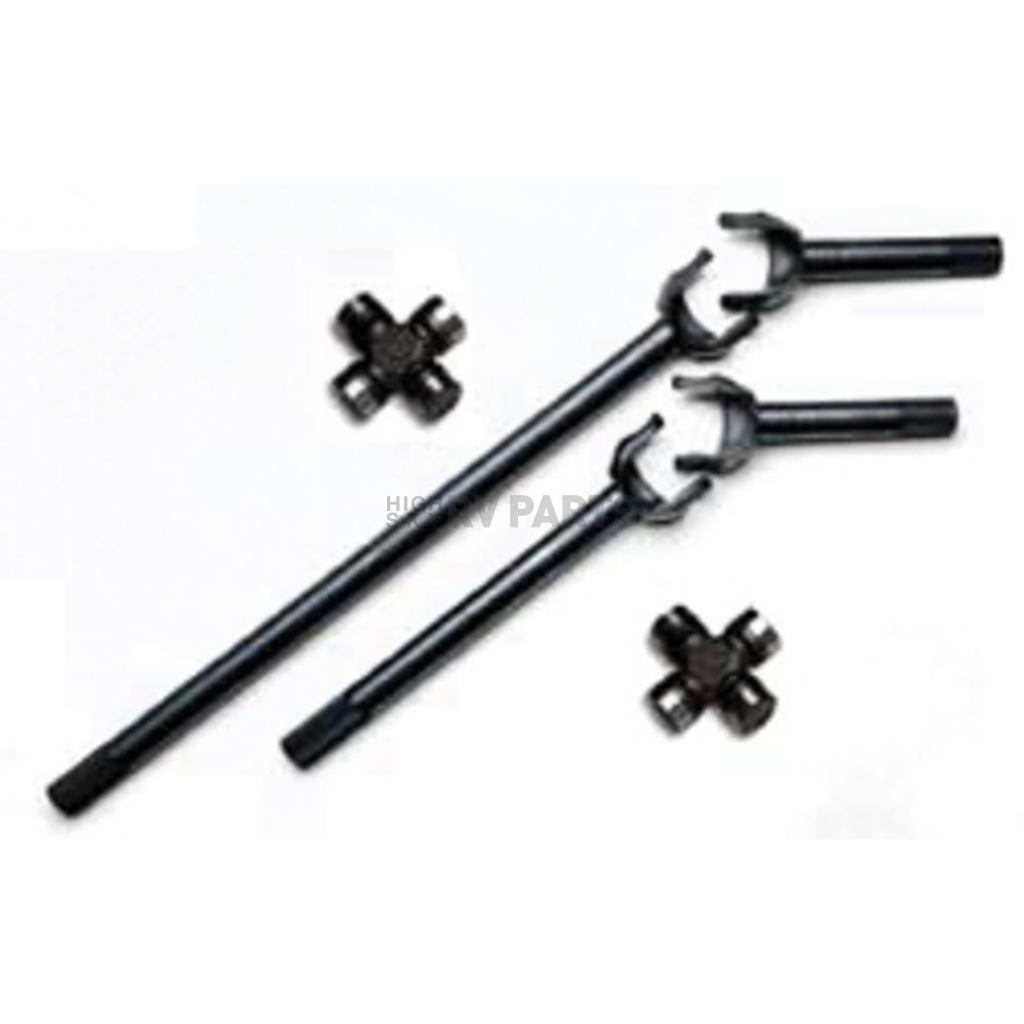

Axle Shaft Kit; DANA 60; Chromoly; 35 Spline Inner Stub; 18.66 Inch Left Side Length; 34.56 Inch Right Side Length; 11.40 Inch Outer Stub Length; 35 Spline Outer Stub; Without Hub Assembly; With 2 Axle Shafts/ 2 Stubs/ U Joints

MPN: 98-2034-003

Front axles are forged from high tensile strength 4340 alloy with particular attention paid to key weak areas of the original design. Additional material is added to the yoke area surrounding the u-joint cap to prevent distortion leading to damaged bearings. The axles are machined to accept full circle clips as an added measure to prevent the loss of bearing caps. Our axles also have a dual heat treat process that allows optimal torsional flex while adding strength to the yoke area that is prone to distortion. All axle kits come as an assembly with the u-joint already pressed in for easy assembly.

Axle Model: Dana 60
Inner Spline Count: 35
Left Side Length (IN): 18.66 Inch
Right Side Length (IN): 34.56 Inch
Outer Stub Spline: 35
Outer Stub Length: 11.4 Inch

Features

  • Assembled Using Spicer Cold Forged U-Joints
  • Forged 4340 Chromalloy
  • Dual Heat Treated
  • Axle Kits Come Assembled And Ready To Install
  • Limited 10 Year Warranty
Specifications of G2 Axle and Gear Dana 60 Axle Shaft Kit - 98-2034-003
Axle Model  Dana 60
Inner Spline Count  35
Left Side Length (IN)  18.66 Inch
Outer Stub Length  11.4 Inch
Outer Stub Spline  35
Right Side Length (IN)  34.56 Inch

1978 Ford F-250
1979 Ford F-250

1978 Ford F-350
1979 Ford F-350
