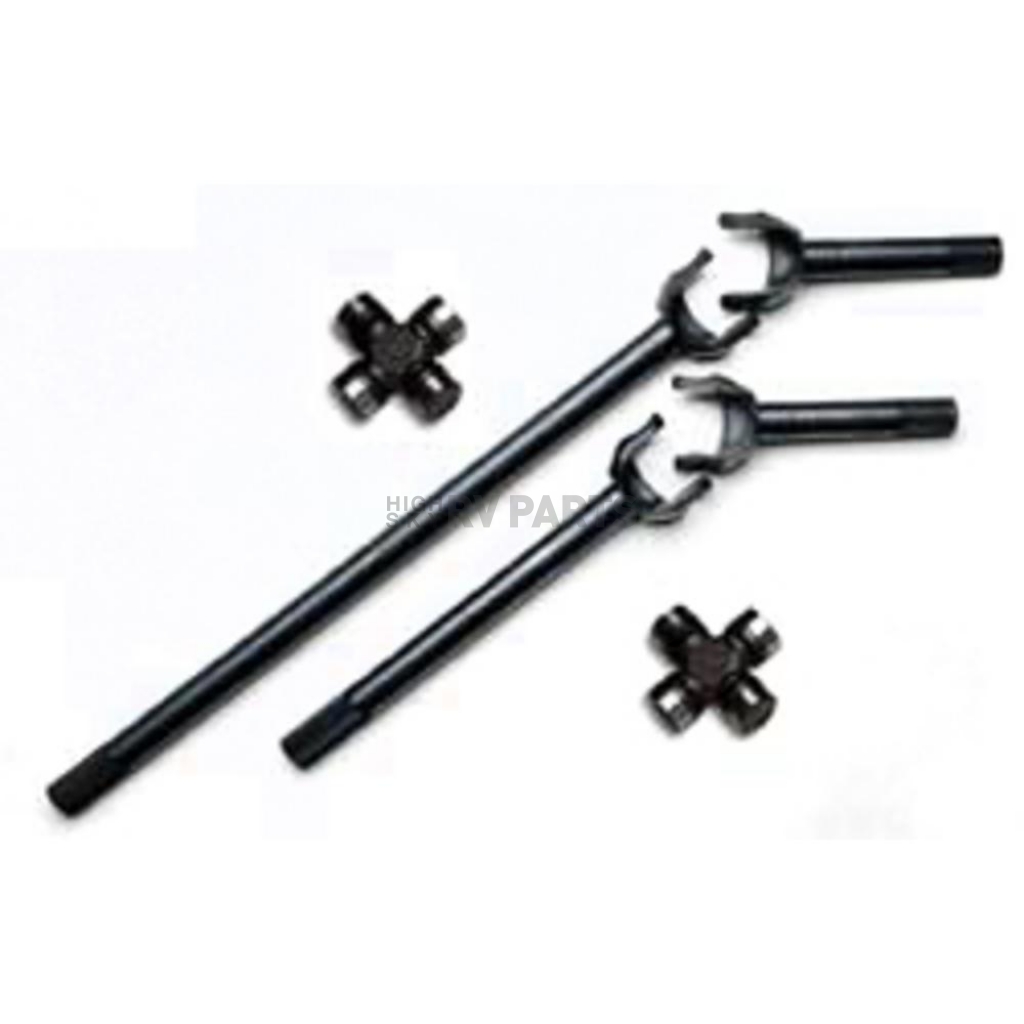

G2 Axle and Gear Dana 60 Axle Shaft Kit - 98-2034-001
Axle Shaft Kit; DANA 60; Chromoly; 35 Spline Inner Stub; 35.10 Inch Left Side Length; 17.67 Inch Right Side Length; 12.00 Inch Outer Stub Length; 35 Spline Outer Stub; Without Hub Assembly; With 2 Axle Shafts/ 2 Stubs/ U Joints
MPN: 98-2034-001
Front axles are forged from high tensile strength 4340 alloy with particular attention paid to key weak areas of the original design. Additional material is added to the yoke area surrounding the u-joint cap to prevent distortion leading to damaged bearings. The axles are machined to accept full circle clips as an added measure to prevent the loss of bearing caps. Our axles also have a dual heat treat process that allows optimal torsional flex while adding strength to the yoke area that is prone to distortion. All axle kits come as an assembly with the u-joint already pressed in for easy assembly.Features
- Assembled Using Spicer Cold Forged U-Joints
- Forged 4340 Chromalloy
- Dual Heat Treated
- Axle Kits Come Assembled And Ready To Install
- Limited 10 Year Warranty
Specifications of G2 Axle and Gear Dana 60 Axle Shaft Kit - 98-2034-001 | |
Axle Model | Dana 60 |
Inner Spline Count | 35 |
Left Side Length (IN) | 35.1 Inch |
Outer Stub Length | 12 Inch |
Outer Stub Spline | 35 |
Right Side Length (IN) | 17.67 Inch |
1978 Chevrolet K30
1979 Chevrolet K30
1980 Chevrolet K30
1981 Chevrolet K30
1982 Chevrolet K30
1983 Chevrolet K30
1984 Chevrolet K30
1985 Chevrolet K30
1986 Chevrolet K30
1989 Chevrolet K3500
1990 Chevrolet K3500
1991 Chevrolet K3500
1988 Chevrolet V30
1990 Chevrolet V3500
1991 Chevrolet V3500
1978 GMC K35
1980 GMC K3500
1981 GMC K3500
1982 GMC K3500
1983 GMC K3500
1984 GMC K3500
1985 GMC K3500
1986 GMC K3500
1989 GMC K3500
1990 GMC K3500
1991 GMC K3500
1988 GMC V3500
1989 GMC V3500
1990 GMC V3500
1991 GMC V3500
