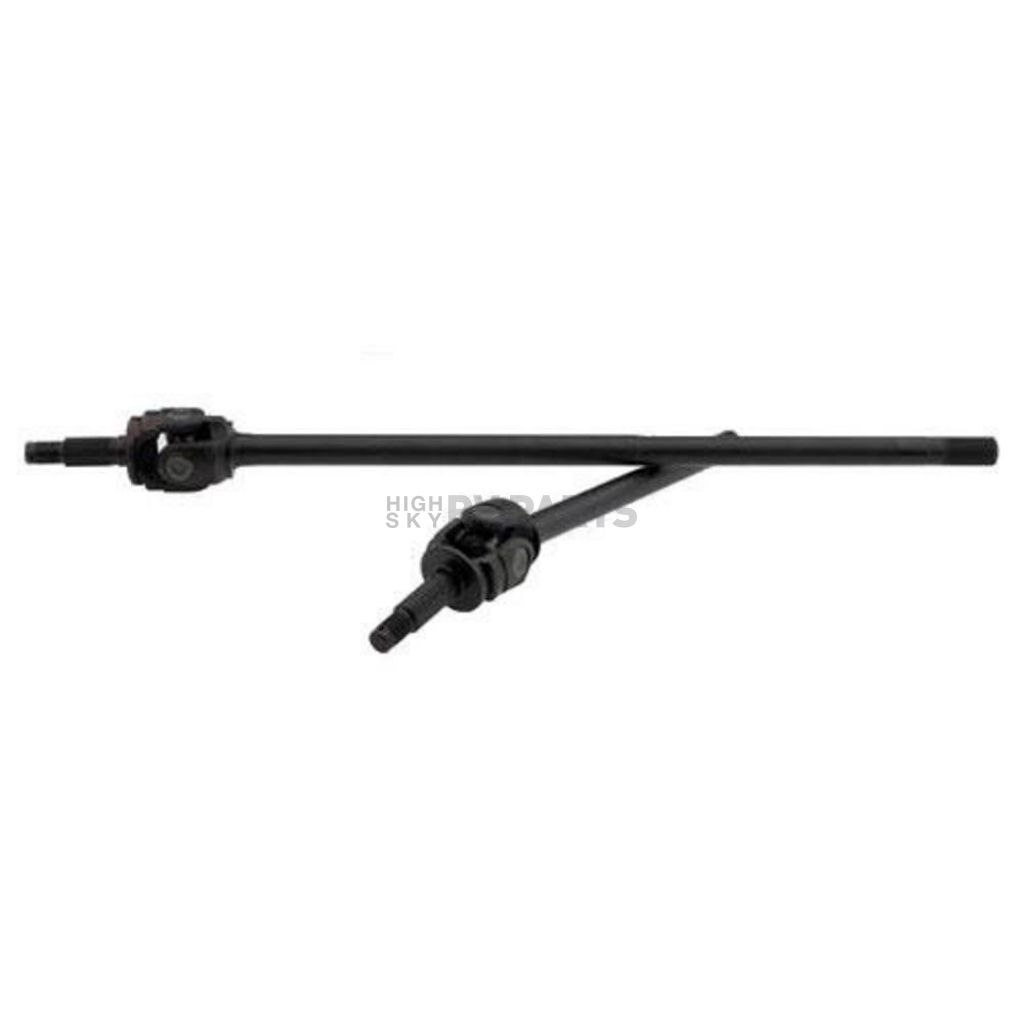

G2 Axle and Gear Dana 44 Axle Shaft Kit - 98-2033-005

Authorized Dealer
Brand: G2 Axle and Gear G2 Axle and Gear
0 reviews
  • Have a product question? Ask us
  • Part Number: 98-2033-005
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 24
Retail: $1,191.74
Price: $1,134.99
You Save: $56.75
Axle Model
 Dana 44
Inner Spline Count
 30
Left Side Length (IN)
 15.8 Inch
Outer Stub Length
 9.94 Inch
Outer Stub Spline
 19
Right Side Length (IN)
 32.12 Inch
Share this page

Axle Shaft Kit; 30 Inner Spline; 15.8 Inch Left Side Length; 32.12 Inch Right Side Length; 9.94 Inch Outer Stub Length; 19 Outer Stub Spline; With Right/Left Axles/ U-Joints/ Full Circle Clips

MPN: 98-2033-005

Front axles are forged from high tensile strength 4340 alloy with particular attention paid to key weak areas of the original design. Additional material is added to the yoke area surrounding the u-joint cap to prevent distortion leading to damaged bearings. The axles are machined to accept full circle clips as an added measure to prevent the loss of bearing caps. Our axles also have a dual heat treat process that allows optimal torsional flex while adding strength to the yoke area that is prone to distortion. All axle kits come as an assembly with the u-joint already pressed in for easy assembly.

Axle Model: Dana 44
Inner Spline Count: 30
Left Side Length (IN): 15.8 Inch
Right Side Length (IN): 32.12 Inch
Outer Stub Spline: 19
Outer Stub Length: 9.94 Inch

Features

  • Assembled Using Spicer Cold Forged U-Joints
  • Forged 4340 Chromalloy
  • Dual Heat Treated
  • Axle Kits Come Assembled And Ready To Install
  • Limited 10 Year Warranty
Specifications of G2 Axle and Gear Dana 44 Axle Shaft Kit - 98-2033-005
Axle Model  Dana 44
Inner Spline Count  30
Left Side Length (IN)  15.8 Inch
Outer Stub Length  9.94 Inch
Outer Stub Spline  19
Right Side Length (IN)  32.12 Inch

1980 Jeep Wagoneer
1981 Jeep Wagoneer
1982 Jeep Wagoneer
1983 Jeep Wagoneer
1984 Jeep Wagoneer
1985 Jeep Wagoneer
1986 Jeep Wagoneer
1987 Jeep Wagoneer
1988 Jeep Wagoneer
1989 Jeep Wagoneer
1990 Jeep Wagoneer
