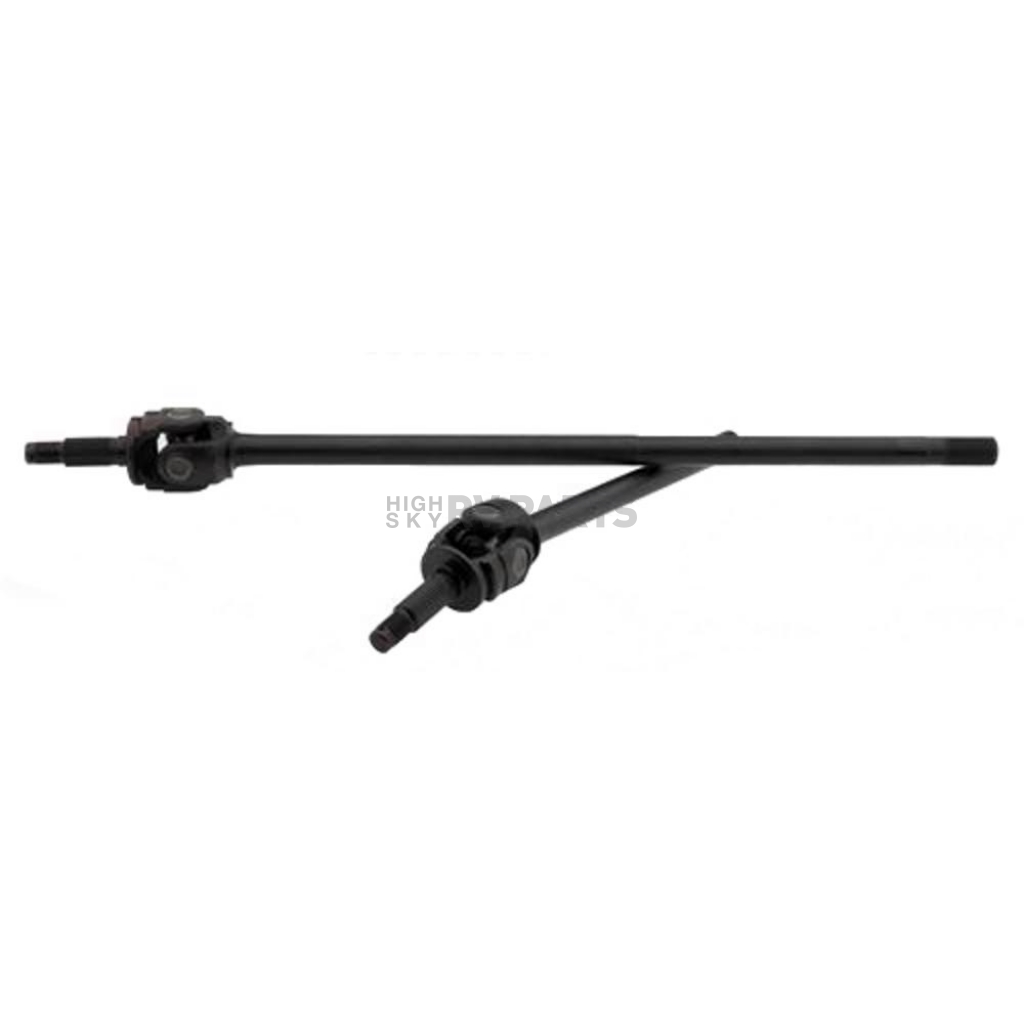

G2 Axle and Gear Dana 44 Axle Shaft Kit - 98-2033-002
Axle Shaft Kit; 30 Inner Spline; 18.91 Inch Left Side Length; 33.91 Inch Right Side Length; 9.72 Inch Outer Stub Length; 19 Outer Stub Spline; With Right/Left Axles/ U-Joints/ Full Circle Clips
MPN: 98-2033-002
Front axles are forged from high tensile strength 4340 alloy with particular attention paid to key weak areas of the original design. Additional material is added to the yoke area surrounding the u-joint cap to prevent distortion leading to damaged bearings. The axles are machined to accept full circle clips as an added measure to prevent the loss of bearing caps. Our axles also have a dual heat treat process that allows optimal torsional flex while adding strength to the yoke area that is prone to distortion. All axle kits come as an assembly with the u-joint already pressed in for easy assembly.Features
- Assembled Using Spicer Cold Forged U-Joints
- Forged 4340 Chromalloy
- Dual Heat Treated
- Axle Kits Come Assembled And Ready To Install
- Limited 10 Year Warranty
Specifications of G2 Axle and Gear Dana 44 Axle Shaft Kit - 98-2033-002 | |
Axle Model | Dana 44 |
Inner Spline Count | 30 |
Left Side Length (IN) | 18.91 Inch |
Outer Stub Length | 9.72 Inch |
Outer Stub Spline | 19 |
Right Side Length (IN) | 33.91 Inch |
1979 Ford Bronco
1976 Ford F-100
1977 Ford F-100
1978 Ford F-100
1979 Ford F-100
1976 Ford F-150
1977 Ford F-150
1978 Ford F-150
1979 Ford F-150
