G2 Axle and Gear Dana 30 Axle Shaft Kit - 98-2031-002

Authorized Dealer
Brand: G2 Axle and Gear G2 Axle and Gear
0 reviews
  • Have a product question? Ask us
  • Part Number: 98-2031-002
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 24
Retail: $1,422.74
Price: $1,354.99
You Save: $67.75
Axle Model
 Dana 30
Inner Spline Count
 30
Left Side Length (IN)
 16-1/2 Inch
Outer Stub Length
 6.11 Inch
Outer Stub Spline
 27
Right Side Length (IN)
 32.31 Inch
Share this page

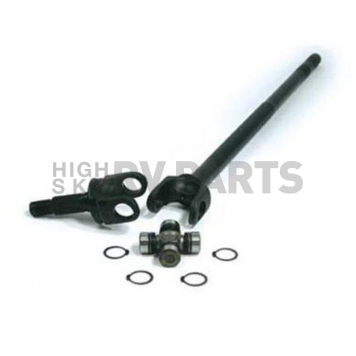

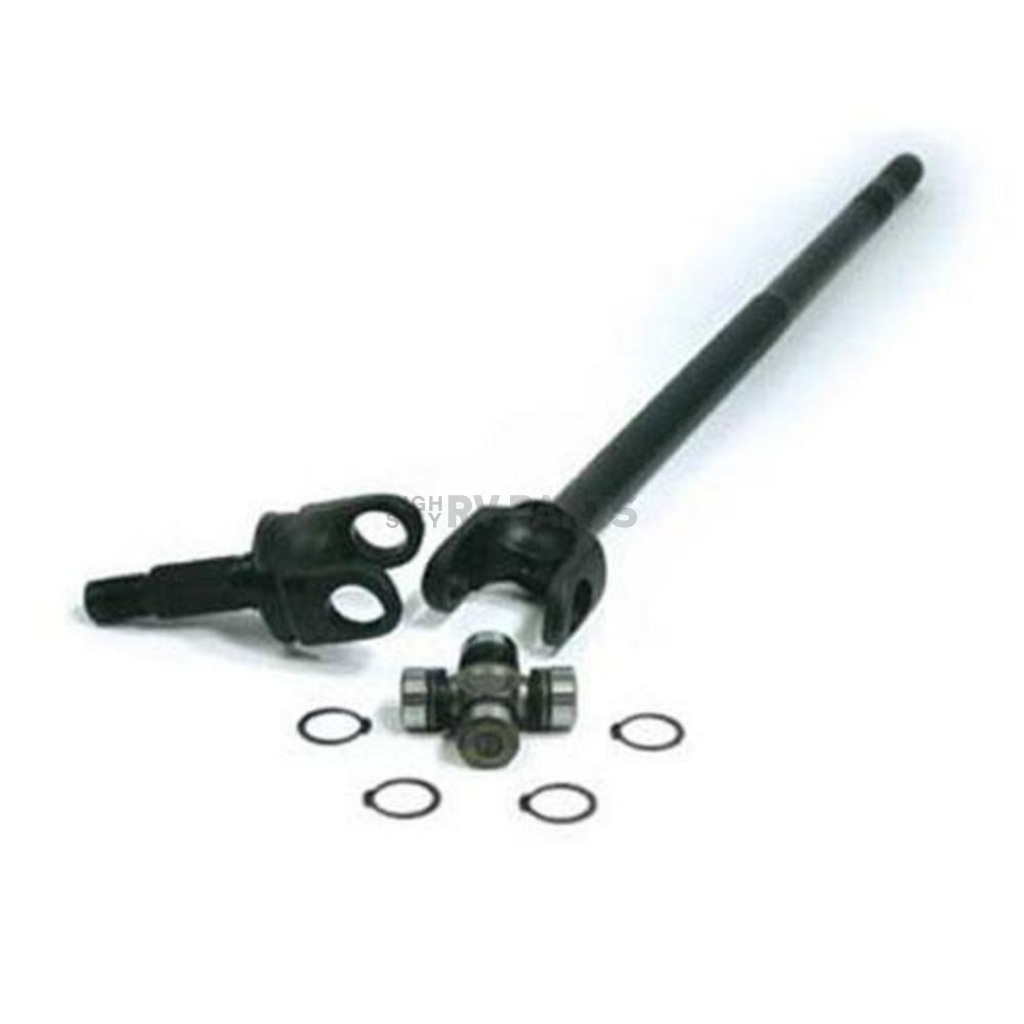

Axle Shaft Kit; 30 Inner Spline; 16.5 Inch Left Side Length; 32.31 Inch Right Side Length; 6.11 Inch Outer Stub Length; 27 Outer Stub Spline; With Right/Left Axles/ U-Joints/ Full Circle Clips/ Disconnect Eliminator

MPN: 98-2031-002

Front axles are forged from high tensile strength 4340 alloy with particular attention paid to key weak areas of the original design. Additional material is added to the yoke area surrounding the u-joint cap to prevent distortion leading to damaged bearings. The axles are machined to accept full circle clips as an added measure to prevent the loss of bearing caps. Our axles also have a dual heat treat process that allows optimal torsional flex while adding strength to the yoke area that is prone to distortion. All axle kits come as an assembly with the u-joint already pressed in for easy assembly.

Axle Model: Dana 30
Inner Spline Count: 30
Left Side Length (IN): 16-1/2 Inch
Right Side Length (IN): 32.31 Inch
Outer Stub Spline: 27
Outer Stub Length: 6.11 Inch

Features

  • Assembled Using Spicer Cold Forged U-Joints
  • Forged 4340 Chromalloy
  • Dual Heat Treated
  • Axle Kits Come Assembled And Ready To Install
  • Limited 10 Year Warranty
Specifications of G2 Axle and Gear Dana 30 Axle Shaft Kit - 98-2031-002
Axle Model  Dana 30
Inner Spline Count  30
Left Side Length (IN)  16-1/2 Inch
Outer Stub Length  6.11 Inch
Outer Stub Spline  27
Right Side Length (IN)  32.31 Inch

1984 Jeep Cherokee
1985 Jeep Cherokee
1986 Jeep Cherokee
1987 Jeep Cherokee
1988 Jeep Cherokee
1989 Jeep Cherokee
1990 Jeep Cherokee
1991 Jeep Cherokee
1992 Jeep Cherokee
1993 Jeep Cherokee
1994 Jeep Cherokee
1995 Jeep Cherokee
1996 Jeep Cherokee
1997 Jeep Cherokee
1998 Jeep Cherokee
1999 Jeep Cherokee
2000 Jeep Cherokee
2001 Jeep Cherokee

1997 Jeep Wrangler TJ
1998 Jeep Wrangler TJ
1999 Jeep Wrangler TJ
2000 Jeep Wrangler TJ
2001 Jeep Wrangler TJ
2002 Jeep Wrangler TJ
2003 Jeep Wrangler TJ
2004 Jeep Wrangler TJ
2005 Jeep Wrangler TJ
2006 Jeep Wrangler TJ

1987 Jeep Wrangler YJ
1988 Jeep Wrangler YJ
1989 Jeep Wrangler YJ
1990 Jeep Wrangler YJ
1991 Jeep Wrangler YJ
1992 Jeep Wrangler YJ
1993 Jeep Wrangler YJ
1994 Jeep Wrangler YJ
1995 Jeep Wrangler YJ
