G2 Axle and Gear Dana 60 Axle Shaft - 97-2034-002

Name: G2 Axle and Gear Dana 60 Axle Shaft - 97-2034-002
Brand: G2 Axle and Gear
SKU: 97-2034-002
Price: 321.99 USD
Availability: InStock

Authorized Dealer

Brand:

G2 Axle and Gear

0 reviews

Have a product question? Ask us
Part Number: 97-2034-002
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 25

Retail: $338.09

Price: $321.99

You Save: $16.10

Carrier Type

Dana 60

Includes Bearings

Includes Seals

Includes Wheel Studs

Inner Axle Spline Count

Length (IN)

9.39 Inch

Material

Steel

Share this page

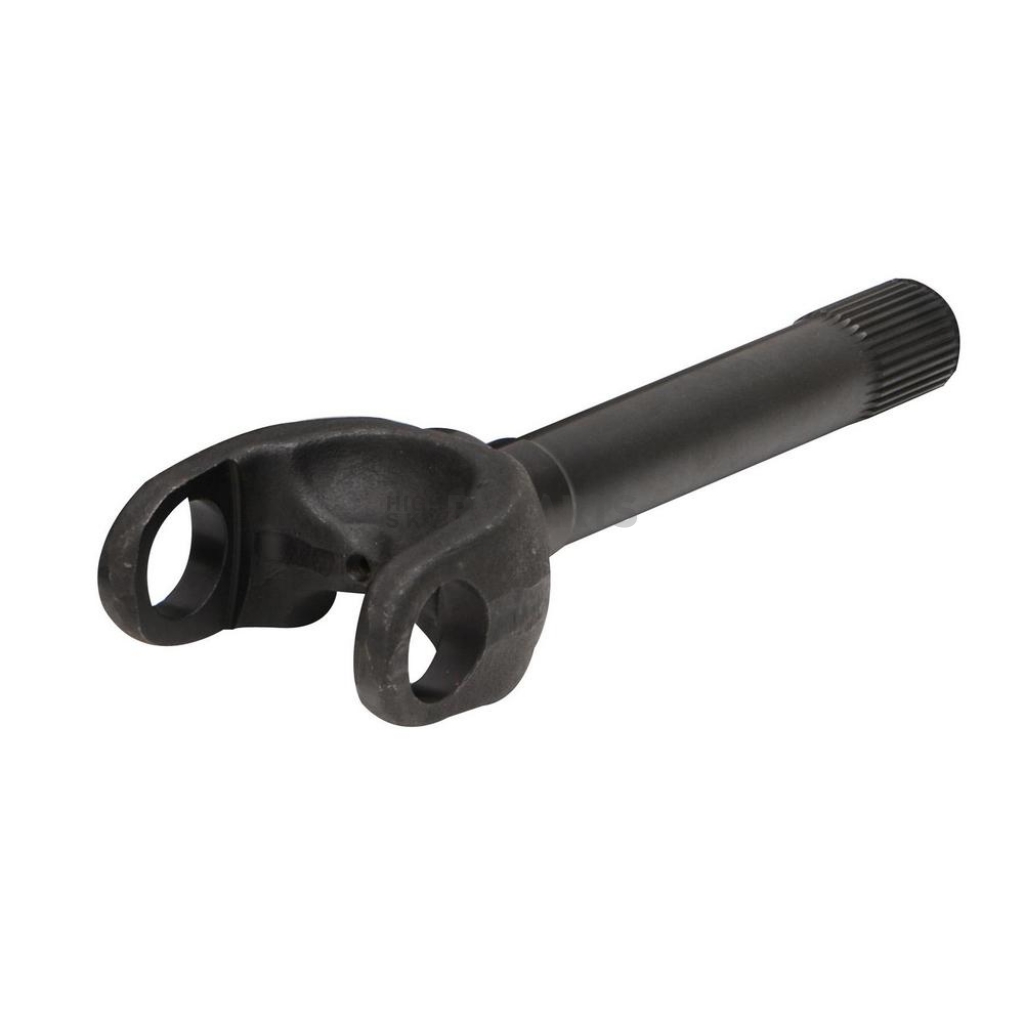

Axle Shaft; Dana 60; 9.39 Inches Long; 35 Spline; Single

MPN: 97-2034-002

Front axles are forged from high tensile strength 4340 alloy with particular attention paid to key weak areas of the original design. Additional material is added to the yoke area surrounding the u-joint cap to prevent distortion leading to damaged bearings. The axles are machined to accept full circle clips as an added measure to prevent the loss of bearing caps. Our axles also have a dual heat treat process that allows optimal torsional flex while adding strength to the yoke area that is prone to distortion. All axle kits come as an assembly with the u-joint already pressed in for easy assembly.

Carrier Type: Dana 60

Length (IN): 9.39 Inch

Inner Axle Spline Count: 35

Material: Steel

Includes Bearings: No

Includes Seals: No

Includes Wheel Studs: No

Features

Added Material In Critical Areas. Recessed For Increased Turning Radius
Machined For Full Circle Clip
Heat Treated For Strength
Big Spline Options. Tapered Design For Optimal Torsional Strength
Limited 10 Year Warranty

Specifications of G2 Axle and Gear Dana 60 Axle Shaft - 97-2034-002
Carrier Type	Dana 60
Includes Bearings	No
Includes Seals	No
Includes Wheel Studs	No
Inner Axle Spline Count	35
Length (IN)	9.39 Inch
Material	Steel
