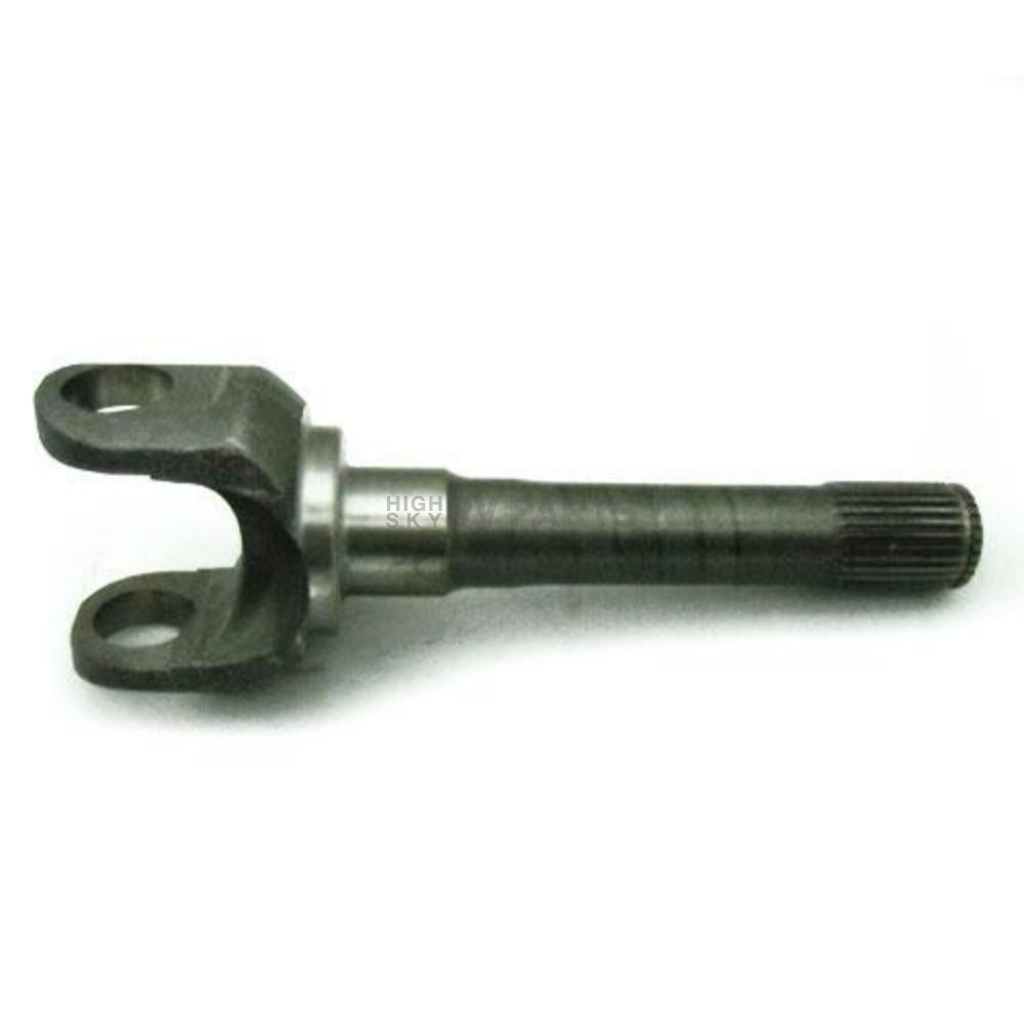

G2 Axle and Gear Dana 30/ 44 Axle Shaft - 97-2032-001

Axle Shaft; Dana 30/44; 8.72 Inches Long; 27 Spline; Single

MPN: 97-2032-001

Front axles are forged from high tensile strength 4340 alloy with particular attention paid to key weak areas of the original design. Additional material is added to the yoke area surrounding the u-joint cap to prevent distortion leading to damaged bearings. The axles are machined to accept full circle clips as an added measure to prevent the loss of bearing caps. Our axles also have a dual heat treat process that allows optimal torsional flex while adding strength to the yoke area that is prone to distortion. All axle kits come as an assembly with the u-joint already pressed in for easy assembly.

Features

• Added Material In Critical Areas. Recessed For Increased Turning Radius
• Machined For Full Circle Clip
• Heat Treated For Strength
• Big Spline Options. Tapered Design For Optimal Torsional Strength
• Limited 10 Year Warranty
