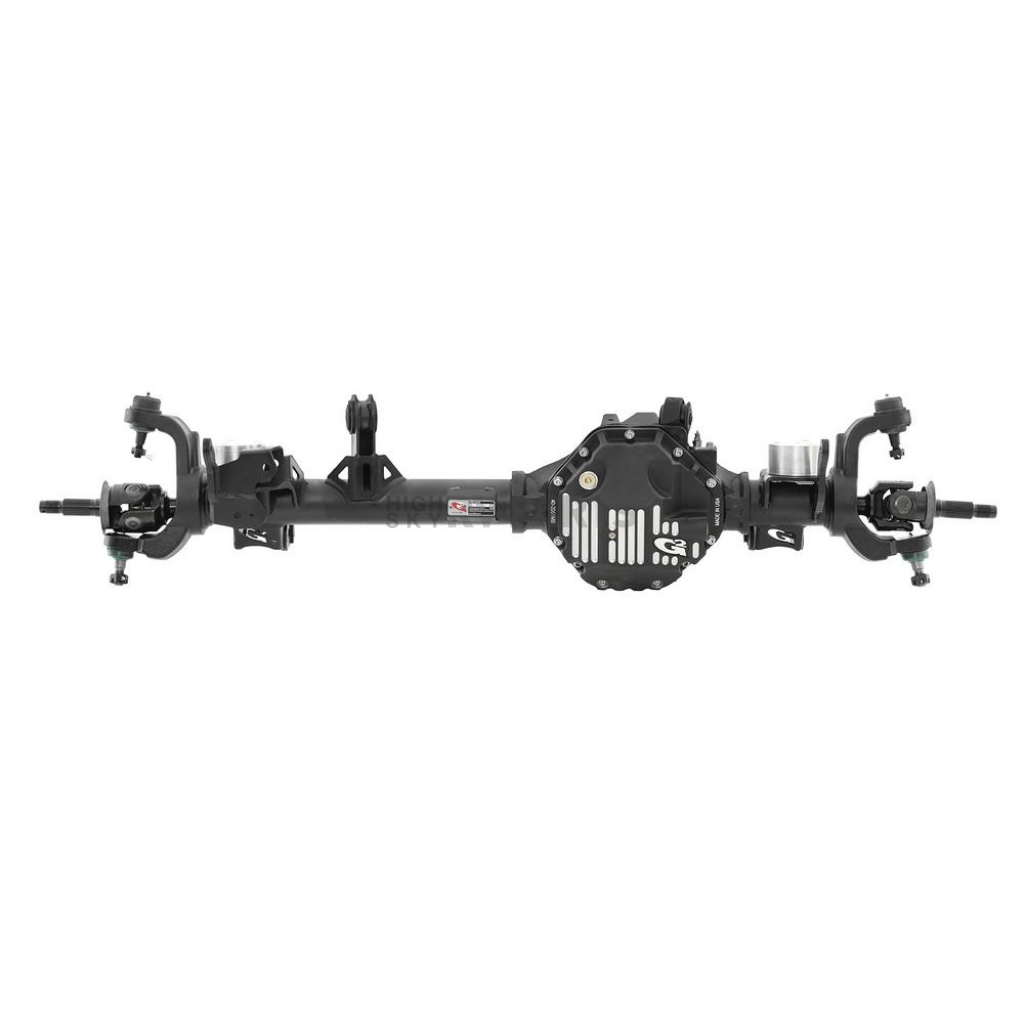

G2 Axle and Gear Core 44 Axle Complete Assembly - C4TSFS456EC0

Axle Complete Assembly; CORE ® 44; Dana 44; Without Brake Kit; 30 Spline; 4.56 Ratio; Eaton E-Locker; SAE Bearings; Chromoly Axles; With Lower Control Arm Skid Plates/ Forged Bearing Caps/ Spanner Nuts/ Aluminum Differential Cover/ JK Ring And Pinion/ Axle Bearings/ Reinforcement Gussets/ Track Bar Bracket

MPN: C4TSFS456EC0

CORE 44 housings accept the latest generation Dana 44 gear design, with a larger diameter ring gear and bigger pinion shaft to withstand hard off-road use. Our housings feature forged bearing caps and a unique G-lock adjuster nut system to set backlash and carrier bearing preload. CORE 44 axles use additional ribbing on the cast center section and 3 Inch Diameter, 5/16 wall DOM axle tubes with forged inner Cs for use with tall, aggressive tires. All brackets are designed around stock mounting points, and are laser cut and CNC formed from 3/8-inch steel for added strength. We have also gusseted and reinforced any weak points to prevent damage to the brackets and finish the housing in a UV-stable black powdercoat. The CORE 44 comes fully assembled with your choice of gear ratio and locker.

Features

• Heavy Duty Forged Bearing Caps
• Utilizes New Generation JK 44 Ring And Pinion
• Heat Treated Aluminum Diff Cover With Cooling Fins
• Limited 90 Day Warranty
