Frostbite by Holley Radiator FB148
Frostbite by Holley Radiator

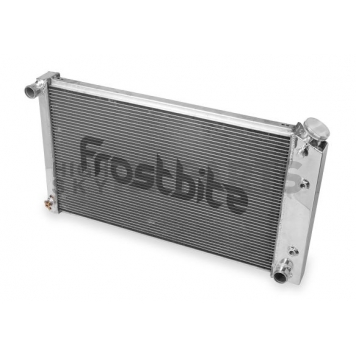

Radiator; 18-1/2 Inch x 27-1/2 Inch Overall Dimension; 17 Inch x 23 Inch Core Dimension; Three Core Rows; Crossflow; Aluminum Core And Tanks; 1-1/2 Inch Drivers Side Inlet x 1-3/4 Inch Passenger Side Outlet; With Radiator Cap/ Filler Neck And Petcock
MPN: FB148
Features
- 100 Percent TIG Welded (Brazed) Seams
- Aircraft Quality Aluminum Core, Fittings And Tanks

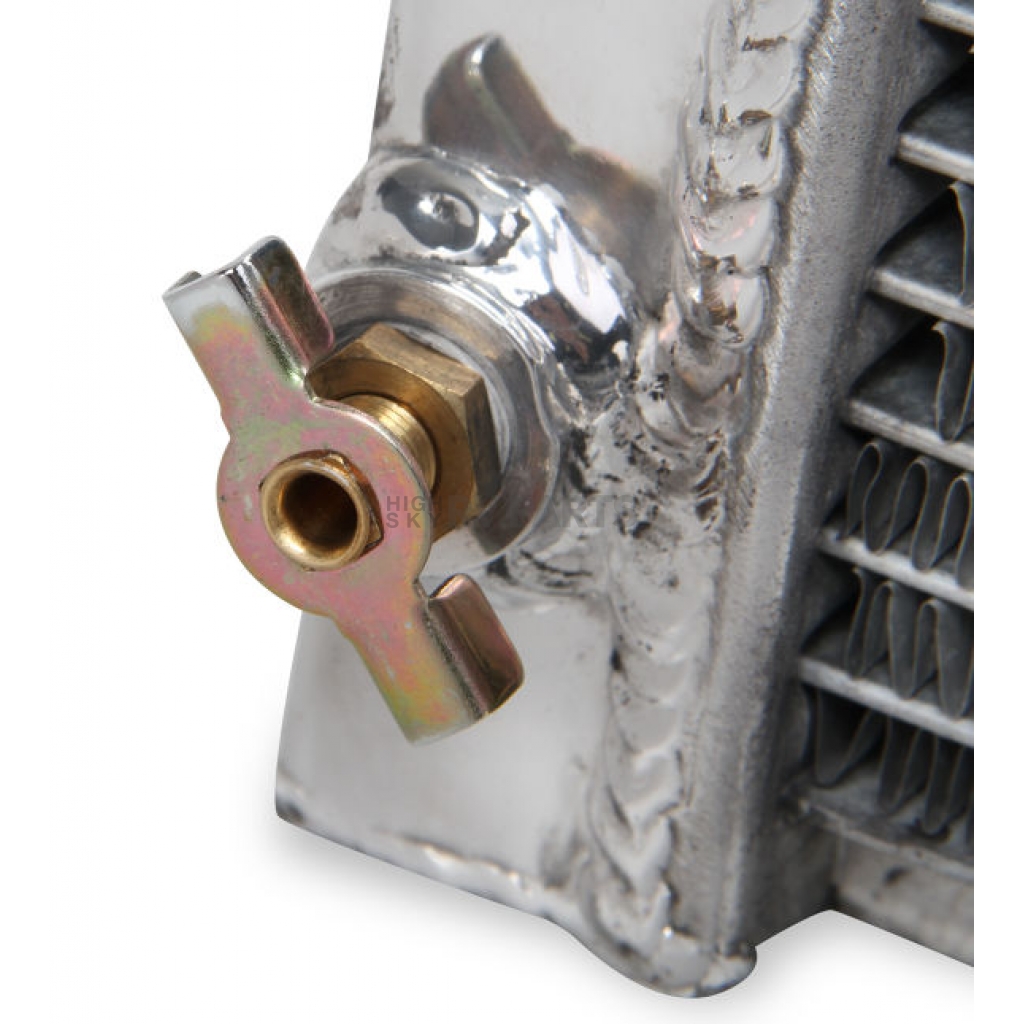

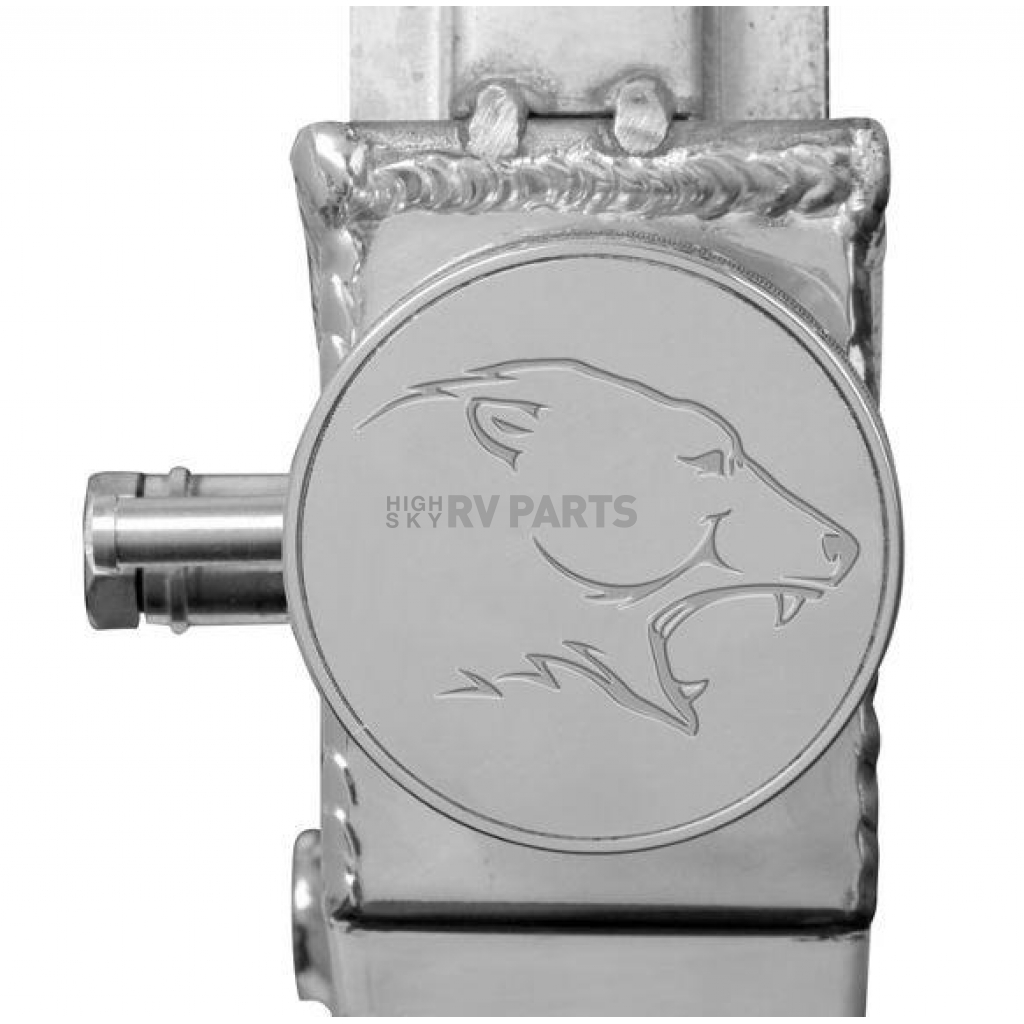

- Billet Aluminum Filler Neck And OEM Style Brass Petcock
- More Cooling Fins Per Inch For More Efficient Cooling
- Polished Top And Tanks For Custom Show Appearance
- Limited 1 Year Warranty
Specifications of Frostbite by Holley Radiator FB148 | |
Color | Silver |
Core Height (IN) | 23 Inch |
Core Length (IN) | 17 Inch |
Core Material | Aluminum |
Core Rows | Three 11/16 Inch Tube |
Finish | Polished |
Flow Direction | Crossflow |
Includes Fittings | Yes |
Includes Mounting Hardware | No |
Inlet Hose Location | Drivers Side |
Inlet Size (IN) | 1-1/2 Inch |
Outlet Hose Location | Passenger Side |
Outlet Size (IN) | 1-3/4 Inch |
Overall Height (IN) | 27-1/2 Inch |
Overall Length (IN) | 18-1/2 Inch |
Tank Material | Aluminum |
With Radiator Cap | Yes |
With Transmission Cooler | Yes |
1968 Chevrolet Camaro
1969 Chevrolet Camaro
1968 Pontiac Firebird
1969 Pontiac Firebird
