Frostbite by Holley Radiator FB140
Frostbite by Holley Radiator

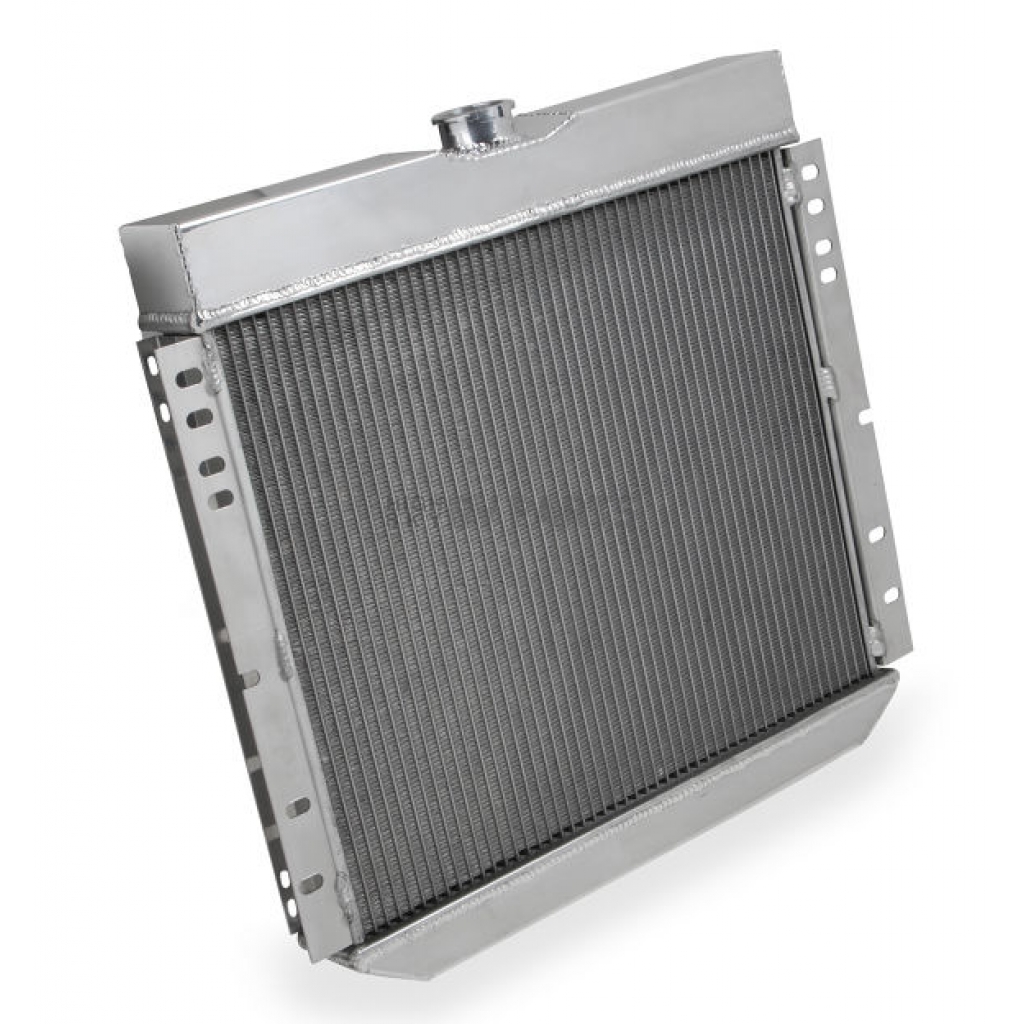

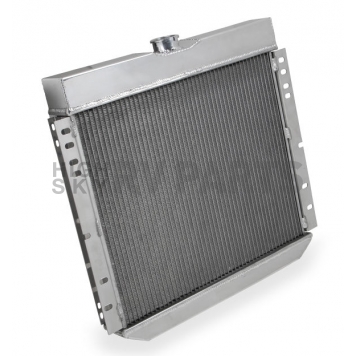

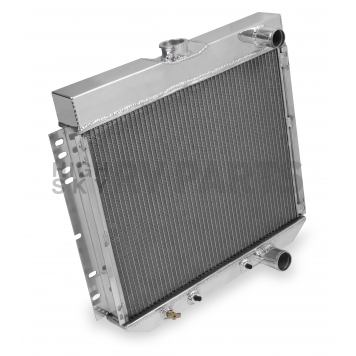

Radiator; 20-5/8 Inch x 25-3/8 Inch Overall Dimension; 15-1/2 Inch x 25-1/8 Inch Core Dimension; Four Core Rows; Downflow; Aluminum Core And Tanks; 1-1/2 Inch Drivers Side Inlet x 1-3/4 Inch Passenger Side Outlet; With Transmission Cooler; With Radiator Cap/ Filler Neck And Petcock
MPN: FB140
Features
- 100 Percent TIG Welded (Brazed) Seams
- Aircraft Quality Aluminum Core, Fittings And Tanks

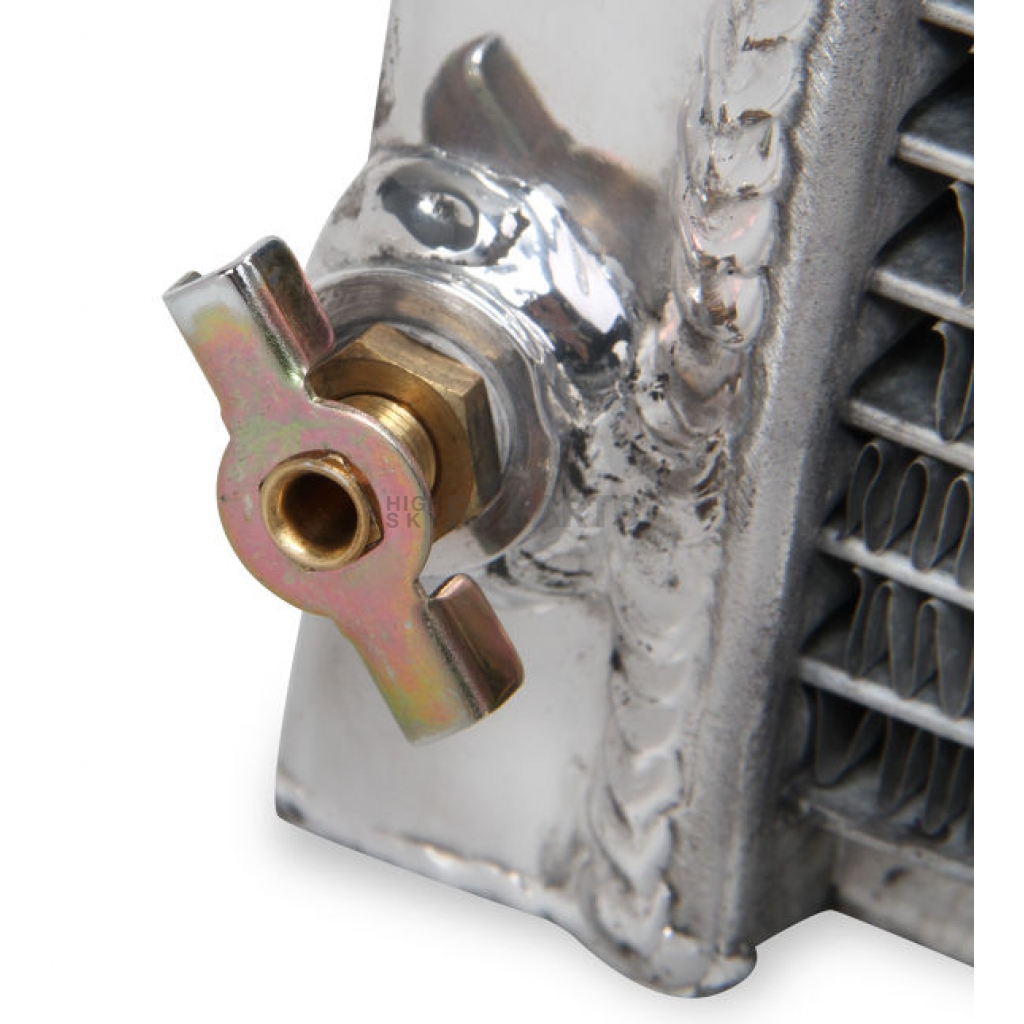

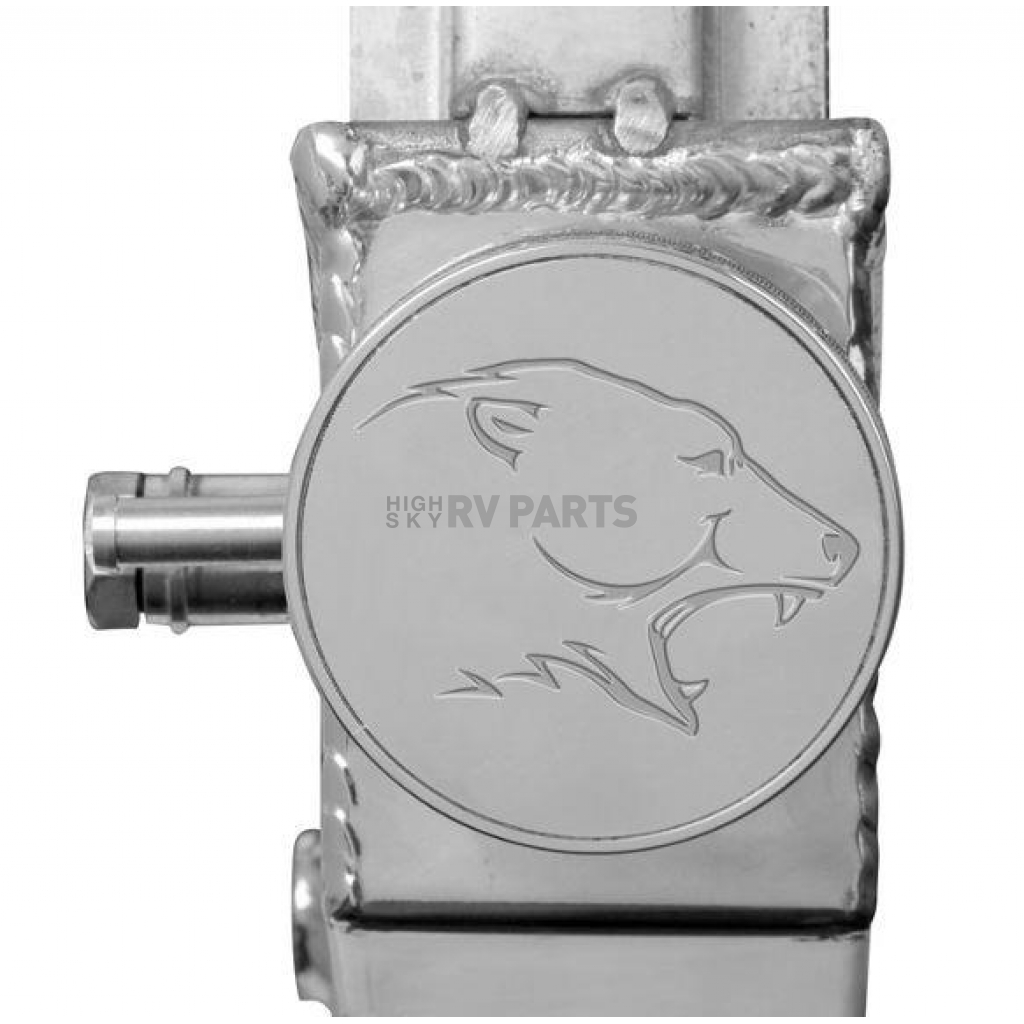

- Billet Aluminum Filler Neck And OEM Style Brass Petcock
- More Cooling Fins Per Inch For More Efficient Cooling
- Polished Top And Tanks For Custom Show Appearance
- Limited 1 Year Warranty
Specifications of Frostbite by Holley Radiator FB140 | |
Color | Silver |
Core Height (IN) | 25-1/8 Inch |
Core Length (IN) | 15-1/2 Inch |
Core Material | Aluminum |
Core Rows | Four 11/16 Inch Tube |
Finish | Polished |
Flow Direction | Downflow |
Includes Fittings | Yes |
Includes Mounting Hardware | No |
Inlet Hose Location | Drivers Side |
Inlet Size (IN) | 1-1/2 Inch |
Outlet Hose Location | Passenger Side |
Outlet Size (IN) | 1-3/4 Inch |
Overall Height (IN) | 25-3/8 Inch |
Overall Length (IN) | 20-5/8 Inch |
Tank Material | Aluminum |
With Radiator Cap | Yes |
With Transmission Cooler | Yes |
1966 Pontiac GTO
1967 Pontiac GTO
1966 Pontiac Tempest
1967 Pontiac Tempest
