Fox Shocks Shock Absorber - 985-24-178
Adjustable
No
Body Color
Black/ Silver
Body Material
Aluminum
Compressed Length (IN)
18.45 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
29.55 Inch
Includes Boot
No
Includes Dust Shield
No
Includes Hardware
No
Internal Design
Monotube
Lower Mounting Style
Eyelet
Share this page

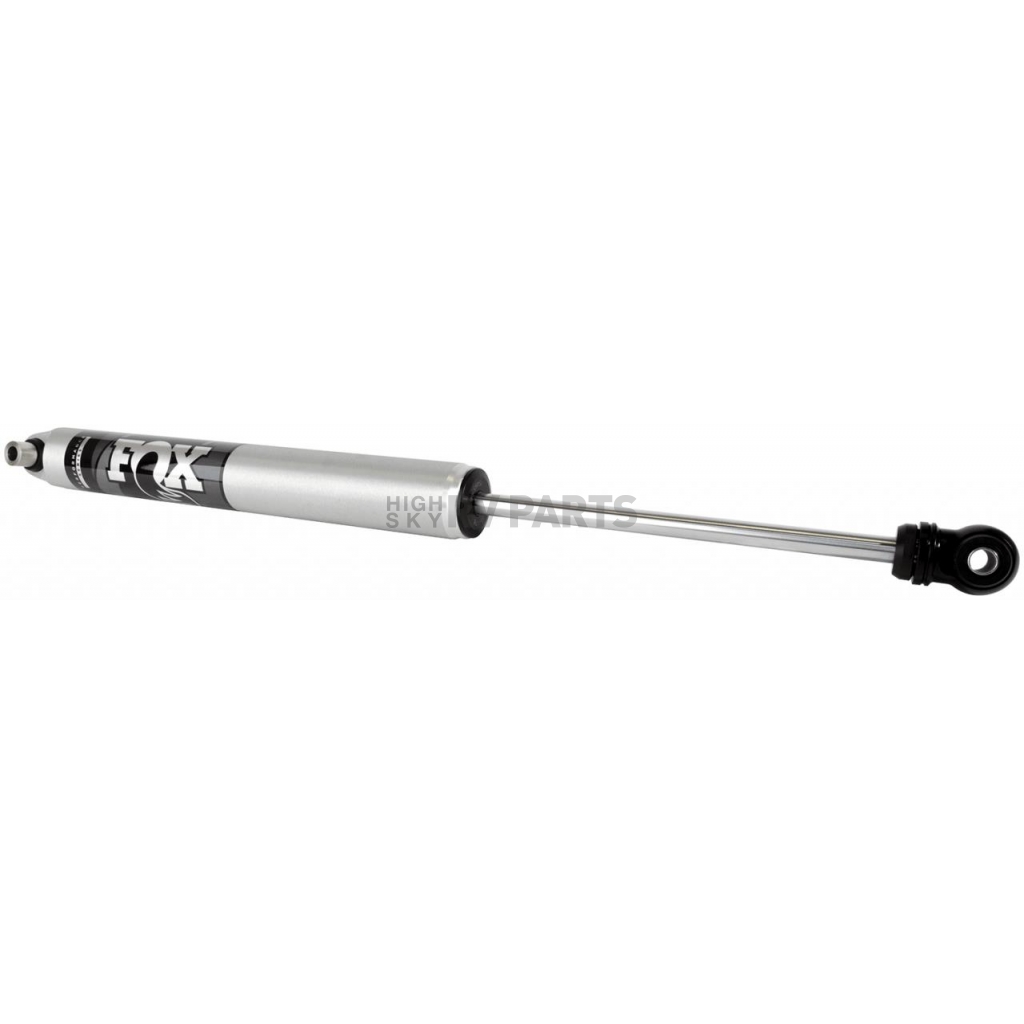

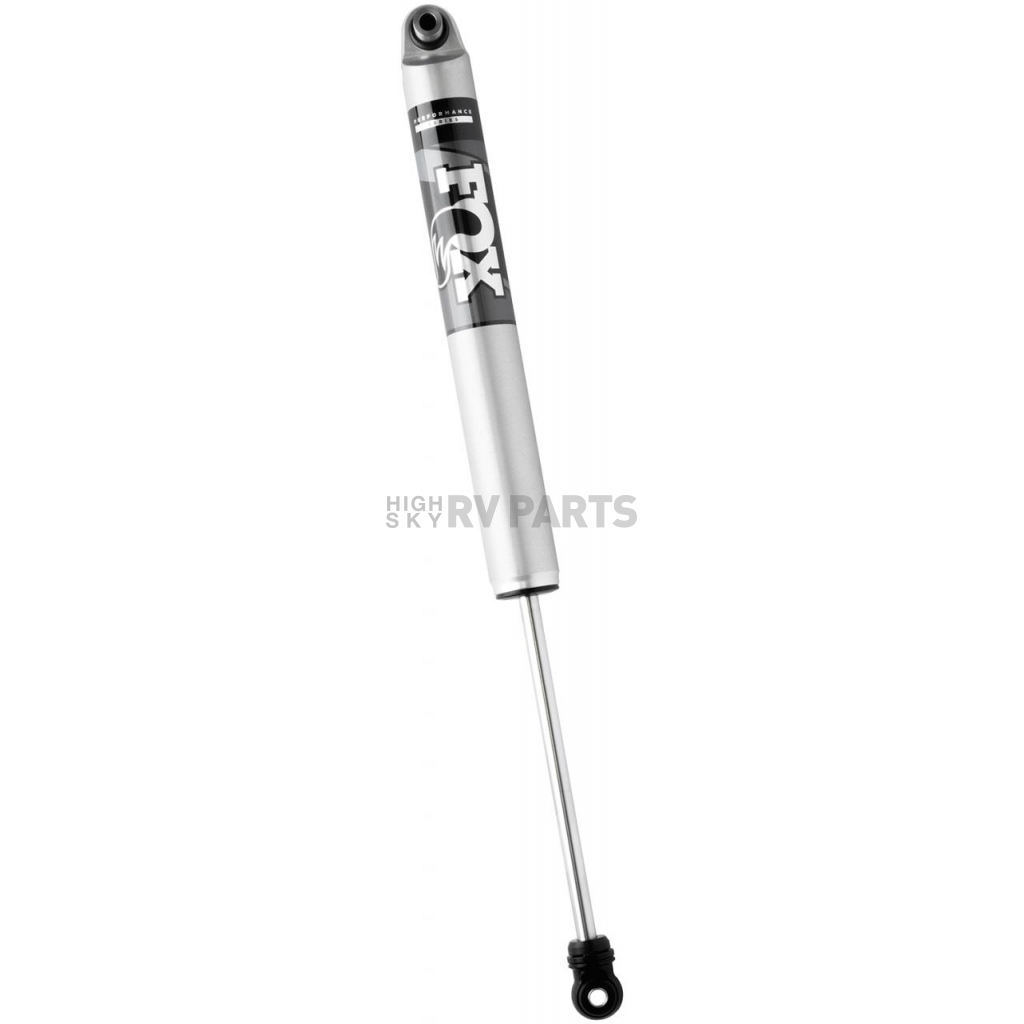

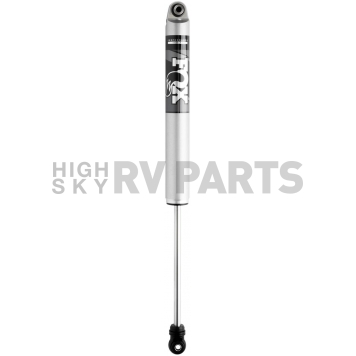

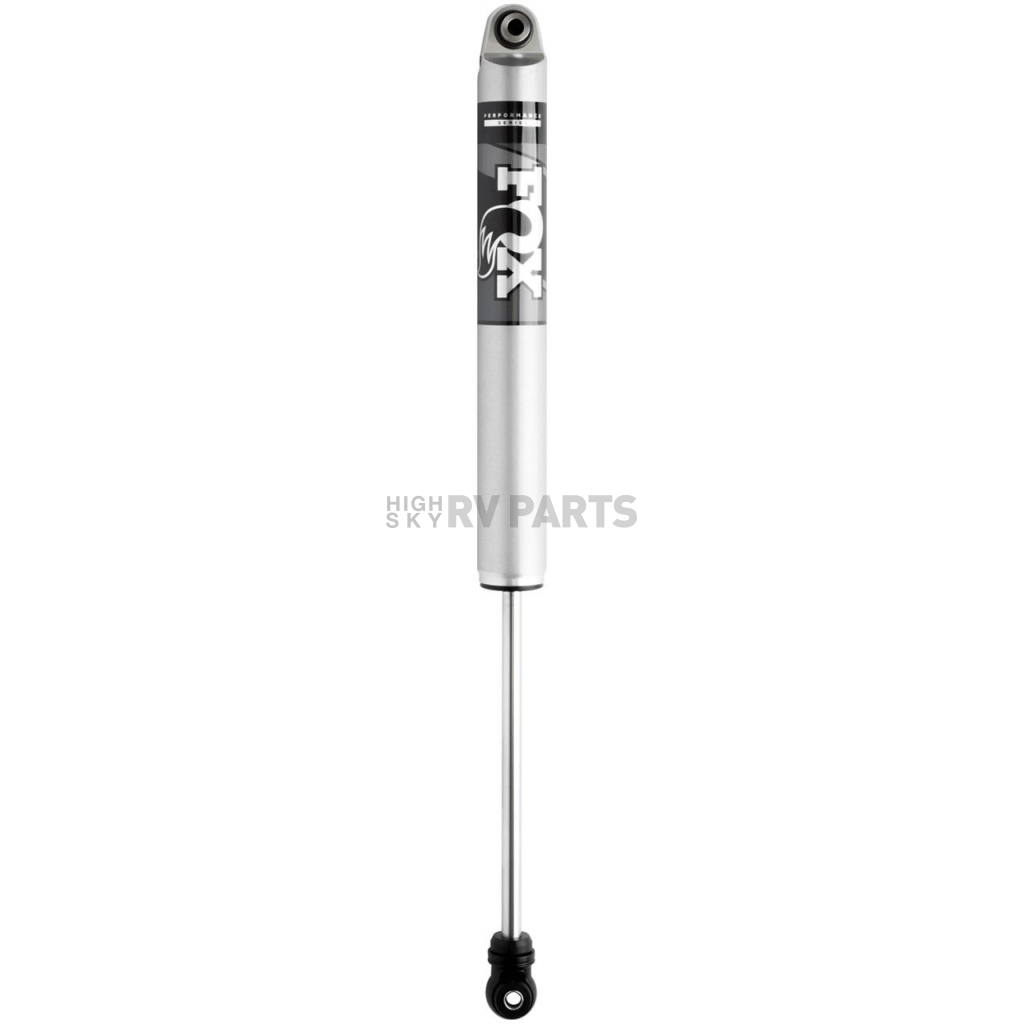

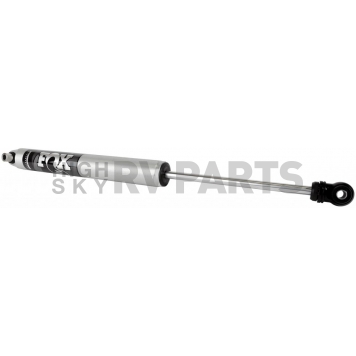

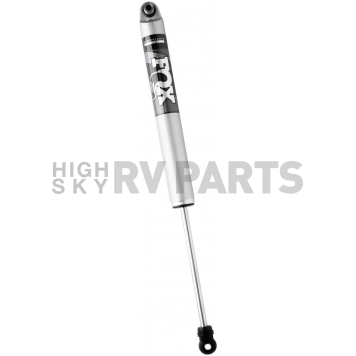

Fox Shocks Shock Absorber
Shock Absorber; Performance; Hydraulic/ Nitrogen Gas Charged; Without Reservoir; 1 Year Warranty; Non-Adjustable Valving; Without Shock Boots; Black/ Silver; Single
MPN: 98524178
The 2.0 Performance Series IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the 2.0 Performance Series IFP shock a predicable ride quality capable of handling the roughest road conditions.
Type: Hydraulic/ Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable: No
Extended Length (IN): 29.55 Inch
Compressed Length (IN): 18.45 Inch

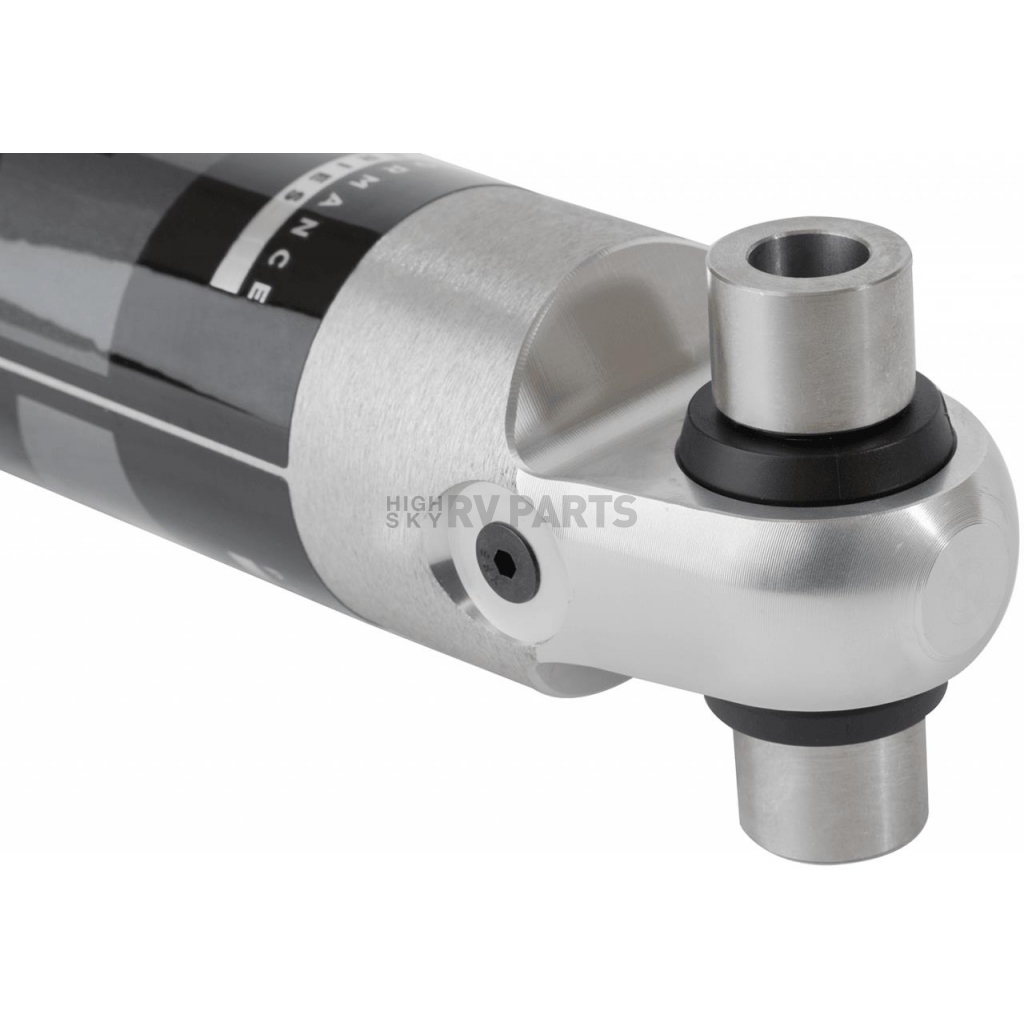

Upper Mounting Style: Cross Pin

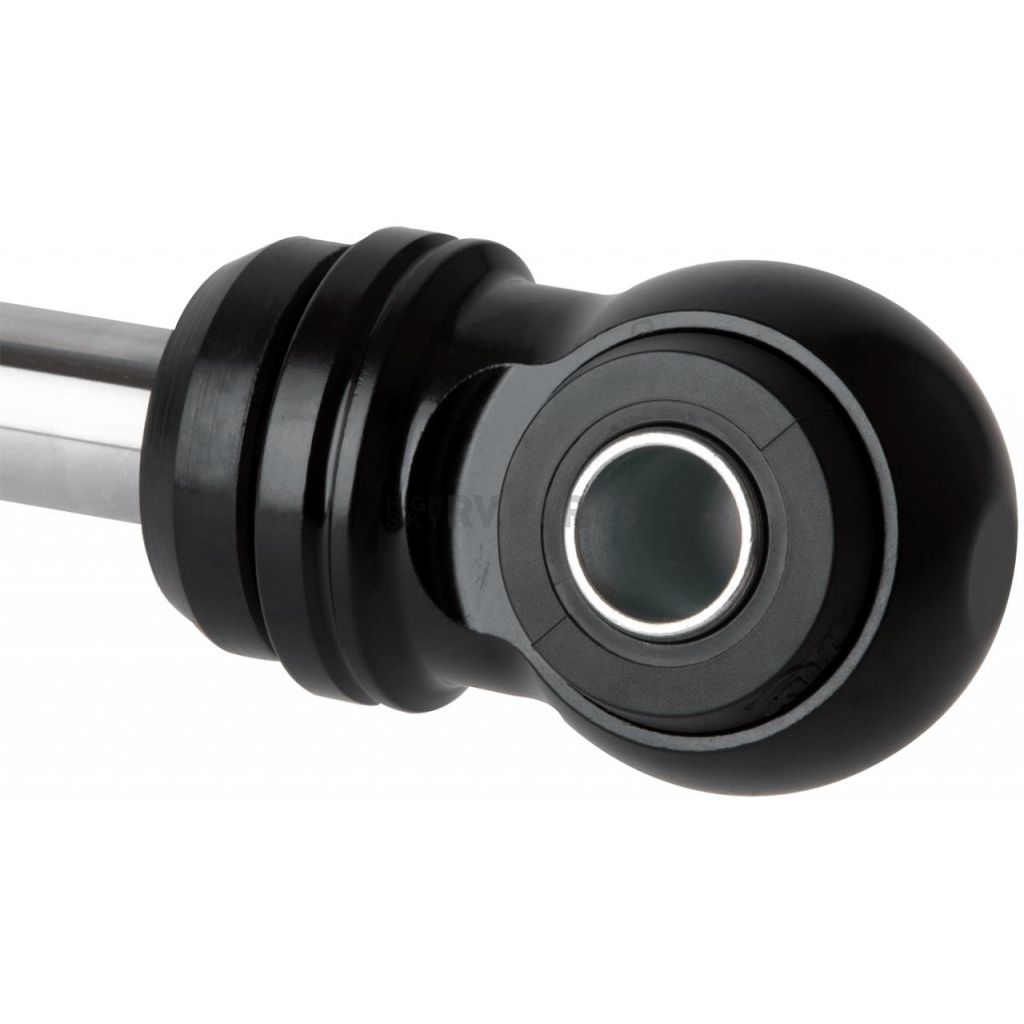

Lower Mounting Style: Eyelet
Body Color: Black/ Silver
Quantity: Single
Rod Diameter (IN): 5/8 Inch
Valving Type: Application Specific Valving
Rod Finish: Chrome Plated
Rod Material: Steel
Body Material: Aluminum
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 0.5
Features
- Body: 2.0 Inch Metal Impacted 6061-T6 Aluminum Will Resist Rust Over Time
- Body Plating: Clear-Anodized For A Durable Finish
- Components: Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
- Shaft: 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
- Piston: Race-Developed High-Flow Piston Design
- Valving: Application Specific Valving To Maximize Performance
- Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal; Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
- Mounting: Direct Replacement For Stock And Aftermarket Lifts Kits
- Limited 1 Year Warranty
Specifications of Fox Shocks Shock Absorber - 985-24-178 | |
Adjustable | No |
Body Color | Black/ Silver |
Body Material | Aluminum |
Compressed Length (IN) | 18.45 Inch |
Estimated Install Time (Hours) | 0.5 |
Extended Length (IN) | 29.55 Inch |
Includes Boot | No |
Includes Dust Shield | No |
Includes Hardware | No |
Internal Design | Monotube |
Lower Mounting Style | Eyelet |
Quantity | Single |
Rod Diameter (IN) | 5/8 Inch |
Rod Finish | Chrome Plated |
Rod Material | Steel |
Type | Hydraulic/ Nitrogen Gas Charged |
Upper Mounting Style | Cross Pin |
Valving Type | Application Specific Valving |
With Coil Spring | No |
With Reservoir | No |
2018 Jeep Wrangler JL
2019 Jeep Wrangler JL
2020 Jeep Wrangler JL
2021 Jeep Wrangler JL
2019 Jeep Wrangler JL
2020 Jeep Wrangler JL
2021 Jeep Wrangler JL
