Fox Shocks Shock Absorber - 985-24-174
Adjustable
No
Body Color
Silver
Body Material
Aluminum
Compressed Length (IN)
17.85 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
29.95 Inch
Includes Boot
No
Includes Dust Shield
No
Includes Hardware
No
Internal Design
Monotube

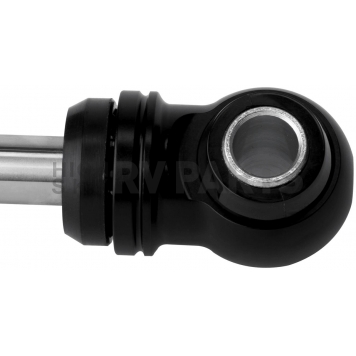

Lower Mounting Style
Eyelet
Share this page

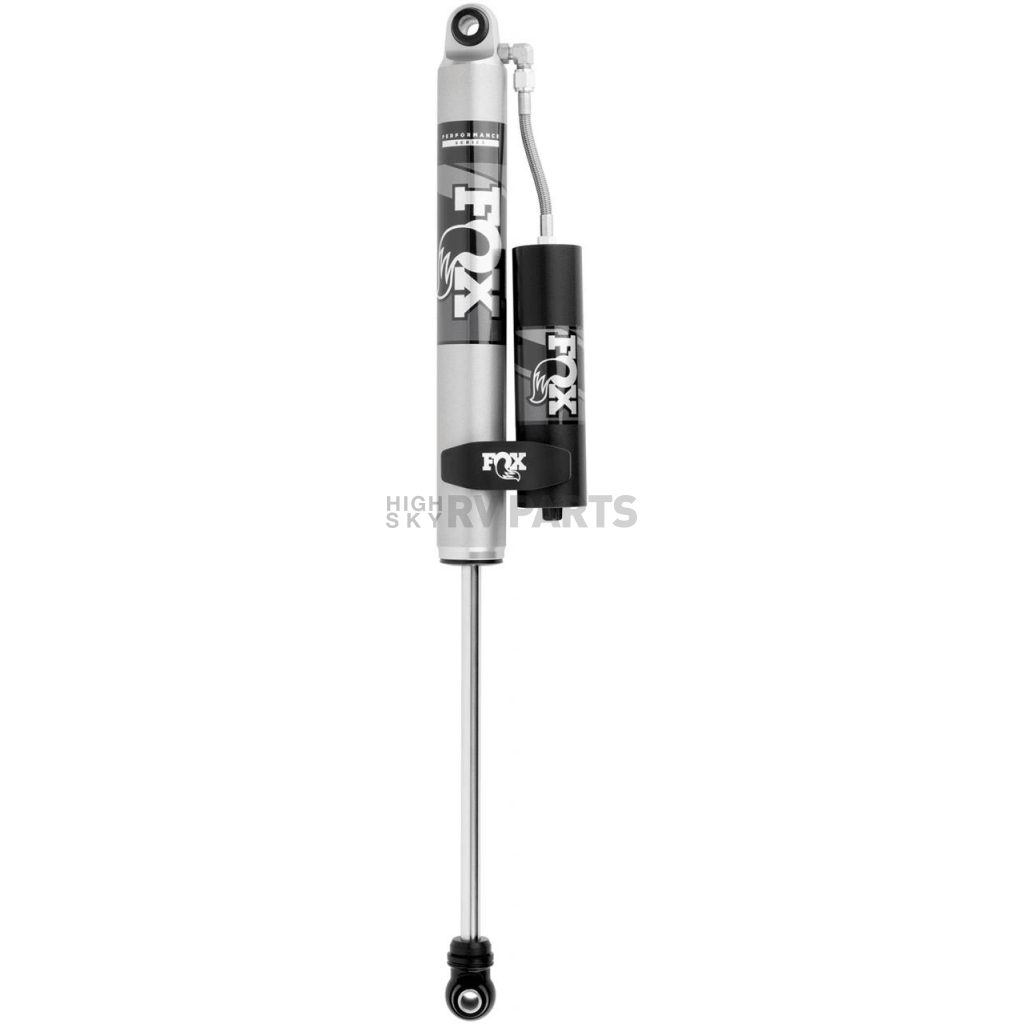

Fox Shocks Shock Absorber
Shock Absorber; 2.0 Performance Series; Hydraulic/ Nitrogen Gas Charged; With External Reservoir; 1 Year Factory Warranty; Valving Adjustable; 29.95 Extended Height/ 17.85 Compressed Height; EB3 Top Mount/ ES1 Bottom Mount; Without Shock Boot; ALUMINUM; Single
MPN: 98524174

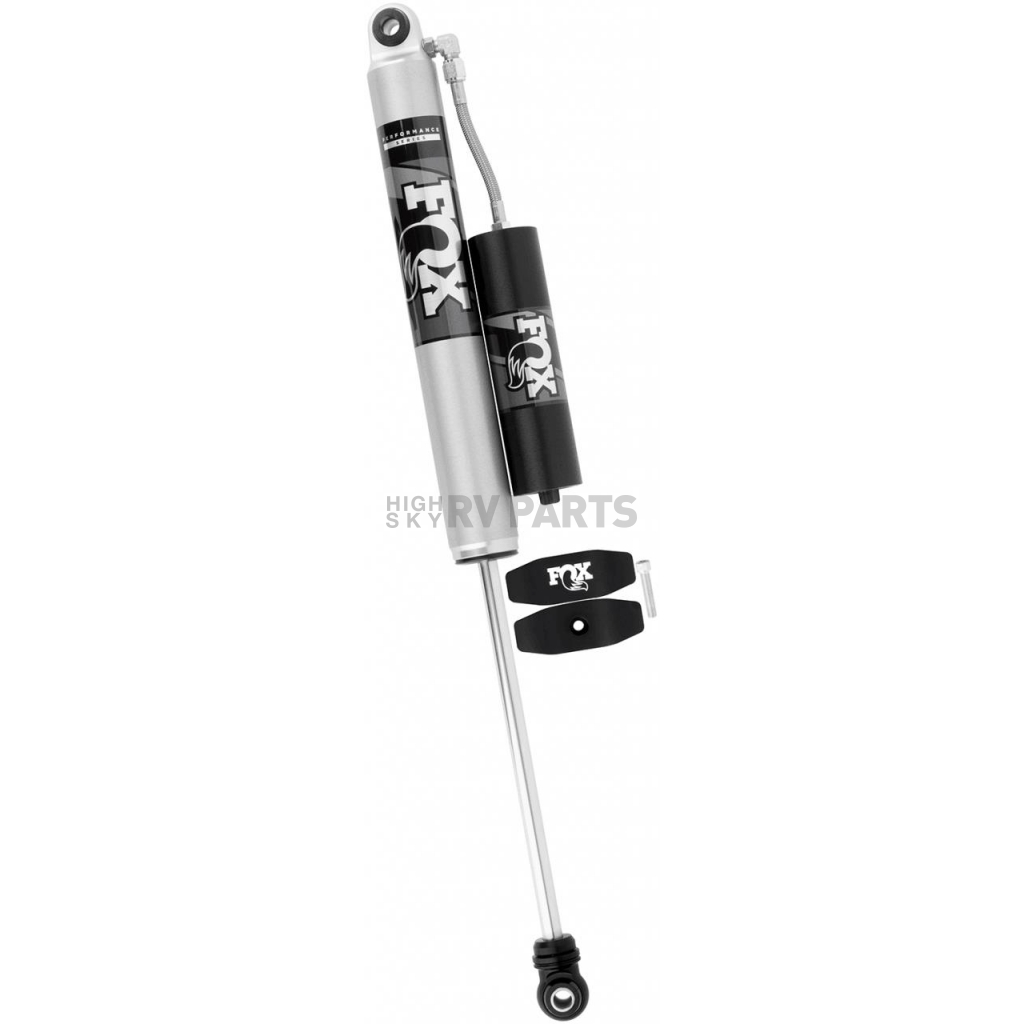

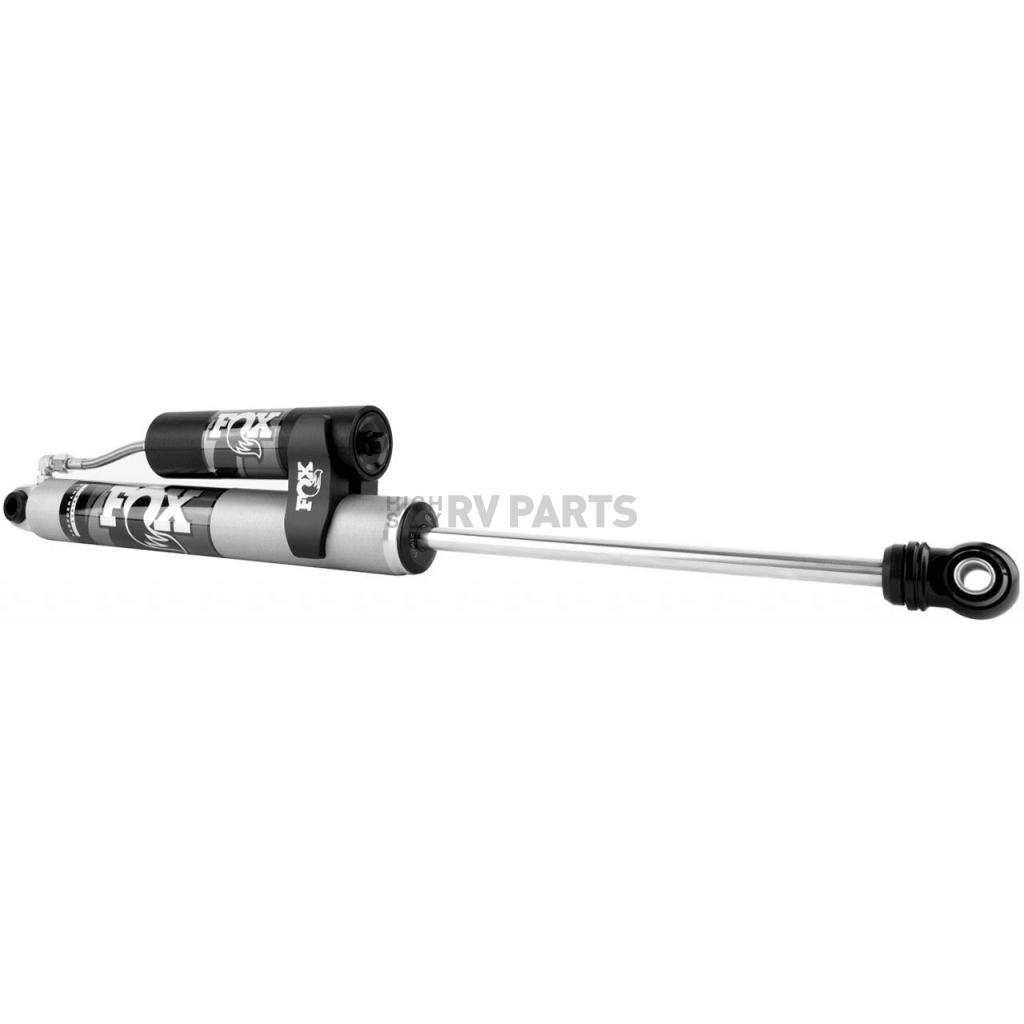

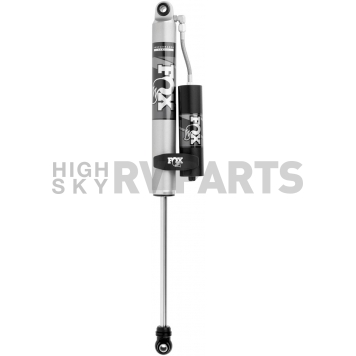

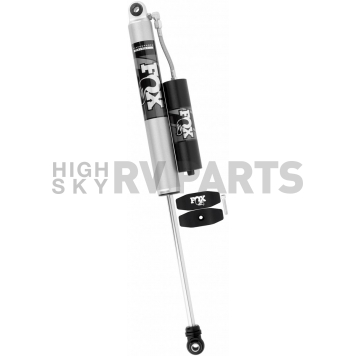

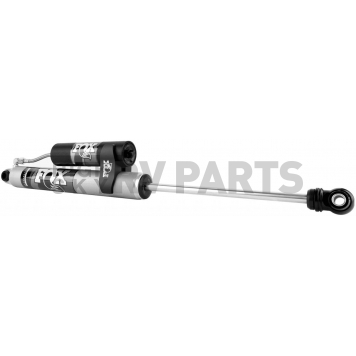

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Type: Hydraulic/ Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable: No
Extended Length (IN): 29.95 Inch
Compressed Length (IN): 17.85 Inch

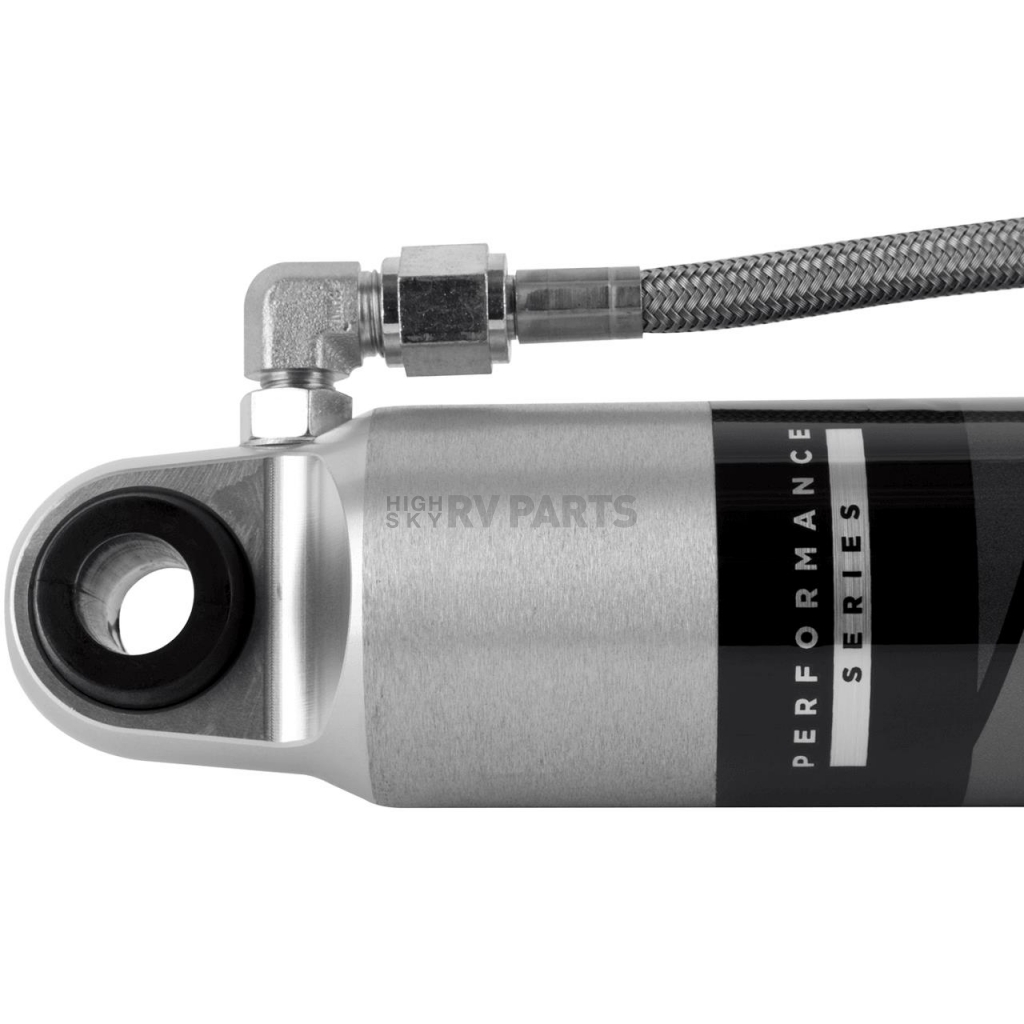

Upper Mounting Style: Eyelet

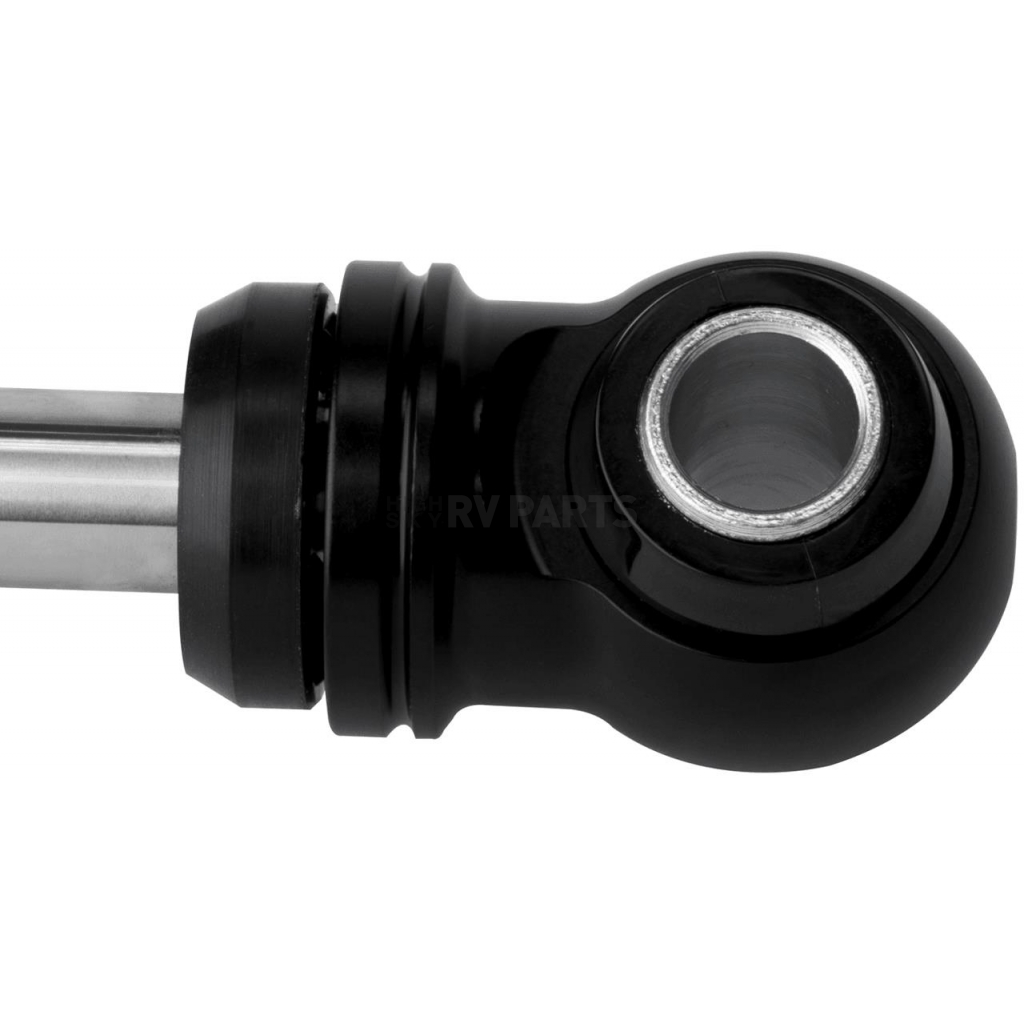

Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 5/8 Inch
Valving Type: Application Specific Valving
Rod Finish: Chrome Plated
Rod Material: Steel
Body Material: Aluminum
With Reservoir: Yes
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 0.5
Features
- Body: Metal Impacted 6061-T6 Aluminum Will Resist Rust Over Time, Clear-Anodized For A Durable Finish
- Internal IFP Mono-Tube Reservoir Design Separates Shock Oil From The High-Pressure Nitrogen
- Components: Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
- Shaft: 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
- Race-Developed High-Flow Piston Design
- Application Specific Valving To Maximize Performance
- Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
- Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
- Bushings: Quiet Nitrile Rubber Allows For Increased Suspension Articulation
- Limited 1 Year Warranty
Specifications of Fox Shocks Shock Absorber - 985-24-174 | |
Adjustable | No |
Body Color | Silver |
Body Material | Aluminum |
Compressed Length (IN) | 17.85 Inch |
Estimated Install Time (Hours) | 0.5 |
Extended Length (IN) | 29.95 Inch |
Includes Boot | No |
Includes Dust Shield | No |
Includes Hardware | No |
Internal Design | Monotube |
Lower Mounting Style | Eyelet |
Quantity | Single |
Rod Diameter (IN) | 5/8 Inch |
Rod Finish | Chrome Plated |
Rod Material | Steel |
Type | Hydraulic/ Nitrogen Gas Charged |
Upper Mounting Style | Eyelet |
Valving Type | Application Specific Valving |
With Coil Spring | No |
With Reservoir | Yes |
2017-2020 Ford F-250 Super Duty
2017 Ford F-250 Super Duty
2018 Ford F-250 Super Duty
2019 Ford F-250 Super Duty
2020 Ford F-250 Super Duty
2018 Ford F-250 Super Duty
2019 Ford F-250 Super Duty
2020 Ford F-250 Super Duty
2017-2020 Ford F-350 Super Duty
2017 Ford F-350 Super Duty
2018 Ford F-350 Super Duty
2019 Ford F-350 Super Duty
2020 Ford F-350 Super Duty
2018 Ford F-350 Super Duty
2019 Ford F-350 Super Duty
2020 Ford F-350 Super Duty
