Fox Shocks Shock Absorber - 985-24-168

Brand: Fox Shocks Manufacturer

0 reviews

Have a product question? Ask us
Part Number: 985-24-168
Part Location: U.S.
Availability: 154 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by July 07

Retail: $238.34

Price: $226.99

You Save: $11.35

Adjustable

Body Color

Black/ Silver

Body Material

Aluminum

Compressed Length (IN)

14.35 Inch

Estimated Install Time (Hours)

Extended Length (IN)

22.95 Inch

Includes Boot

Includes Dust Shield

Includes Hardware

Internal Design

Monotube

Lower Mounting Style

Eyelet

Share this page

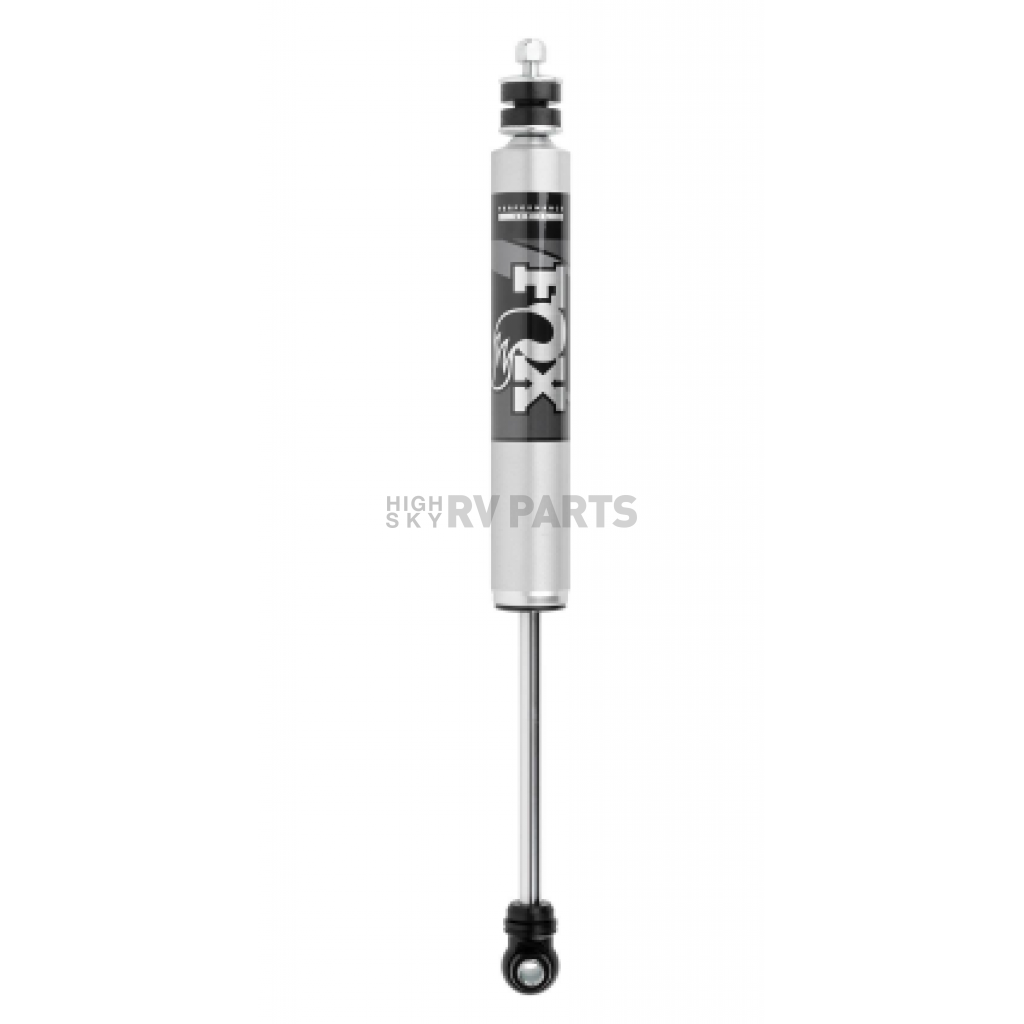

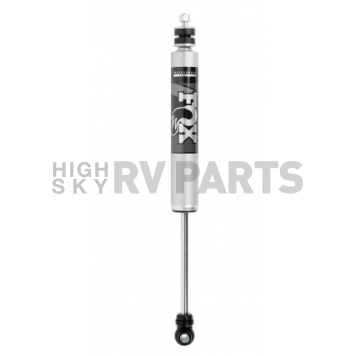

Fox Shocks Shock Absorber

Shock Absorber; Performance; Hydraulic/ Nitrogen Gas Charged; Without Remote Reservoir; 1 Year Warranty; Non-Adjustable Valving; Without Shock Boots; Black/ Silver; Single

MPN: 98524168

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

Type: Hydraulic/ Nitrogen Gas Charged

With Coil Spring: No

Internal Design: Monotube

Adjustable: No

Extended Length (IN): 22.95 Inch

Compressed Length (IN): 14.35 Inch

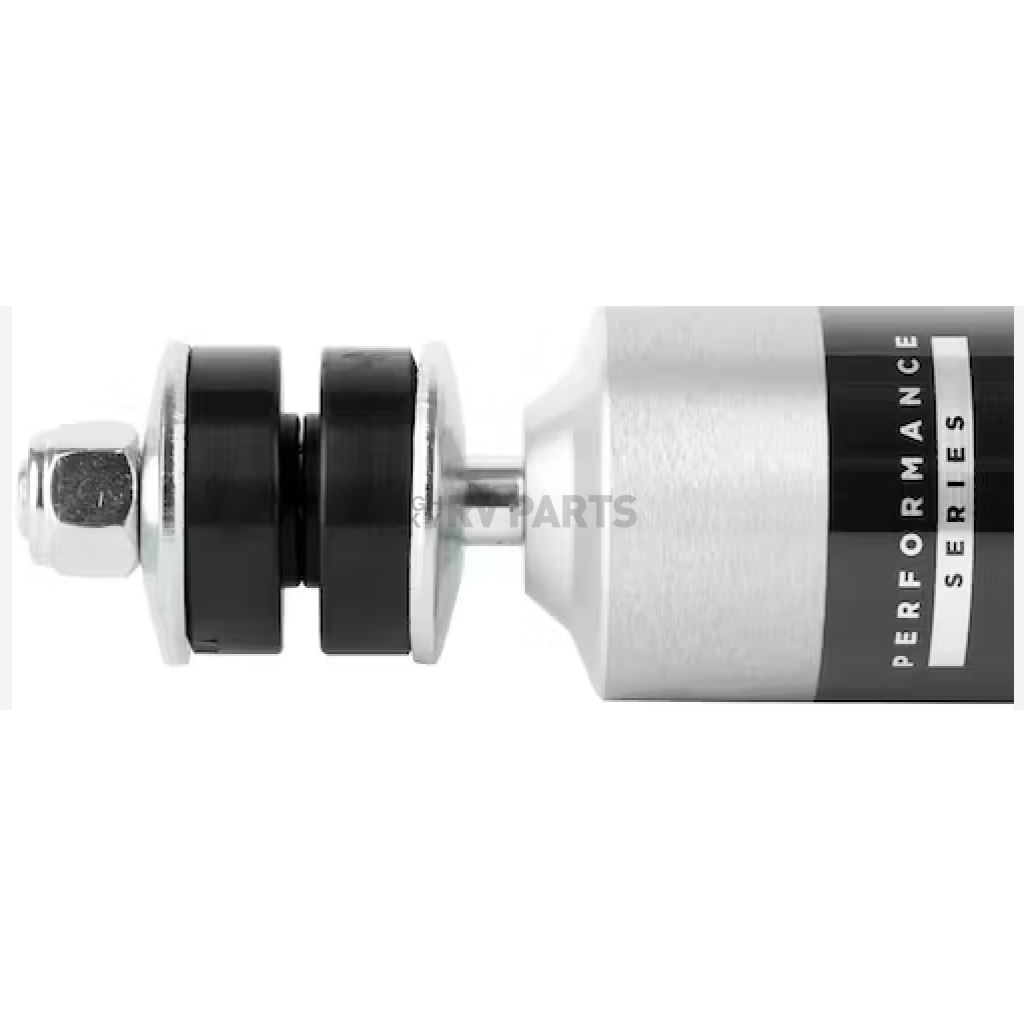

Upper Mounting Style: Stud

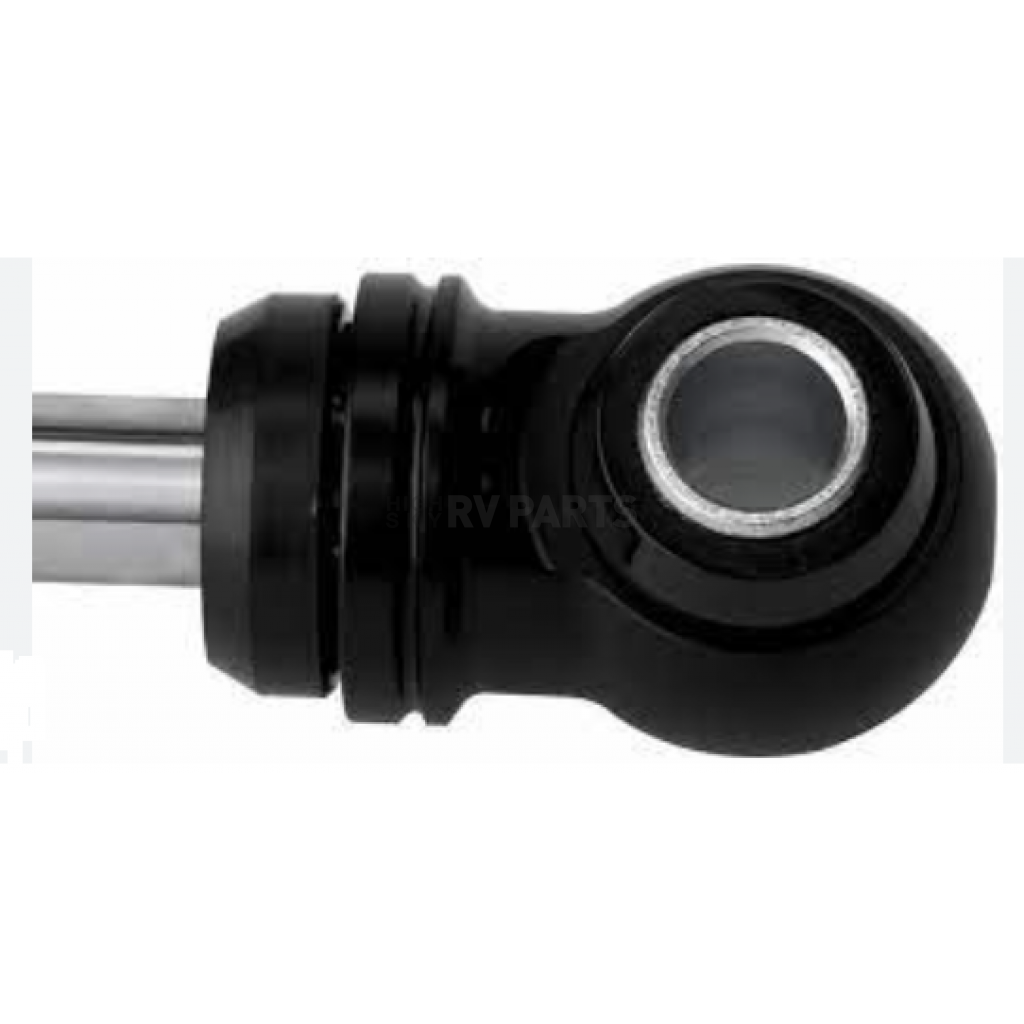

Lower Mounting Style: Eyelet

Body Color: Black/ Silver

Quantity: Single

Rod Diameter (IN): 5/8 Inch

Valving Type: Non Adjustable Valving

Rod Finish: Chrome Plated

Rod Material: Steel

Body Material: Aluminum

With Reservoir: No

Includes Dust Shield: No

Includes Hardware: No

Includes Boot: No

Estimated Install Time (Hours): 0.5

Features

Body : 2.0 Inch Impact Extruded And CNC Machined 6061-T6 Clear Anodized Aluminum One-Piece Body Resists Rust Over Time
Body Plating : Clear-Anodized For A Durable Finish
Reservoir : Internal IFP Mono-Tube Reservoir Design
Components :Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
Shaft: 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
Piston: Race-Developed High-Flow Piston Design
Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
Bushing : Quiet Nitrile Rubber Allows For Increased Suspension Articulation
Limited 1 Year Warranty

Specifications of Fox Shocks Shock Absorber - 985-24-168
Adjustable	No
Body Color	Black/ Silver
Body Material	Aluminum
Compressed Length (IN)	14.35 Inch
Estimated Install Time (Hours)	0.5
Extended Length (IN)	22.95 Inch
Includes Boot	No
Includes Dust Shield	No
Includes Hardware	No
Internal Design	Monotube
Lower Mounting Style	Eyelet
Quantity	Single
Rod Diameter (IN)	5/8 Inch
Rod Finish	Chrome Plated
Rod Material	Steel
Type	Hydraulic/ Nitrogen Gas Charged
Upper Mounting Style	Stud
Valving Type	Non Adjustable Valving
With Coil Spring	No
With Reservoir	No
