Fox Shocks Shock Absorber - 985-24-164

Brand: Fox Shocks Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 985-24-164
  • Part Location: U.S.
  • Availability: 33 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 03
Retail: $369.59
Price: $351.99
You Save: $17.60
Adjustable
No
Body Color
Black/ Silver
Body Material
Aluminum
Compressed Length (IN)
16.2 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
27.3 Inch
Includes Boot
No
Includes Dust Shield
No
Includes Hardware
No
Internal Design
Monotube
Lower Mounting Style
Eyelet
Share this page

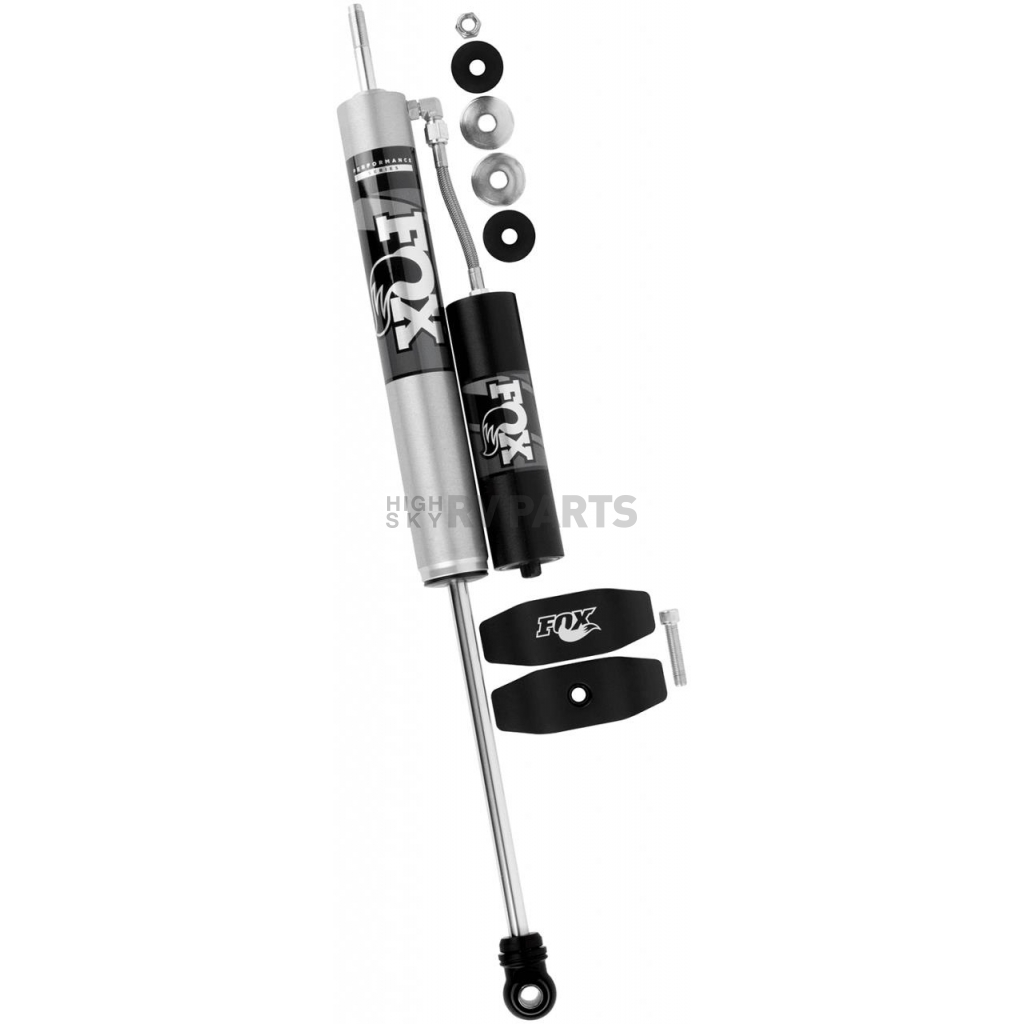

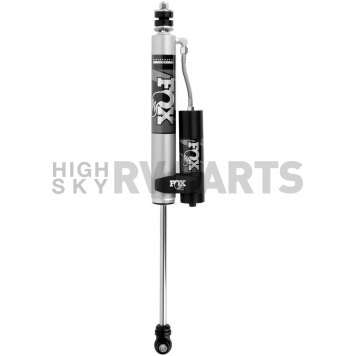

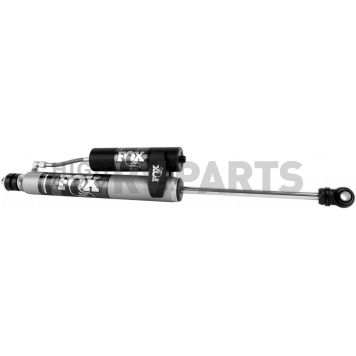

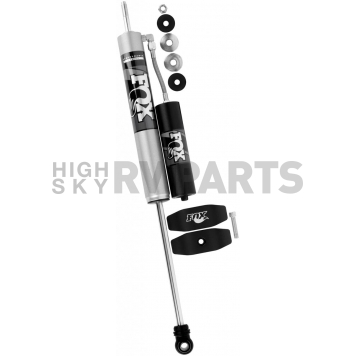

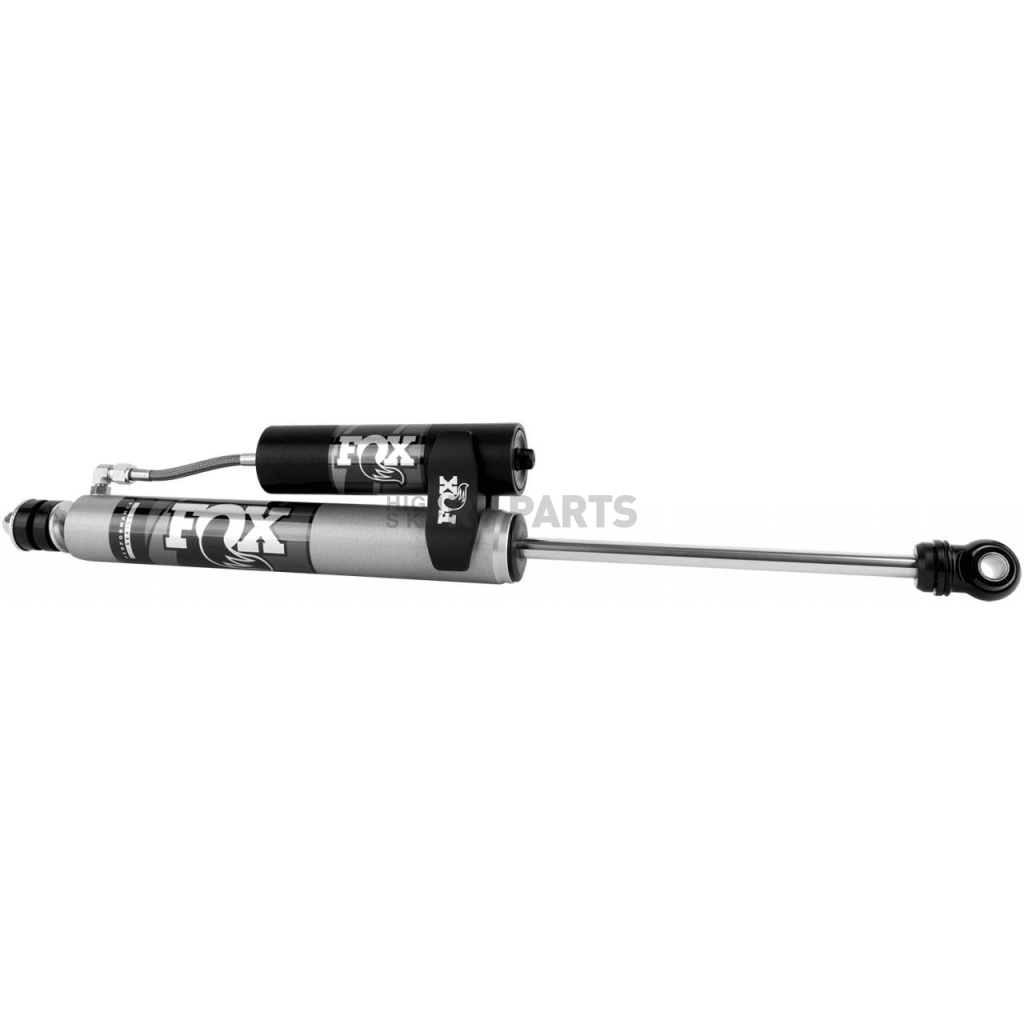

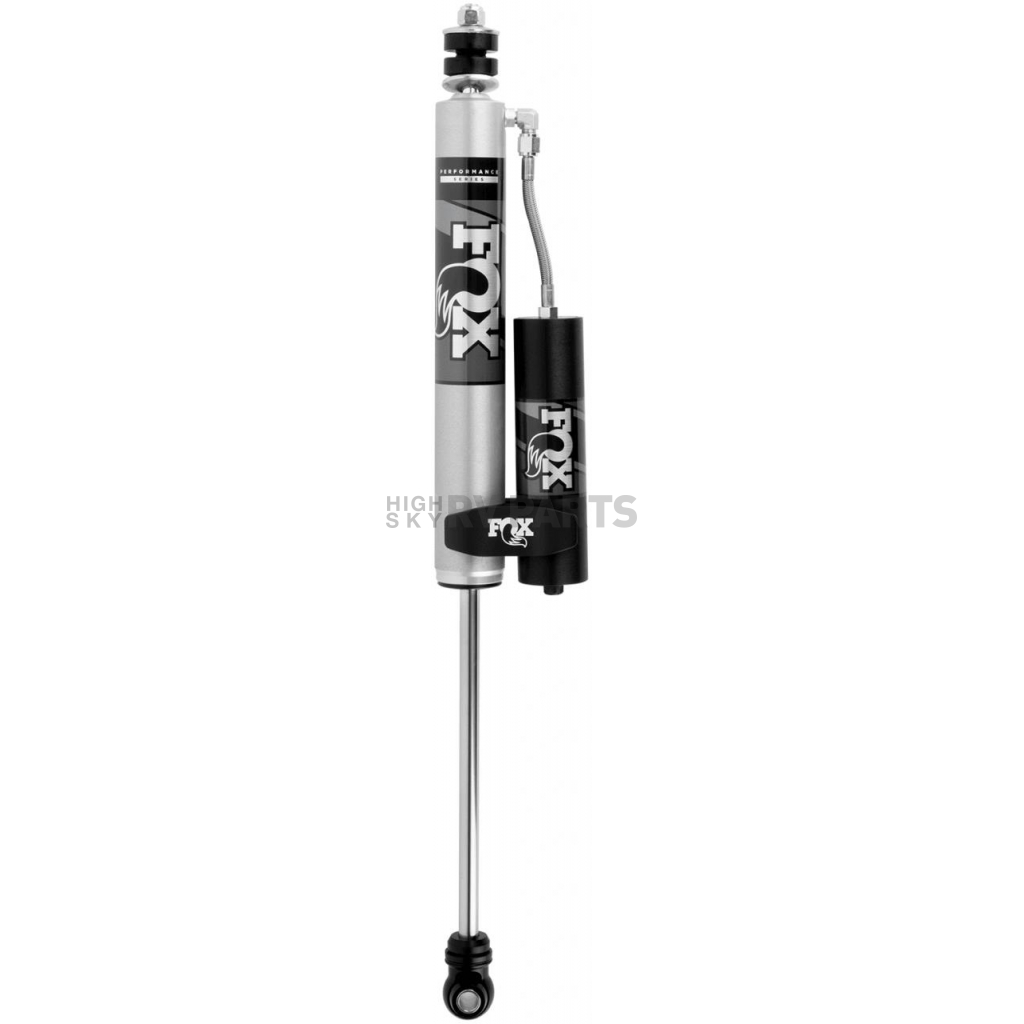

Fox Shocks Shock Absorber

Shock Absorber; 2.0 Performance Series; Hydraulic/ Nitrogen Gas Charged; With Remote Reservoir; 1 Year Warranty; Non-Adjustable Valving; Without Shock Boots; Black/ Silver; Single

MPN: 98524164

The 2.0 Performance Series IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the 2.0 Performance Series IFP shock a predicable ride quality capable of handling the roughest road conditions.
Type: Hydraulic/ Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable: No
Extended Length (IN): 27.3 Inch
Compressed Length (IN): 16.2 Inch

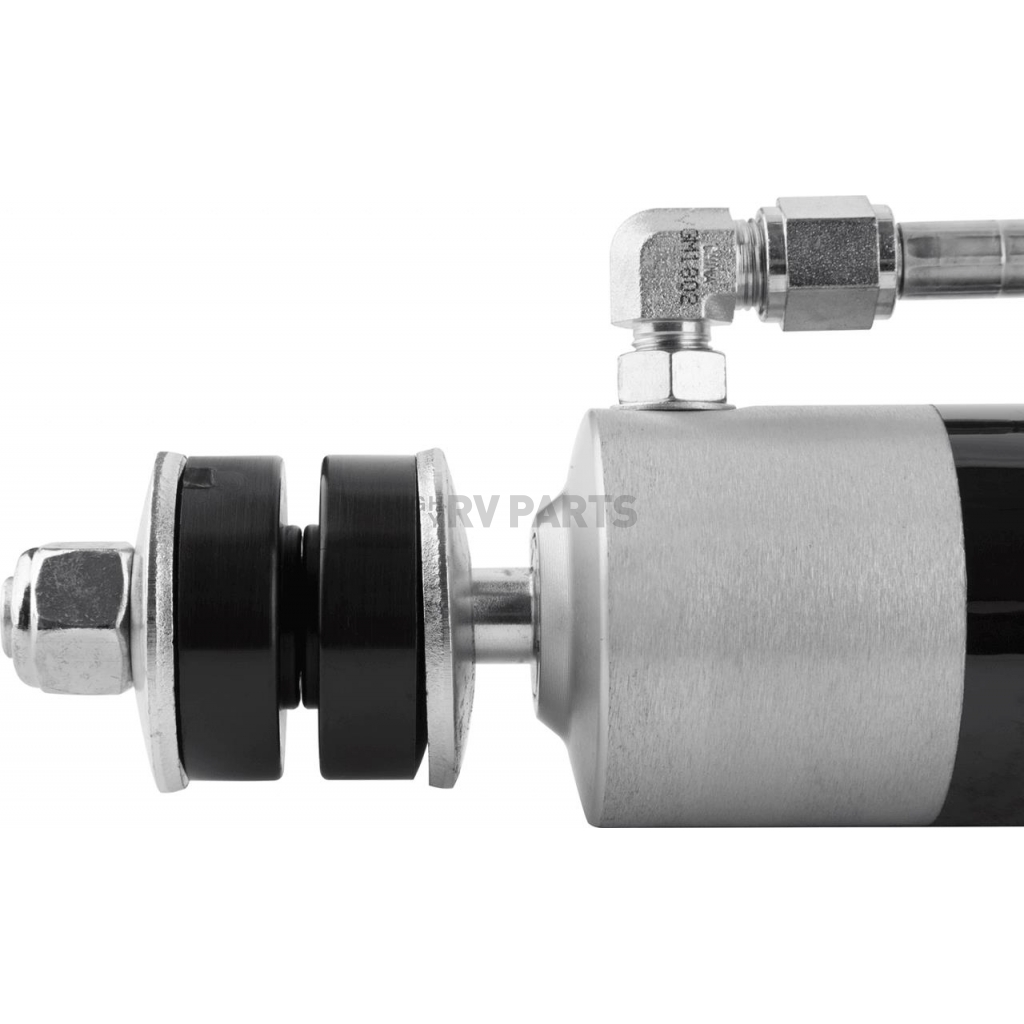

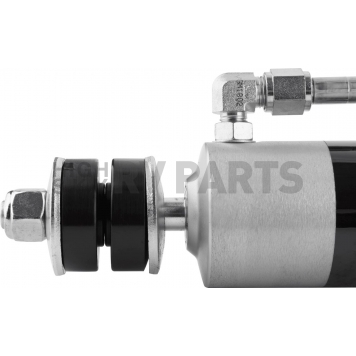

Upper Mounting Style: Stud

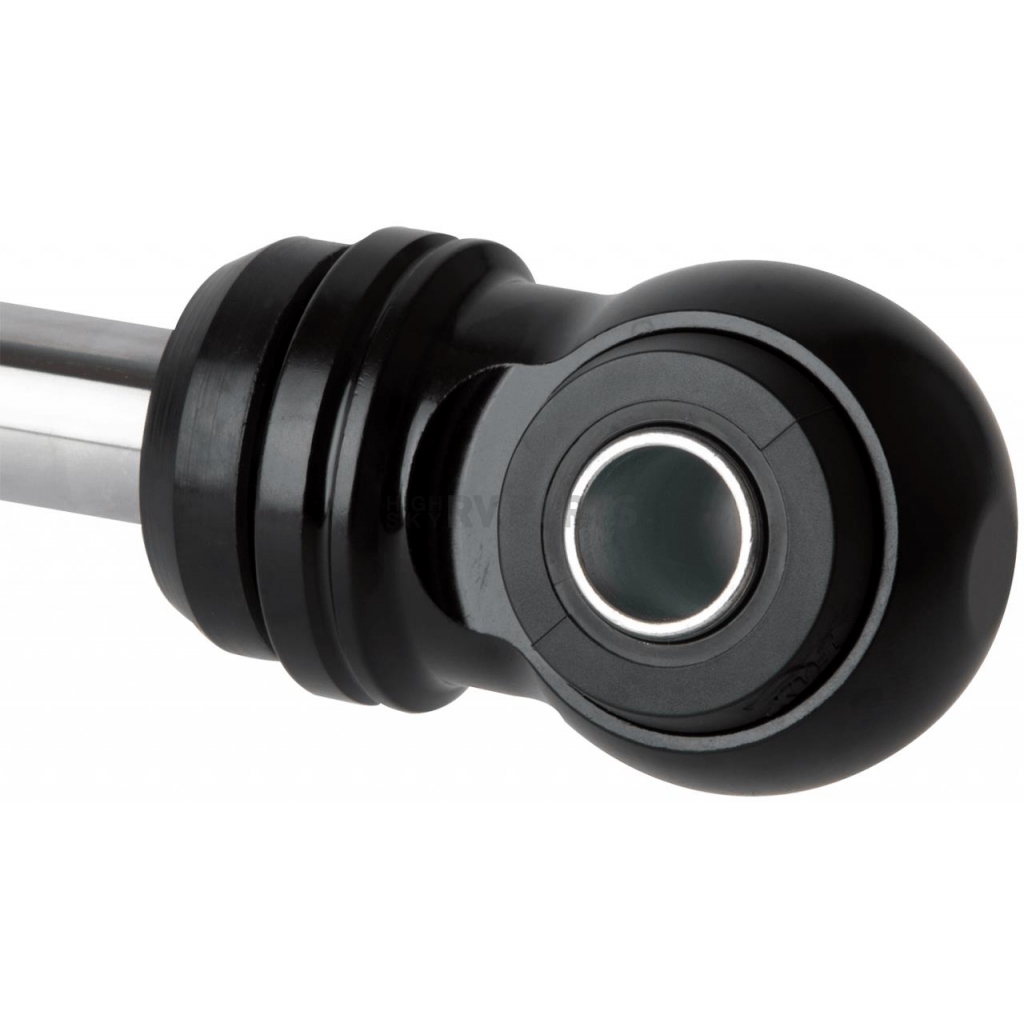

Lower Mounting Style: Eyelet
Body Color: Black/ Silver
Quantity: Single
Rod Diameter (IN): 5/8 Inch
Valving Type: Application Specific Valving
Rod Finish: Chrome Plated
Rod Material: Steel
Body Material: Aluminum
With Reservoir: Yes
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • Body: Metal Impacted 6061-T6 Aluminum Will Resist Rust Over Time, Clear-Anodized For A Durable Finish
  • Internal IFP Mono-Tube Reservoir Design Separates Shock Oil From The High-Pressure Nitrogen
  • Components: Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
  • Shaft: 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
  • Race-Developed High-Flow Piston Design
  • Application Specific Valving To Maximize Performance
  • Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
  • Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
  • Bushings: Quiet Nitrile Rubber Allows For Increased Suspension Articulation
  • Limited 1 Year Warranty
Specifications of Fox Shocks Shock Absorber - 985-24-164
Adjustable No
Body Color Black/ Silver
Body Material Aluminum
Compressed Length (IN) 16.2 Inch
Estimated Install Time (Hours) 0.5
Extended Length (IN) 27.3 Inch
Includes Boot No
Includes Dust Shield No
Includes Hardware No
Internal Design Monotube
Lower Mounting Style Eyelet
Quantity Single
Rod Diameter (IN) 5/8 Inch
Rod Finish Chrome Plated
Rod Material Steel
Type Hydraulic/ Nitrogen Gas Charged
Upper Mounting Style Stud
Valving Type Application Specific Valving
With Coil Spring No
With Reservoir Yes

2017 Ford F-250 Super Duty
2018 Ford F-250 Super Duty

2017 Ford F-350 Super Duty
2018 Ford F-350 Super Duty
