Fox Shocks Shock Absorber - 985-24-152
Adjustable
No
Body Color
Silver
Body Material
Aluminum
Compressed Length (IN)
20.15 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
32-3/4 Inch
Includes Boot
No
Includes Dust Shield
No
Includes Hardware
No
Internal Design
Monotube
Lower Mounting Style
Eyelet
Share this page

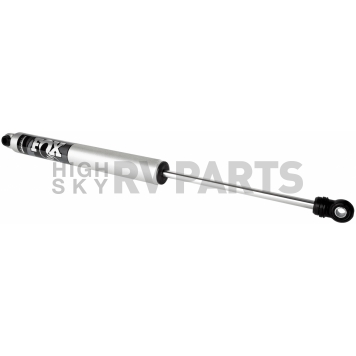

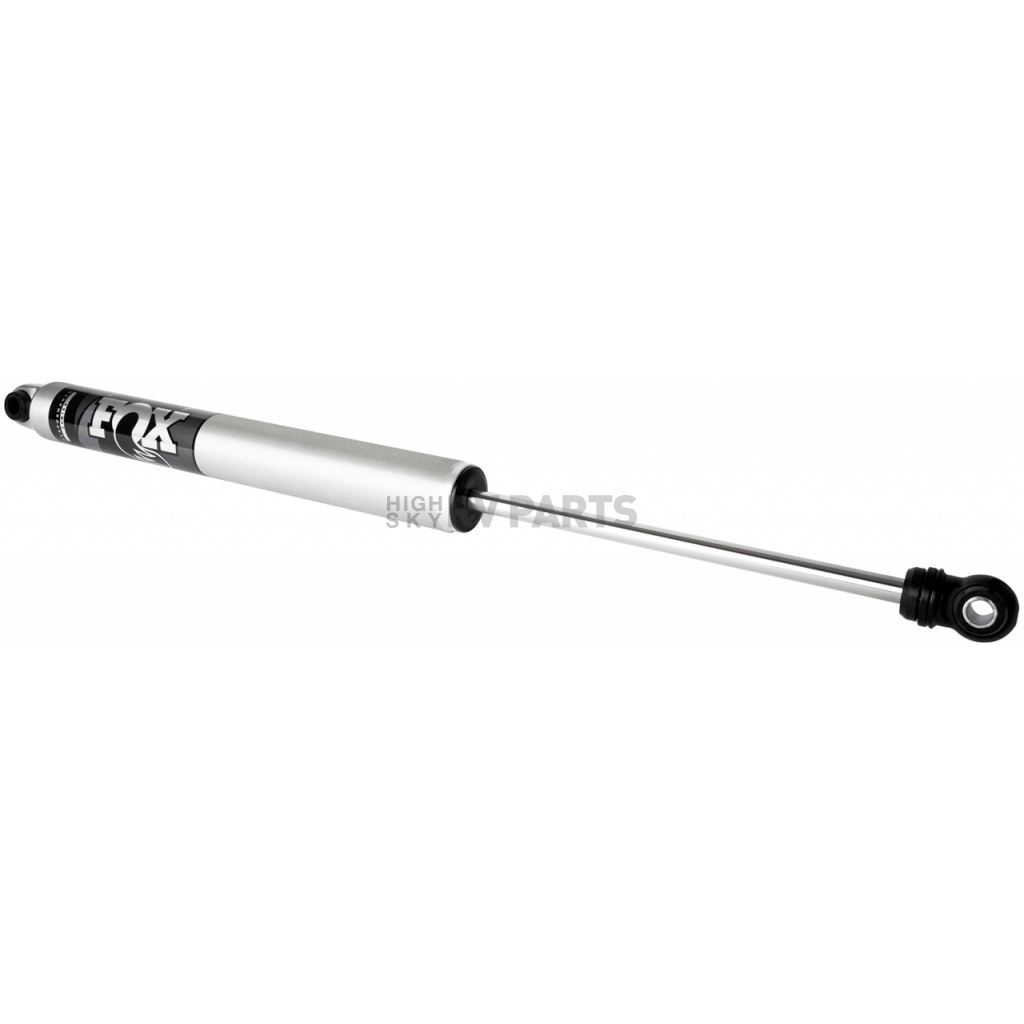

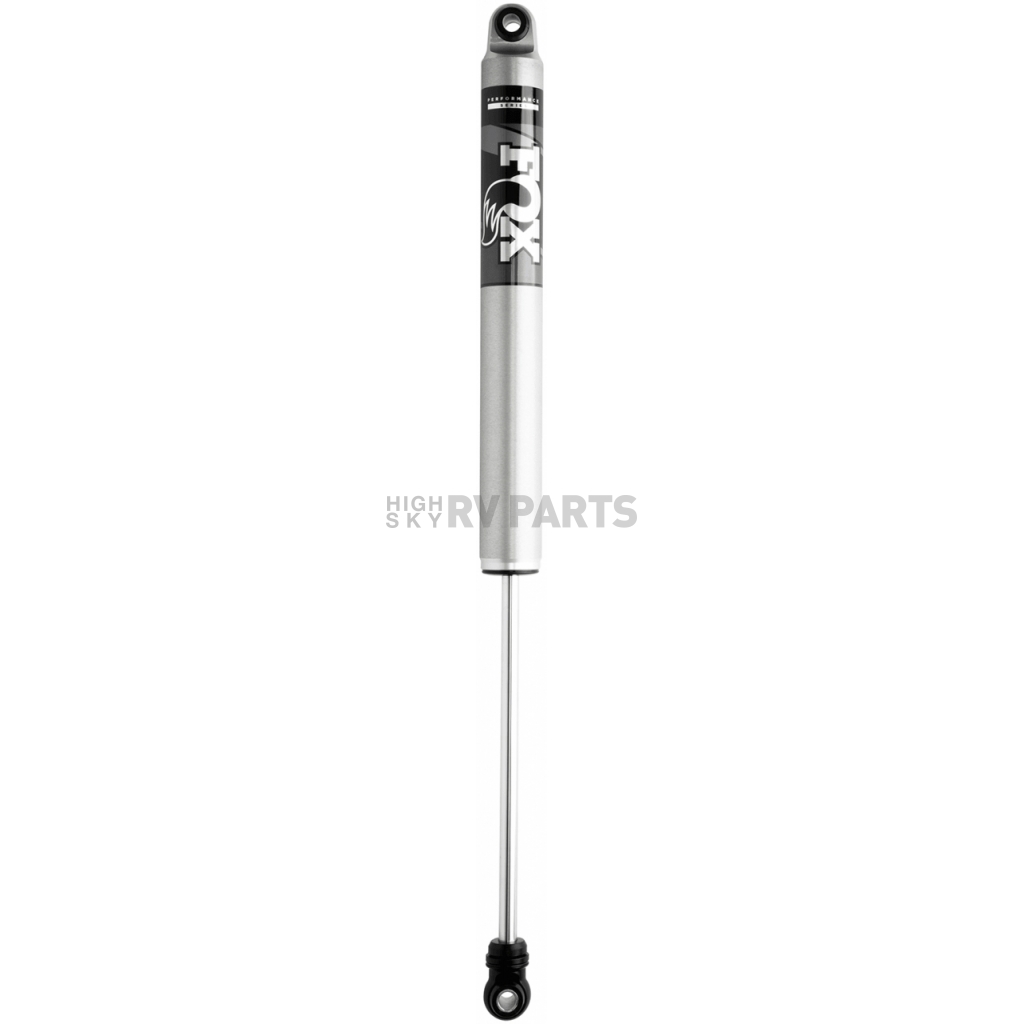

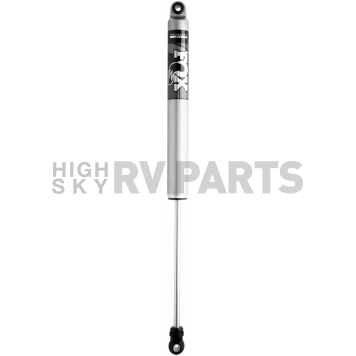

Fox Shocks Shock Absorber
Shock Absorber; Performance; Hydraulic/ Nitrogen Gas Charged; Without Reservoir; 1 Year Warranty; Non-Adjustable Valving; Without Shock Boots; Black/ Silver; Single
MPN: 98524152
The 2.0 Performance Series IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the 2.0 Performance Series IFP shock a predicable ride quality capable of handling the roughest road conditions.
Type: Hydraulic/ Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable: No
Extended Length (IN): 32-3/4 Inch
Compressed Length (IN): 20.15 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 5/8 Inch
Valving Type: Application Specific Valving
Rod Finish: Chrome Plated
Rod Material: Steel
Body Material: Aluminum
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 0.5
Features
- Body: 2.0 Inch Metal Impacted 6061-T6 Aluminum Will Resist Rust Over Time
- Body Plating: Clear-Anodized For A Durable Finish
- Internal Reservoir: Internal IFP Mono-Tube Reservoir Design Separates Shock Oil From The High-Pressure Nitrogen
- Components: Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
- Shaft: 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
- Piston: Race-Developed High-Flow Piston Design; Bushings: Quiet Nitrile Rubber Allows For Increased Suspension Articulation
- Valving: Application Specific Valving To Maximize Performance
- Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal; Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
- Mounting: Direct Replacement For Stock And Aftermarket Lifts Kits
- Limited 1 Year Warranty
Specifications of Fox Shocks Shock Absorber - 985-24-152 | |
Adjustable | No |
Body Color | Silver |
Body Material | Aluminum |
Compressed Length (IN) | 20.15 Inch |
Estimated Install Time (Hours) | 0.5 |
Extended Length (IN) | 32-3/4 Inch |
Includes Boot | No |
Includes Dust Shield | No |
Includes Hardware | No |
Internal Design | Monotube |
Lower Mounting Style | Eyelet |
Quantity | Single |
Rod Diameter (IN) | 5/8 Inch |
Rod Finish | Chrome Plated |
Rod Material | Steel |
Type | Hydraulic/ Nitrogen Gas Charged |
Upper Mounting Style | Eyelet |
Valving Type | Application Specific Valving |
With Coil Spring | No |
With Reservoir | No |
2017-2020 Ford F-250 Super Duty
2017 Ford F-250 Super Duty
2018 Ford F-250 Super Duty
2019 Ford F-250 Super Duty
2020 Ford F-250 Super Duty
2018 Ford F-250 Super Duty
2019 Ford F-250 Super Duty
2020 Ford F-250 Super Duty
2017-2020 Ford F-350 Super Duty
2017 Ford F-350 Super Duty
2018 Ford F-350 Super Duty
2019 Ford F-350 Super Duty
2020 Ford F-350 Super Duty
2018 Ford F-350 Super Duty
2019 Ford F-350 Super Duty
2020 Ford F-350 Super Duty
2017-2020 Ford F-450 Super Duty
2017 Ford F-450 Super Duty
2018 Ford F-450 Super Duty
2019 Ford F-450 Super Duty
2020 Ford F-450 Super Duty
2018 Ford F-450 Super Duty
2019 Ford F-450 Super Duty
2020 Ford F-450 Super Duty
