Fox Shocks Shock Absorber - 985-24-117

Brand: Fox Shocks Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 985-24-117
  • Part Location: U.S.
  • Availability: 8 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by June 10
Retail: $321.29
Price: $305.99
You Save: $15.30
Adjustable
No
Body Color
Silver
Body Material
Aluminum
Compressed Length (IN)
14.7 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
23.8 Inch
Includes Boot
No
Includes Dust Shield
No
Includes Hardware
Yes
Internal Design
Monotube
Lower Mounting Style

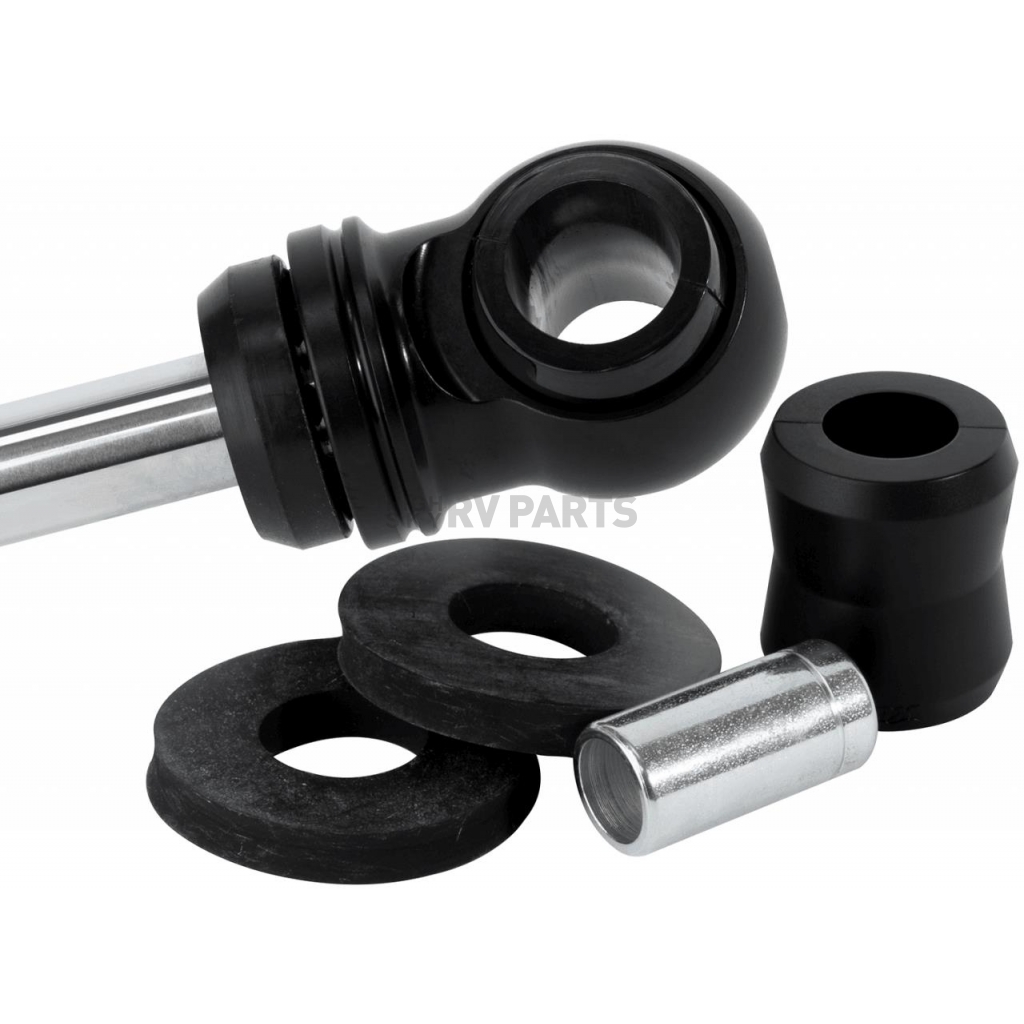

Eyelet
Share this page

Fox Shocks Shock Absorber

Shock Absorber; 2.0 Performance Series; Hydraulic/ Nitrogen Gas Charged; With External Reservoir; 1 Year Factory Warranty; Non Adjustable Valving; 23.8 Extended Height/ 14.7 Compressed Height; SM1 Top Mount/ EB4 Bottom Mount; Without Shock Boot; ALUMINUM; Single

MPN: 98524117

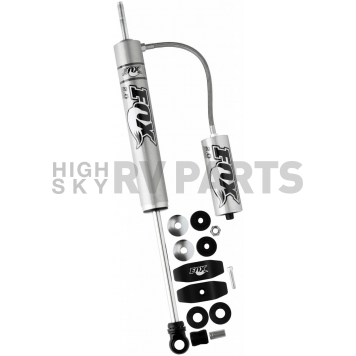

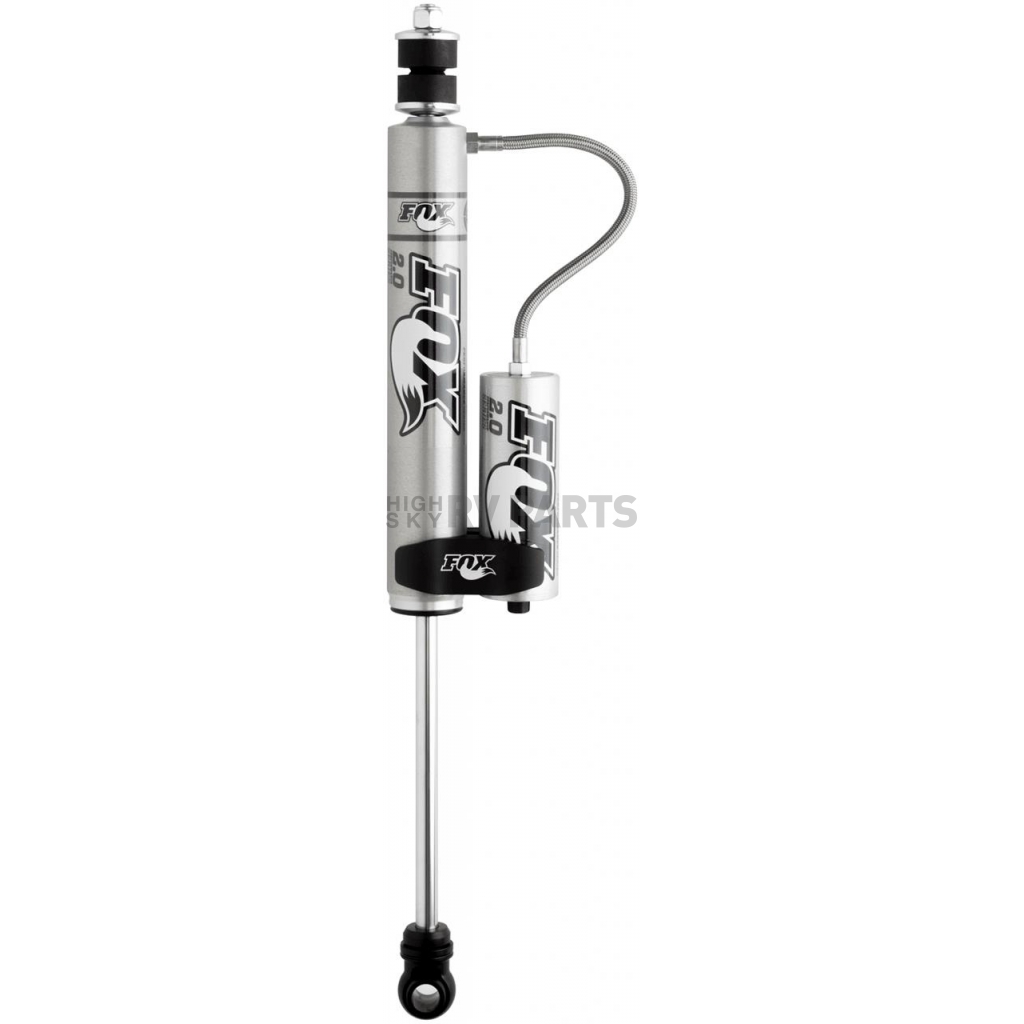

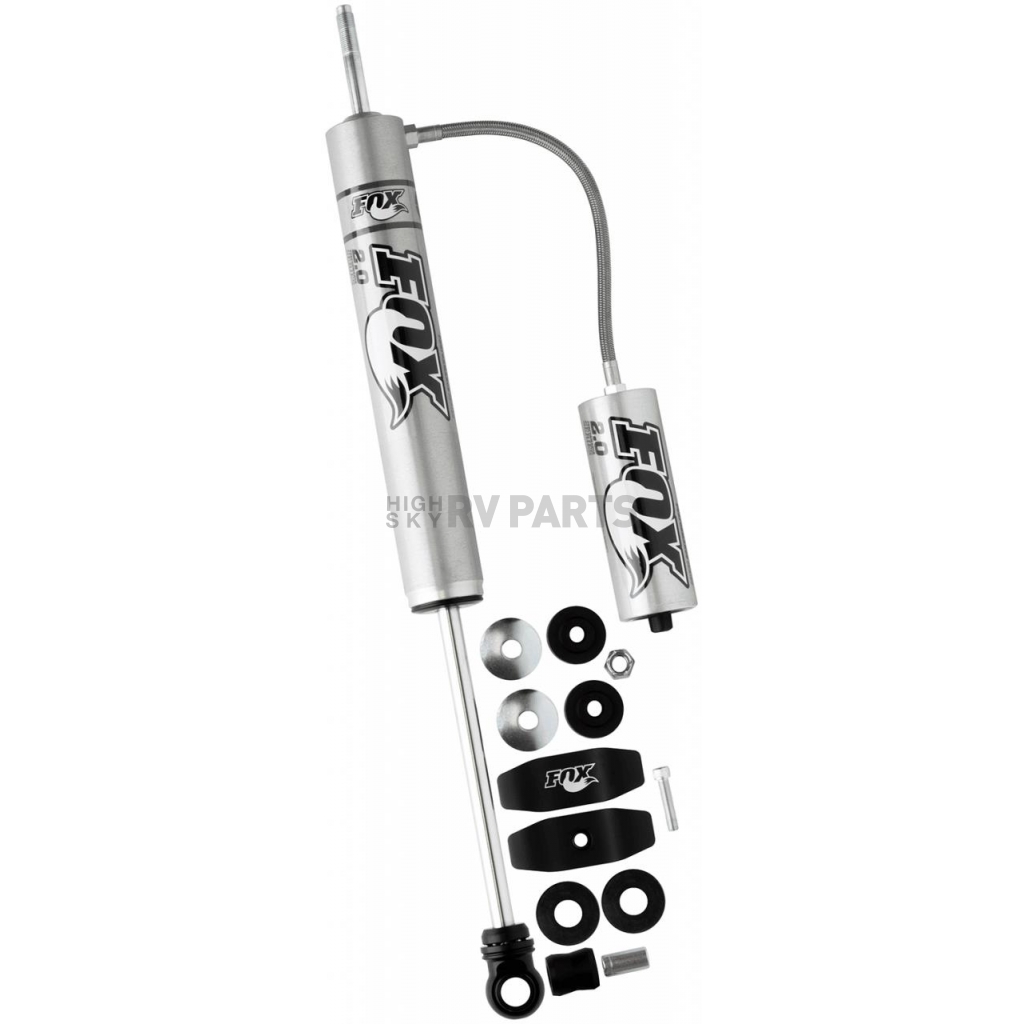

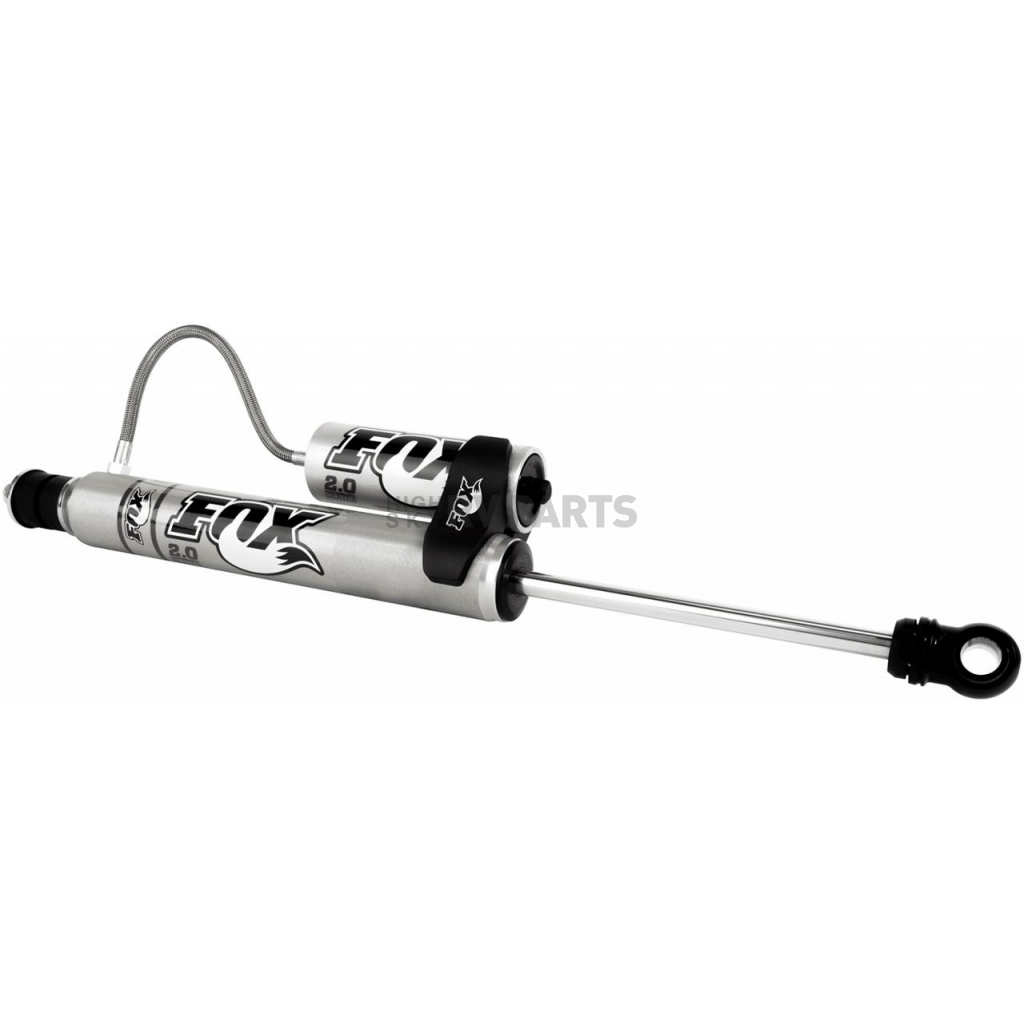

The aluminum bodied 2.0 Inch Performance Series Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the 2.0 Inch Performance Series Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Type: Hydraulic/ Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable: No
Extended Length (IN): 23.8 Inch
Compressed Length (IN): 14.7 Inch

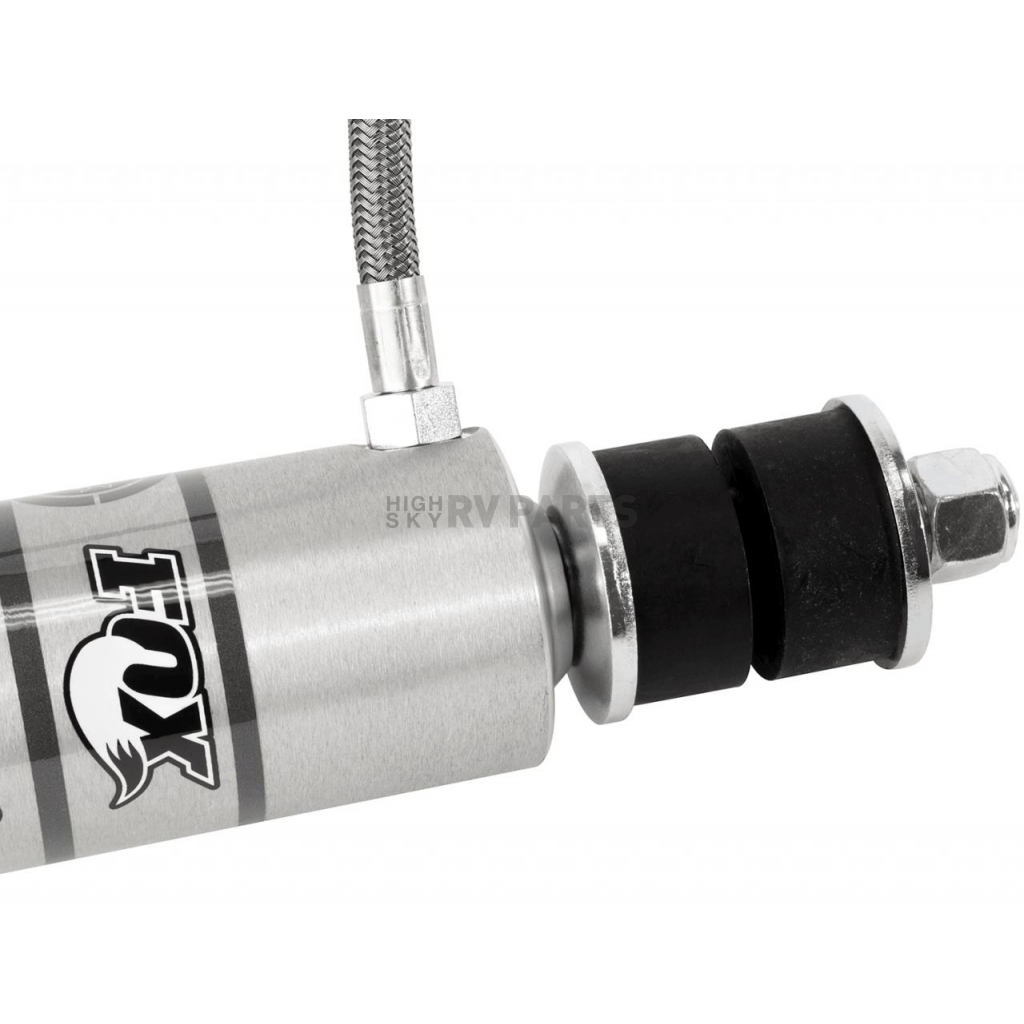

Upper Mounting Style: Stud
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 5/8 Inch
Valving Type: Application Specific Valving
Rod Finish: Chrome Plated
Rod Material: Steel
Body Material: Aluminum
With Reservoir: Yes
Includes Dust Shield: No
Includes Hardware: Yes
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • Body: 2.0 Inch Metal Impacted 6061-T6 Aluminum Will Resist Rust Over Time
  • Body Plating: Clear-Anodized For A Durable Finish
  • External Reservoir: 2.0 Inch Smooth Bore 6061-T6 Aluminum Is Hard Anodized
  • Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Components
  • 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Shaft
  • Race-Developed High-Flow Piston Design. Application Specific Valving To Maximize Performance
  • JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
  • Limited 1 Year Factory Warranty And Limited 90 Day Valving Warranty
Specifications of Fox Shocks Shock Absorber - 985-24-117
Adjustable No
Body Color Silver
Body Material Aluminum
Compressed Length (IN) 14.7 Inch
Estimated Install Time (Hours) 0.5
Extended Length (IN) 23.8 Inch
Includes Boot No
Includes Dust Shield No
Includes Hardware Yes
Internal Design Monotube
Lower Mounting Style Eyelet
Quantity Single
Rod Diameter (IN) 5/8 Inch
Rod Finish Chrome Plated
Rod Material Steel
Type Hydraulic/ Nitrogen Gas Charged
Upper Mounting Style Stud
Valving Type Application Specific Valving
With Coil Spring No
With Reservoir Yes

2003 Toyota 4Runner
2004 Toyota 4Runner
2005 Toyota 4Runner
2006 Toyota 4Runner
2007 Toyota 4Runner
2008 Toyota 4Runner
2009 Toyota 4Runner
2010 Toyota 4Runner
2011 Toyota 4Runner
2012 Toyota 4Runner
2013 Toyota 4Runner
2014 Toyota 4Runner
2015 Toyota 4Runner
2016 Toyota 4Runner
2017 Toyota 4Runner

2007 Toyota FJ Cruiser
2008 Toyota FJ Cruiser
2009 Toyota FJ Cruiser
2010 Toyota FJ Cruiser
2011 Toyota FJ Cruiser
2012 Toyota FJ Cruiser
2013 Toyota FJ Cruiser
2014 Toyota FJ Cruiser
