Fox Shocks Shock Absorber - 883-26-080

Brand: Fox Shocks Manufacturer

0 reviews

Have a product question? Ask us
Part Number: 883-26-080
Part Location: U.S.
Availability: Out Of Stock

Retail: $3,302.24

Price: $3,144.99

You Save: $157.25

Adjustable

Body Color

Black

Body Material

Aluminum

Compressed Length (IN)

15.78 Inch

Estimated Install Time (Hours)

Extended Length (IN)

24.55 Inch

Includes Boot

Includes Dust Shield

Includes Hardware

Lower Mounting Style

Eyelet

Quantity

Set Of 2

Share this page

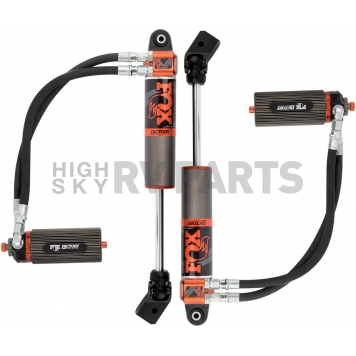

Fox Shocks Shock Absorber

Shock Absorber; 3.0 Factory Series; Hydraulic/ Nitrogen Gas Charged; With Remote Reservoir; Limited 1 Year Warranty; Dual Speed Compression Adjustable; Without Shock Boots; Zinc Plated; Set of 2

MPN: 88326080

The Factory Race Series 3.0 Internal Bypass shock delivers race-dominating, position-sensitive damping technology and performance in a hassle-free bolt-on kit. Patented, position-sensitive internal bypass technology contains regulated ports that allow fluid to bypass the piston as it moves through the initial travel, and then forces fluid through the piston at the extreme ranges of compression and rebound. This allows for a plush, predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs that could buck you off the trail.

Type: Hydraulic/ Nitrogen Gas Charged

With Coil Spring: No

Adjustable: Yes

Extended Length (IN): 24.55 Inch

Compressed Length (IN): 15.78 Inch

Upper Mounting Style: Eyelet

Lower Mounting Style: Eyelet

Body Color: Black

Quantity: Set Of 2

Rod Diameter (IN): 7/8 Inch

Valving Type: Dual Speed Compression Adjustable

Rod Finish: Chrome Plated

Rod Material: Stainless Steel

Body Material: Aluminum

With Reservoir: Yes

Includes Dust Shield: No

Includes Hardware: No

Includes Boot: No

Estimated Install Time (Hours): 0.5

Features

Body: 3.0 Inch Impact Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body Resists Corrosion And Weighs Less Than Steel
Body Plating: Hard-Anodized For A Durable Finish
Shaft: 7/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
Piston: Race-Developed High-Flow Piston Design
Valving: Application-Specific Valving To Maximize Performance
Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, And Scraper Seal Resist Leaks In Harsh Conditions
Oil: JM92 Advanced Suspension Fluid For Improved Performance At A Wide Range Of Temperatures
Bearing: PTFE-Lined, Heat-Treated, Alloy Steel Spherical Keep The Shock Movement Quiet And Smooth
Adjustments: Dual Speed Compression (DSC) Adjusters Allow Tool-Free High And Low-Speed Compression Adjustment
Limited 1 Year Warranty

Specifications of Fox Shocks Shock Absorber - 883-26-080
Adjustable	Yes
Body Color	Black
Body Material	Aluminum
Compressed Length (IN)	15.78 Inch
Estimated Install Time (Hours)	0.5
Extended Length (IN)	24.55 Inch
Includes Boot	No
Includes Dust Shield	No
Includes Hardware	No
Lower Mounting Style	Eyelet
Quantity	Set Of 2
Rod Diameter (IN)	7/8 Inch
Rod Finish	Chrome Plated
Rod Material	Stainless Steel
Type	Hydraulic/ Nitrogen Gas Charged
Upper Mounting Style	Eyelet
Valving Type	Dual Speed Compression Adjustable
With Coil Spring	No
With Reservoir	Yes
