Fox Shocks Coil Over Shock Absorber - 985-24-231
Adjustable
No
Compressed Height (IN)
16.05 Inch
Extended Height (IN)
26.65 Inch
Includes Mounting Hardware
No
Lower Mounting type
Eyelet
Quantity
Single
Shock Body Material
Aluminum
Spring Color
No Spring
Spring Finish
No Spring
Spring Height (IN)
No Spring
Spring Material
No Spring
Share this page

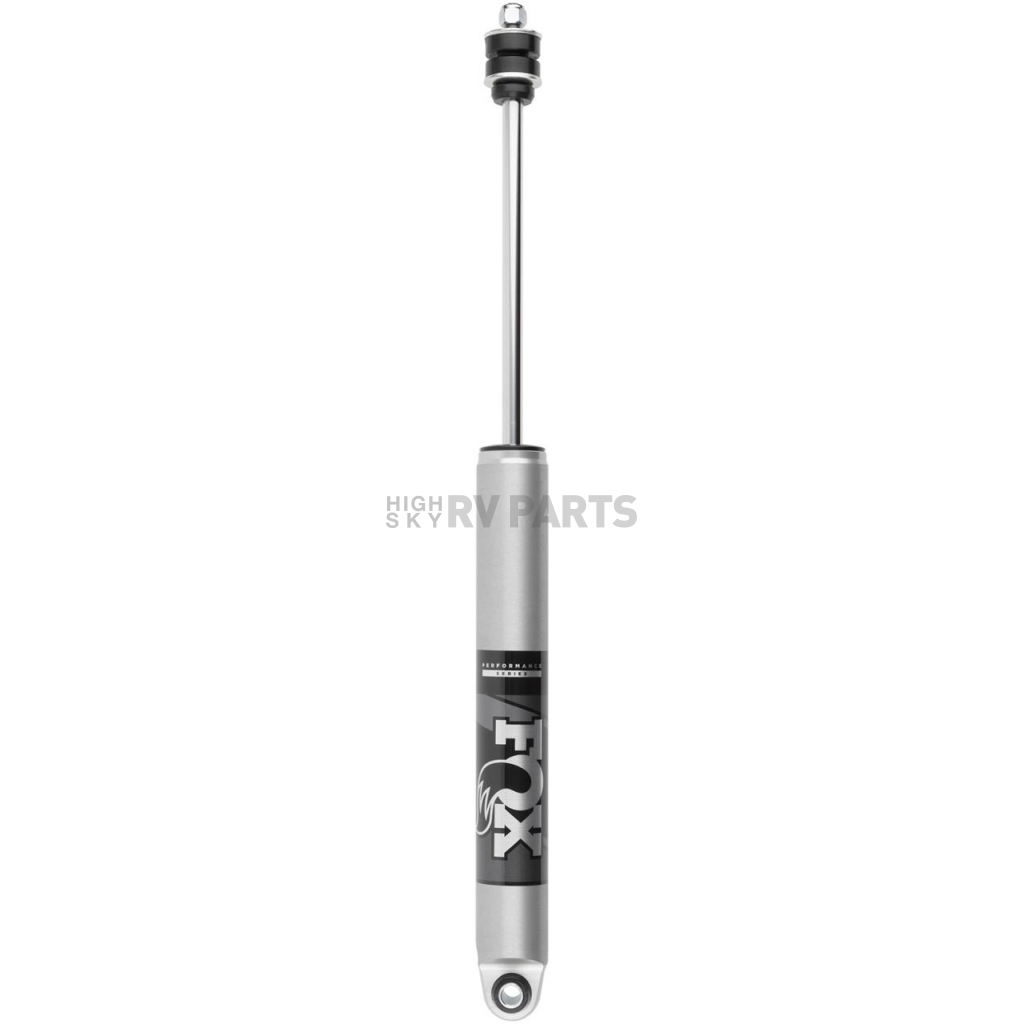

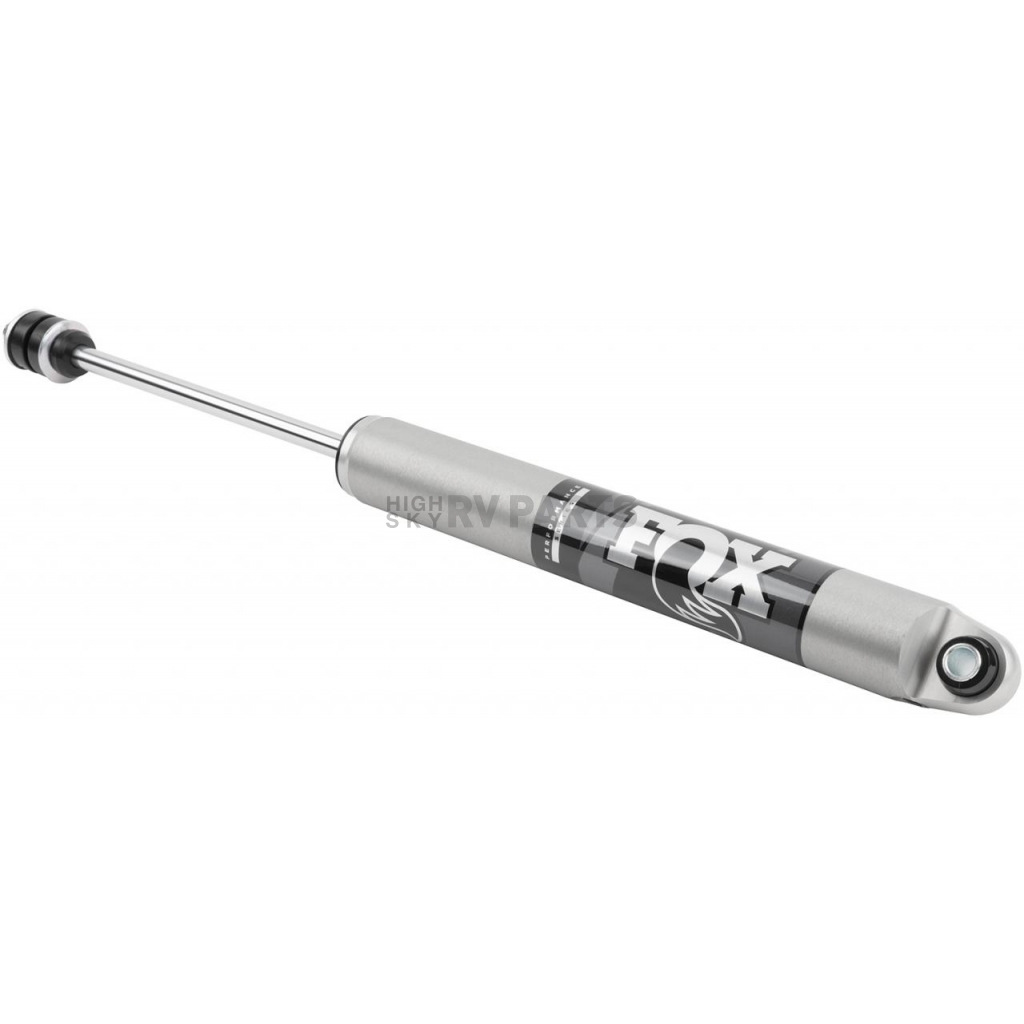

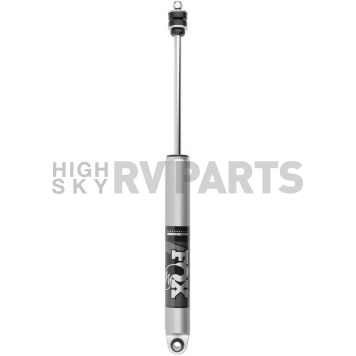

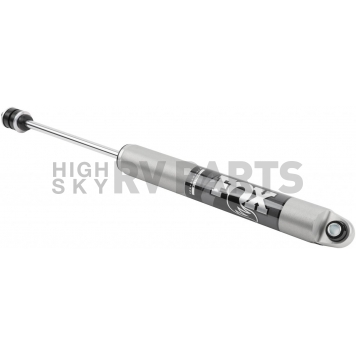

Fox Shocks Coil Over Shock Absorber
Coil Over Shock Absorber; 2.0 Performance Series; 0 To 2 Inch Lift; 26.65 Inch Extended Length; 16.05 Inch Compressed Length; 10.60 Inch Travel; Internal Floating Piston Reservoir; Single
MPN: 98524231
Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration. Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock. Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
Adjustable: No
Upper Mounting Type: Stud
Lower Mounting type: Eyelet
Extended Height (IN): 26.65 Inch
Compressed Height (IN): 16.05 Inch
Shock Body Material: Aluminum
Spring Height (IN): No Spring
Spring Rate: No Spring
Spring Style: No Spring
Spring Finish: No Spring
Spring Color: No Spring
Spring Material: No Spring
Includes Mounting Hardware: No
Quantity: Single
Features
- CNC Machined 6061-T6 Clear Anodized Aluminum One-Piece Body Resists Rust Over Time
- Internal IFP Mono-Tube Reservoir Design
- Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
- Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
- Limited 1 Year Warranty
Specifications of Fox Shocks Coil Over Shock Absorber - 985-24-231 | |
Adjustable | No |
Compressed Height (IN) | 16.05 Inch |
Extended Height (IN) | 26.65 Inch |
Includes Mounting Hardware | No |
Lower Mounting type | Eyelet |
Quantity | Single |
Shock Body Material | Aluminum |
Spring Color | No Spring |
Spring Finish | No Spring |
Spring Height (IN) | No Spring |
Spring Material | No Spring |
Spring Rate | No Spring |
Spring Style | No Spring |
Upper Mounting Type | Stud |
2019 Ram 1500- New Model
2020 Ram 1500- New Model
2021 Ram 1500- New Model
2020 Ram 1500- New Model
2021 Ram 1500- New Model
