Fox Shocks Coil Over Shock Absorber - 98302105
Adjustable
No
Compressed Height (IN)
23.44 Inch
Extended Height (IN)
37.45 Inch
Lower Mounting type
Eyelet
Quantity
Single
Shock Body Color
Black/ Silver
Shock Body Material
6061-T6 Billet Aluminum
Shock Type
Hydraulic
Spring Color
No Spring
Spring Finish
No Spring
Spring Height (IN)
No Spring
Share this page

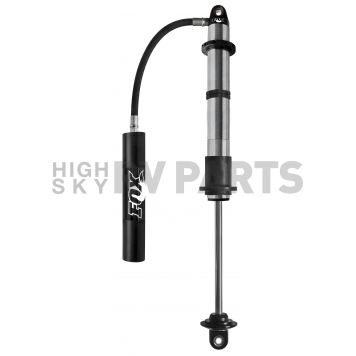

Coil Over Shock Absorber; 2.5 Performance Series; Non Adjustable Valving; 37.450 Inch Extended Height/ 23.440 Inch Compressed Height; 0.5 Inch x 1.50 Inch Mounting Bolt Width; Without Coil Spring; Zinc Plated; With Remote Reservoir; Single
MPN: 983-02-105
FOX's, Off-road Performance Series Coil-Over shock takes advantage of our tried and true Coil-Over design and incorporates features like the precision machined aluminum body with increases cooling capacity and will never rust. Locking, spring preload rings allow easy ride height and preload adjustment and retain the top quality, racing coil selected to deliver your optimal spring rate. FOX's Off-road Performance Series Coil-Over shock will suspend your vehicles weight and provide our race-proven, performance damping technology to tame the toughest terrain. If you are looking for a comfortable ride and predictable off-road handling, look no further. FOX Off-road Performance Series Coil-Overs are just what you need.Adjustable: No
Valving Type: Proprietary Deburred Valving
Shock Type: Hydraulic
Upper Mounting Type: Eyelet
Lower Mounting type: Eyelet
Extended Height (IN): 37.45 Inch
Compressed Height (IN): 23.44 Inch
Shock Body Color: Black/ Silver
Shock Body Material: 6061-T6 Billet Aluminum
Quantity: Single
Spring Height (IN): No Spring
Spring Rate: No Spring
Spring Style: No Spring
Spring Finish: No Spring
Spring Color: No Spring
Spring Material: No Spring
Features
- Body: Smooth-Bore, Zinc Plated, Honed Seamless Alloy Bodies
- Components: Black Anodized 6061-T6 Billet Aluminum
- Shaft: 7/8 Inch Hard Chrome Plated Heat Treated Alloy Steel
- Piston: Race-Developed High-Flow Piston Design
- Valving: Tuneable Velocity-Sensitive Deburred Valve Shims
- Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
- Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
- Hose: Braided Steel Hose For Maximum Durability With High-Flow Fittings
- Bearings: Replaceable PTFE-Lined, Heat Treaded, Alloy Steel Spherical. 1/2 Inch Bolt X 1-1/4 Inch Wide
- Limited 1 Year Warranty
Specifications of Fox Shocks Coil Over Shock Absorber - 98302105 | |
Adjustable | No |
Compressed Height (IN) | 23.44 Inch |
Extended Height (IN) | 37.45 Inch |
Lower Mounting type | Eyelet |
Quantity | Single |
Shock Body Color | Black/ Silver |
Shock Body Material | 6061-T6 Billet Aluminum |
Shock Type | Hydraulic |
Spring Color | No Spring |
Spring Finish | No Spring |
Spring Height (IN) | No Spring |
Spring Material | No Spring |
Spring Rate | No Spring |
Spring Style | No Spring |
Upper Mounting Type | Eyelet |
Valving Type | Proprietary Deburred Valving |
