Fox Shocks Coil Over Shock Absorber - 88306165

Brand: Fox Shocks Manufacturer
  • Have a product question? Ask us
  • Part Number: 883-06-165
  • Part Location: U.S.
  • Availability: Out Of Stock
Retail: $2,308.94
Price: $2,198.99
You Save: $109.95
Adjustable
 Yes
Compressed Height (IN)
 17.78 Inch
Extended Height (IN)
 23.28 Inch
Lower Mounting type
 Clevis Pin
Quantity
 Set Of 2
Shock Body Color
 Black And Silver
Shock Body Material
 Aluminum
Spring Style
 Single Flat End
Upper Mounting Type
 OEM
Share this page

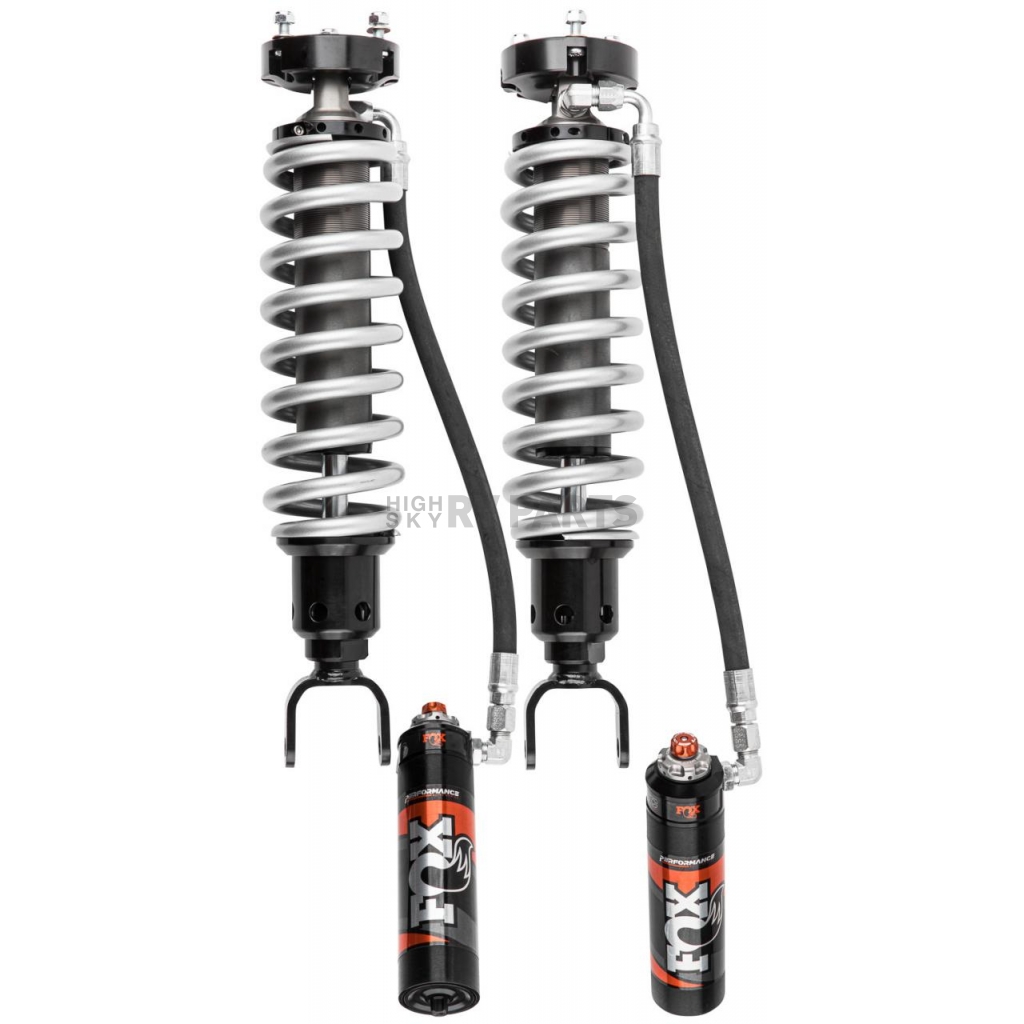

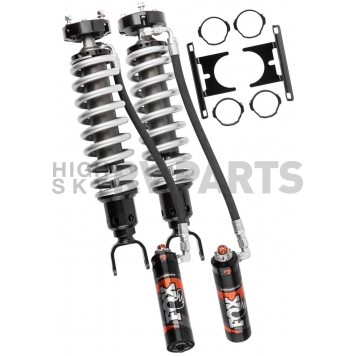

Coil Over Shock Absorber; 2.5 Performance Series; Dual Speed Compression (DSC) Adjustment For High And Low Speed Dampening; Ride Height Adjustable 0 To 2 Inch Lift; Single Flat End Coil Spring; Black And Silver; With Remote Reservoir/ Shock Absorber/ Adjustment Collar/ Adjustment Knob/ Spring; Set Of 2

MPN: 883-06-165

FOX's, Off-road Performance Series Coil-Over shock takes advantage of our tried and true Coil-Over design and incorporates features like the precision machined aluminum body with increases cooling capacity and will never rust. Locking, spring preload rings allow easy ride height and preload adjustment and retain the top quality, racing coil selected to deliver your optimal spring rate. FOX's Off-road Performance Series Coil-Over shock will suspend your vehicles weight and provide our race-proven, performance damping technology to tame the toughest terrain. If you are looking for a comfortable ride and predictable off-road handling, look no further. FOX Off-road Performance Series Coil-Overs are just what you need.

Adjustable: Yes
Upper Mounting Type: OEM
Lower Mounting type: Clevis Pin
Extended Height (IN): 23.28 Inch
Compressed Height (IN): 17.78 Inch
Shock Body Color: Black And Silver
Shock Body Material: Aluminum
Quantity: Set Of 2
Spring Style: Single Flat End

Features

  • Body: Smooth-Bore, Zinc Plated, Honed Seamless Alloy Bodies
  • Components: Black Anodized 6061-T6 Billet Aluminum
  • Shaft: 7/8 Inch Hard Chrome Plated Heat Treated Alloy Steel
  • Piston: Race-Developed High-Flow Piston Design
  • Valving: Tunable Velocity-Sensitive Deburred Valve Shims
  • Seals: Redundant Sealing Pack System, Main Seal, Wiper Seal, Scraper Seal
  • Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
  • Hose: Braided Steel Hose For Maximum Durability With High-Flow Fittings
  • Bearings: Replaceable PTFE-Lined, Heat Treaded, Alloy Steel Spherical. 1/2 Inch Bolt X 1-1/4 Inch Wide
  • Limited 1 Year Warranty
Specifications of Fox Shocks Coil Over Shock Absorber - 88306165
Adjustable  Yes
Compressed Height (IN)  17.78 Inch
Extended Height (IN)  23.28 Inch
Lower Mounting type  Clevis Pin
Quantity  Set Of 2
Shock Body Color  Black And Silver
Shock Body Material  Aluminum
Spring Style  Single Flat End
Upper Mounting Type  OEM

2019 Ram 1500- New Model
2020 Ram 1500- New Model
2021 Ram 1500- New Model
