Fox Shocks Coil Over Shock Absorber - 88306140

Brand: Fox Shocks Manufacturer

Have a product question? Ask us
Part Number: 883-06-140
Part Location: U.S.
Availability: 1 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by May 27

Retail: $3,611.99

Price: $3,439.99

You Save: $172.00

Adjustable

Compressed Height (IN)

21.18 Inch

Extended Height (IN)

29.08 Inch

Lower Mounting type

Eyelet

Quantity

Set Of 2

Shock Body Color

Silver

Shock Body Material

Steel

Spring Height (IN)

3-3/4 Inch

Spring Style

Single Flat End

Upper Mounting Type

Strut

Share this page

Coil Over Shock Absorber; 3.0 Factory Series; Dual Speed Compression (DSC) Adjustment; Adjustable 0 To 2 Inch Lift; Single Flat End Coil Spring; Black/ Silver/ Orange; With Remote Reservoir; Set Of 2

MPN: 883-06-140

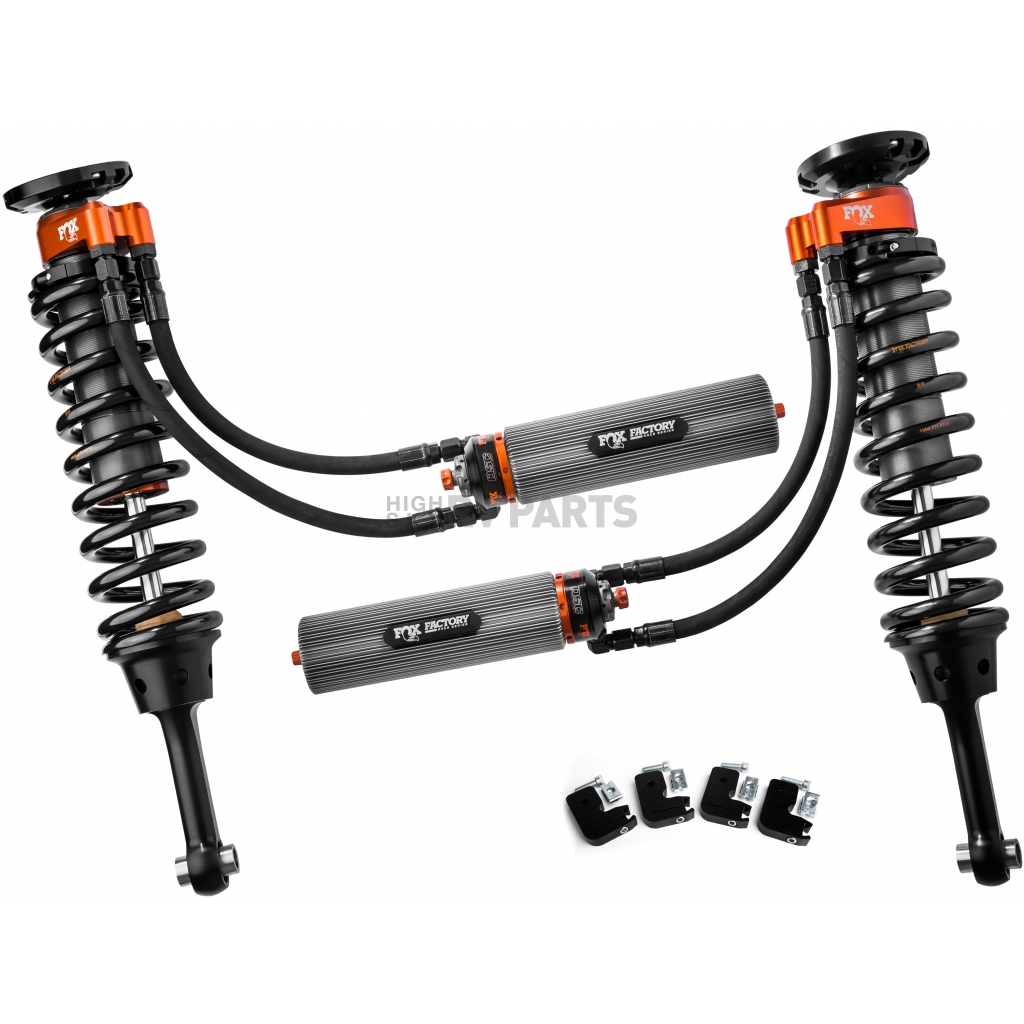

Take your Gen 2 Raptor to the next level with this Factory Race Series front upgrade kit, designed to deliver a high level of adjustability via Dual Speed Compression (DSC) adjusters and improved cooling efficiency through an all-new Recirculating Reservoir Bridge and finned remote reservoir. This kit delivers the next level of off-road performance without sacrificing every day ride quality and comfort.

Adjustable: Yes

Upper Mounting Type: Strut

Lower Mounting type: Eyelet

Extended Height (IN): 29.08 Inch

Compressed Height (IN): 21.18 Inch

Shock Body Color: Silver

Shock Body Material: Steel

Quantity: Set Of 2

Spring Height (IN): 3-3/4 Inch

Spring Style: Single Flat End

Features

Hard Anodized 6061-T6 Billet Aluminum High Flow Race Piston
Redundant Sealing Pack System, Main Seal
Bearing: Spherical, PFTE-Lined, Heat-Treated Steel
Dual Speed Compression (DSC) Adjuster
Adjustments: Dual Speed Compression (DSC) Adjuster And Ride-Height Or Spring Preload Ring
Oil: JM92 Advanced Suspension Fluid
New, Hard Anodized Extruded Aluminum Finned Remote Reservoir With New Recirculating Reservoir Bridge
Heat Treated Steel Spherical Heim Mounting
3.75 Inch Racing Spring Selected Specifically For The Gen 2 Raptor, Preset To Level Your Stock Raptor Front-To-Rear
Limited 1 Year Warranty

Specifications of Fox Shocks Coil Over Shock Absorber - 88306140
Adjustable	Yes
Compressed Height (IN)	21.18 Inch
Extended Height (IN)	29.08 Inch
Lower Mounting type	Eyelet
Quantity	Set Of 2
Shock Body Color	Silver
Shock Body Material	Steel
Spring Height (IN)	3-3/4 Inch
Spring Style	Single Flat End
Upper Mounting Type	Strut
