Flex-A-Lite Fluid Cooler - 104121
Color
Black
Condition
New
Construction
Plate And Fin
Fan CFM Rating
800 Cubic Feet Per Minute
Fan Diameter
6-1/2 Inch
Finish
Powder Coated
Inlet Attachment
Female Threaded
Inlet Size
7/8-14 Inch
Material
Aluminum
Number Of Cooling Rows
21
Outlet Attachment
Female Threaded
Share this page

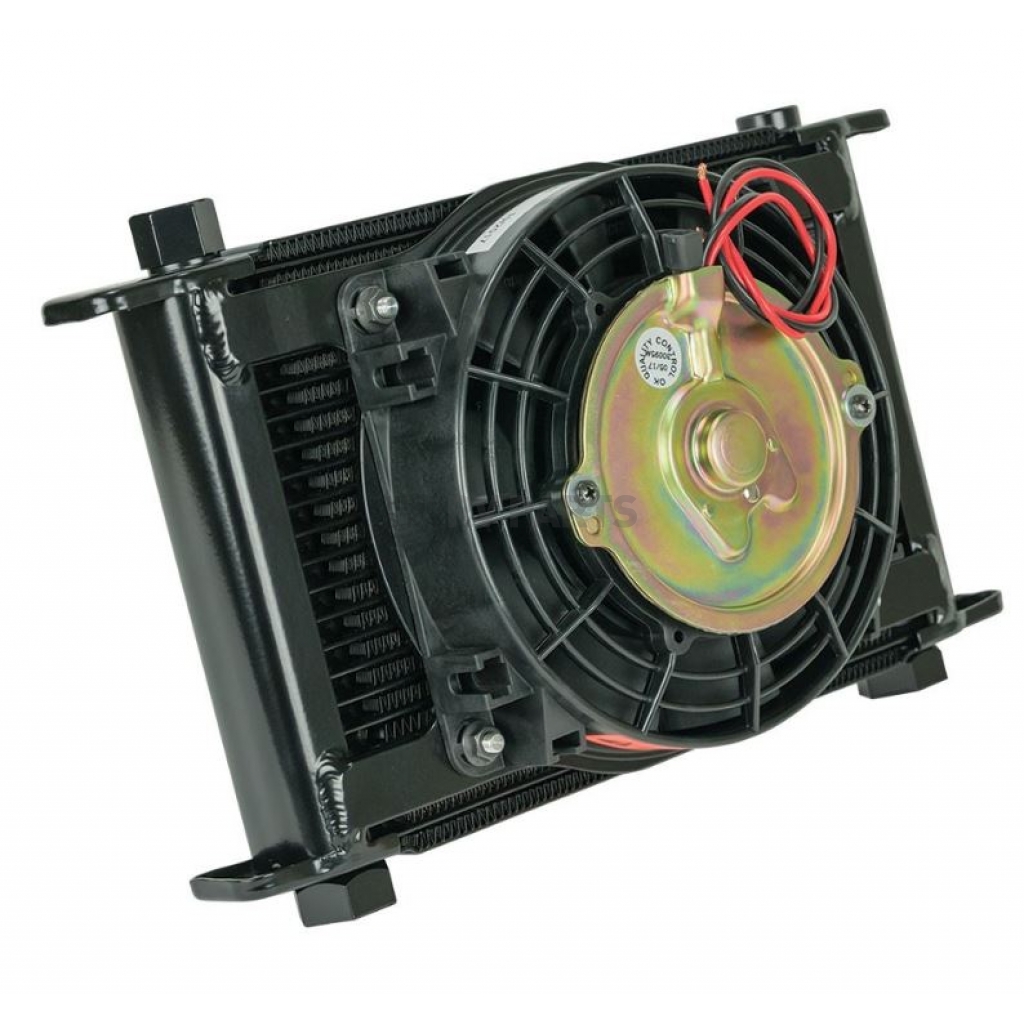

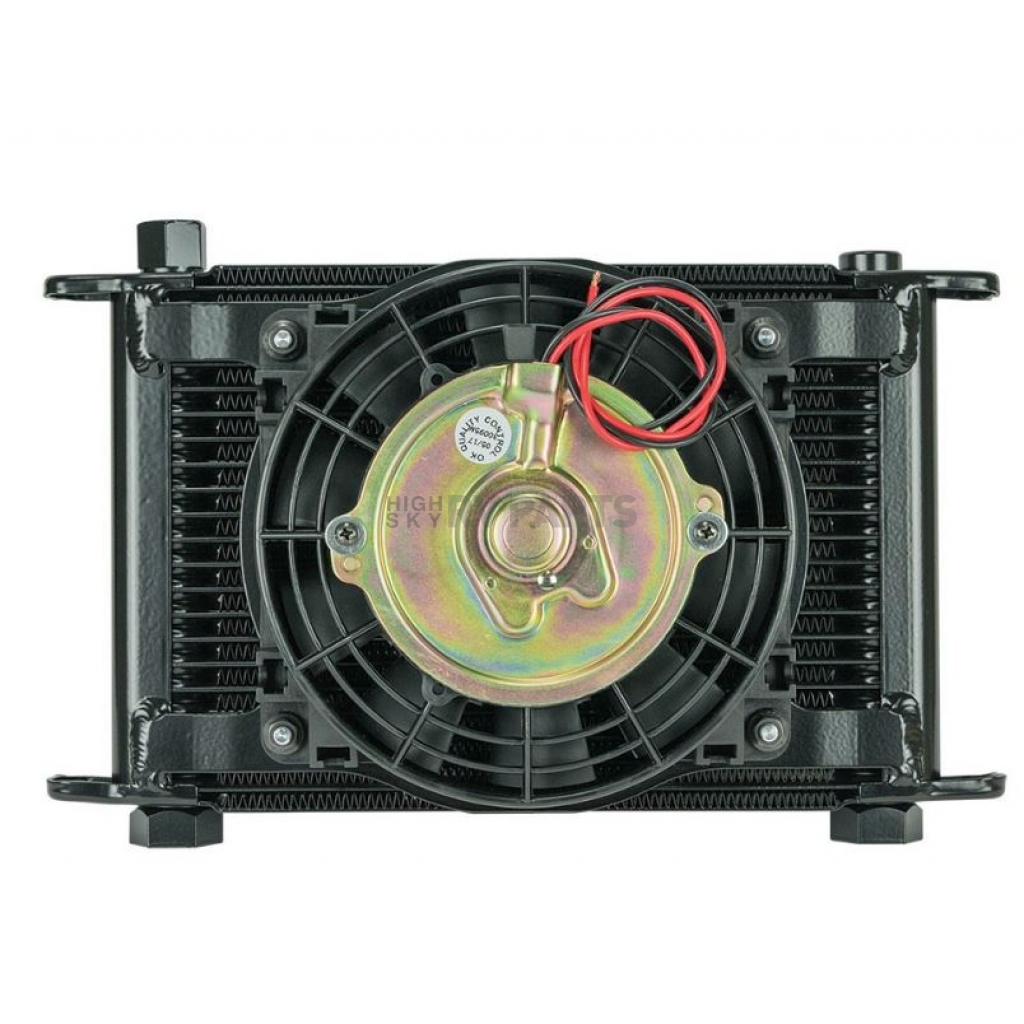

Flex-A-Lite Fluid Cooler
Fluid Cooler; Engine Oil Cooler; 11 Inch X 7-1/2 Inch X 4-1/4 Inch; 21 Row; With Interchangeable 8/10/12 AN Fittings/ O-Rings/ Mounted 6.5 Inch Electric Fan
MPN: 104121
This Flex-A-Lite stacked-plate, 21-row engine-oil cooler provides superior cooling through advanced technology. It is designed for remote mounting and comes with a 6.5-Inch electric fan mounted. This cooler is ideal for heavy-duty car applications, including racing, and pickup trucks that tow.
Condition: New
Recommended Use: Engine Oil
Construction: Plate And Fin
Overall Height (IN): 4-1/4 Inch
Overall Width (IN): 11 Inch
Overall Depth (IN): 4-1/4 Inch
Number Of Cooling Rows: 21
Inlet Attachment: Female Threaded
Inlet Size: 7/8-14 Inch
Outlet Attachment: Female Threaded
Outlet Size: 7/8-14 Inch
Finish: Powder Coated
Color: Black
Material: Aluminum
With Fan: Yes
Fan CFM Rating: 800 Cubic Feet Per Minute
Fan Diameter: 6-1/2 Inch
With Mounting Hardware: Yes
Features
- Efficiency, Modern Design, Maximum Performance – Engine-Oil Coolers Bring Performance Cooling To Demanding Engine Applications
- Engine Oil Coolers Provide Up To 4 Times The Heat Rejection Compared To Typical Low-Cost Coolers
- In Harsh Conditions, Engine-Coolant Alone Isn’t Enough To Protect The Engine Oil And Internal Components From Premature Wear Or Failure
- Engine Oil Coolers Use Turbulized Fins Inserted Into The Internal Cooling Plates And Louvered Fins For Heat Transfer To The Air
- The Thick, 13/4-Inch Core Minimizes Oil-Pressure Drop Through The Cooler While Maximizing Heat Transfer
- 21-Row Engine-Oil Cooler Is Designed For Remote Mounting
- Limited 1 Year Warranty
Specifications of Flex-A-Lite Fluid Cooler - 104121 | |
Color | Black |
Condition | New |
Construction | Plate And Fin |
Fan CFM Rating | 800 Cubic Feet Per Minute |
Fan Diameter | 6-1/2 Inch |
Finish | Powder Coated |
Inlet Attachment | Female Threaded |
Inlet Size | 7/8-14 Inch |
Material | Aluminum |
Number Of Cooling Rows | 21 |
Outlet Attachment | Female Threaded |
Outlet Size | 7/8-14 Inch |
Overall Depth (IN) | 4-1/4 Inch |
Overall Height (IN) | 4-1/4 Inch |
Overall Width (IN) | 11 Inch |
Recommended Use | Engine Oil |
With Fan | Yes |
With Mounting Hardware | Yes |
