Flex-A-Lite Cooling Fan 116524
Amperage Draw
28 Amp
Blade Color
Black
Blade Material
Plastic
Condition
New
Controller Type
Variable Speed Control With Air Conditioning Relay
Depth
4 Inch
Diameter
13-1/2 Inch
Fuse Rating
40 Amp
Height
17-1/2 Inch
Maximum CFM
4600 Cubic Feet Per Minute
Maximum RPM
2100 RPM
Share this page

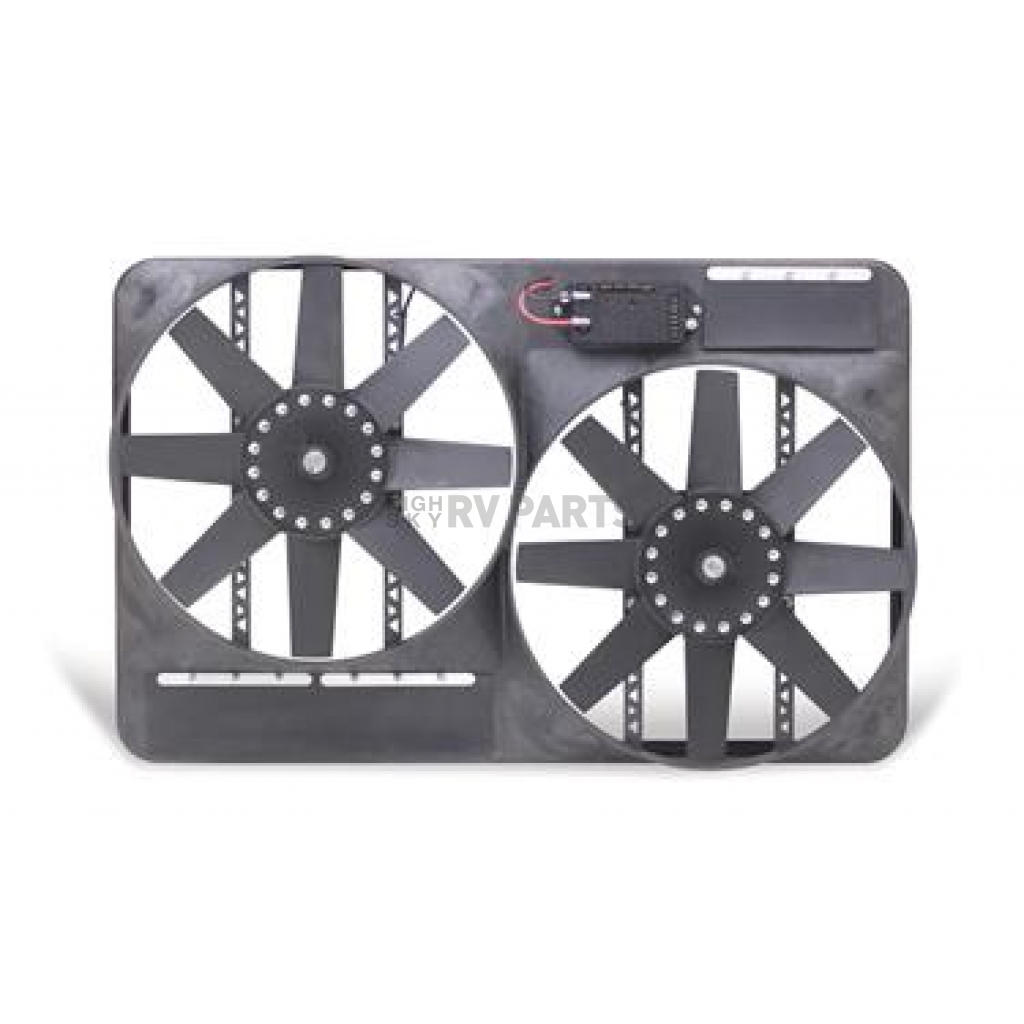

Flex-A-Lite Cooling Fan
Cooling Fan; Electric; 2740-4600 Cubic Feet Per Minute; Dual 13-1/2 Inch Diameter Fan/ 27-1/2 Inch Length x 17-1/2 Inch Height x 4 Inch Depth Housing; 8 Blade; 1260-2100 Rotations Per Minute; With Plastic Shroud; Variable Speed Controls
MPN: 116524
This is newest fan, designed to fit mid-size domestic cars, trucks and SUVs. These 27 Inch electric fans are configured to maximize the radiator coverage on these vehicles while providing the largest air moving capacity Possible.
Condition: New
Type: Electric
Diameter: 13-1/2 Inch
Height: 17-1/2 Inch
Width: 27-1/2 Inch
Depth: 4 Inch
Maximum CFM: 4600 Cubic Feet Per Minute
Maximum RPM: 2100 RPM
Rotation Direction: Pusher
Amperage Draw: 28 Amp
Fuse Rating: 40 Amp
Number Of Blades: 8
Blade Color: Black
Blade Material: Plastic
Shroud Material: Plastic
Voltage: 12 Volt
Controller Type: Variable Speed Control With Air Conditioning Relay
Features
- Powerful Twin 13.5 Inch Fans In A Compact Package
- One Piece Glass Reinforced Nylon Shroud With Full Contact Rubber Seal
- Built-In Variable Speed Control Module With Adjustable Thermostat And A/C Relay And Manual Switch Connection
- Variable Speed Control Operates The Fan From 60 Percent To 100 Percent
- Airflow Flaps Allow Maximum Ram Air Cooling While Fan Is Not Operating
- Cooler A/C Output
- Limited 1 Year Warranty
Specifications of Flex-A-Lite Cooling Fan 116524 | |
Amperage Draw | 28 Amp |
Blade Color | Black |
Blade Material | Plastic |
Condition | New |
Controller Type | Variable Speed Control With Air Conditioning Relay |
Depth | 4 Inch |
Diameter | 13-1/2 Inch |
Fuse Rating | 40 Amp |
Height | 17-1/2 Inch |
Maximum CFM | 4600 Cubic Feet Per Minute |
Maximum RPM | 2100 RPM |
Number Of Blades | 8 |
Rotation Direction | Pusher |
Shroud Material | Plastic |
Type | Electric |
Voltage | 12 Volt |
Width | 27-1/2 Inch |
