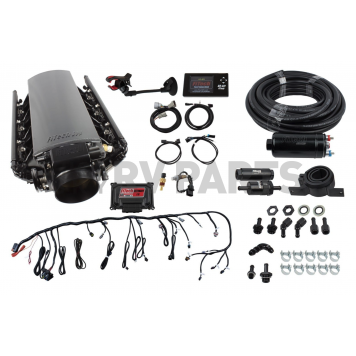

FiTech Ultimate LS3/L92 750HP w/ Trans Control + In-line Fuel Pump Master Kit - 71014
FiTech Fuel Injection System
Fuel Injection System; Ultimate LS Induction System; For Use On LS3/ L92 Engines; Throttle Body Injection; 750 Horsepower Rating; Matte Black; With Transmission Control For 4L60/ 4L65/ 4L70/ 4L80 Transmissions; With Low Profile Fabricated Aluminum Intake Manifold/ 102 Millimeter Cable Operated Throttle Body/ 66 LB Flow Matched Injectors/ Billet Fuel Rails/ Self Learning ECU/ Touch Screen Controller/ Wire Harness/ 3 Bar MAP Sensor That Detects Up To 30 PSI Boost/ Knock Sensor Control/ IAC Sensor/ TPS Sensor/ Dual Bosch Wide Band With Trim Control/ Fuel Pump/ Fuel Hose/ Black Hose Ends
MPN: 71014
Features
- TIG Welded Construction, Black Anodized With Embossed Fitech Logo
- Parabolic Inlet Machining For Smooth Throttle Transitions Same As OE
- Throttle Body Features Progressive Linkage Pulley With Double Return Spring And Adjustable Stop
- Self Learning ECU With Touch Screen Controller For Easy Setup And Configuration
- Windshield Mount For Control
- On The Fly Programmable Target AFR And Timing (If Desired)
- Programmable Color Touch Screen Hand Held Controller With Data Log Features
- Limited 1 Year Warranty
Specifications of FiTech Ultimate LS3/L92 750HP w/ Trans Control + In-line Fuel Pump Master Kit - 71014 | |
Air Flow Rate | 1000 Cubic Feet Per Minute |
Aspiration | Supercharged/ Turbocharged |
Cylinder Head Compatibility | Rectangular Port Cylinder Head |
Engine Compatibility | GM LS1/ LS2/ LS6 Engines |
Fuel Injection Type | Throttle Body |
Includes Calibration Module | No |
Includes Distributor | No |
Includes ECM | No |
Includes Fuel Pressure Regulator | No |
Includes Fuel Pump | Yes |
Includes Fuel Rails | Yes |
Includes Gaskets | No |
Includes IAC Motor | No |
Includes IAT Sensor | No |
Includes Intake Manifold | Yes |
Includes MAP Sensor | Yes |
Includes Oxygen Sensor | Yes |
Includes TPS Sensor | Yes |
Includes Wiring Harness | Yes |
Injector Size (LB/HR) | 55 Pounds Per Hour |
Intake Manifold Finish | Anodized |
Intake Manifold Material | Aluminum |
Metering Type | Speed Density |
Throttle Body Finish | Matte |
Throttle Body Material | Aluminum |
Venturi Diameter (MM) | 102 Millimeter |
Venturi Quantity | 1 |
1900-1900 Chevrolet LS Small Block Gen 4 2005+
