FiTech Ultimate LS1/LS2/LS6 750HP + In-line Fuel Pump Master Kit - 71003

Brand: FiTech

0 reviews

Have a product question? Ask us
Part Number: 71003
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 25

Retail: $3,291.74

Price: $3,134.99

You Save: $156.75

Air Flow Rate

1000 Cubic Feet Per Minute

Aspiration

Supercharged/ Turbocharged

Cylinder Head Compatibility

Rectangular Port Cylinder Head

Engine Compatibility

GM LS1/ LS2/ LS6 Engines

Fuel Injection Type

Throttle Body

Includes Calibration Module

Includes Distributor

Includes ECM

Includes Fuel Pressure Regulator

Includes Fuel Pump

Includes Fuel Rails

Share this page

FiTech Fuel Injection System

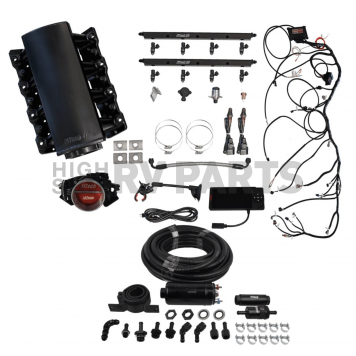

Fuel Injection System; Ultimate LS Induction System; For Use On LS1/ LS2/ LS6 Engines; Throttle Body Injection; 750 Horsepower Rating; Matte Black; Without Transmission Control; With Low Profile Fabricated Aluminum Intake Manifold/ 102 Millimeter Cable Operated Throttle Body/ 66 LB Flow Matched Injectors/ Billet Fuel Rails/ Self Learning ECU/ Touch Screen Controller/ Wire Harness/ 3 Bar MAP Sensor That Detects Up To 30 PSI Boost/ Knock Sensor Control/ IAC Sensor/ TPS Sensor/ Dual Bosch Wide Band With Trim Control/ Fuel Pump/ Fuel Hose/ Black Hose Ends

MPN: 71003

FiTech EFI continues to bring the highest quality products to the market at the most competitive prices. The Ultimate LS Induction System features the same industry leading EFI control that is in all FiTech EFI systems. FiTech EFI has more fuel injection systems in use than any aftermarket fuel injection company. Let that industry leading technology work for you in your LS powered vehicle.

Engine Compatibility: GM LS1/ LS2/ LS6 Engines

Cylinder Head Compatibility: Rectangular Port Cylinder Head

Aspiration: Supercharged/ Turbocharged

Fuel Injection Type: Throttle Body

Metering Type: Speed Density

Includes Intake Manifold: Yes

Intake Manifold Finish: Anodized

Intake Manifold Material: Aluminum

Includes Fuel Rails: Yes

Throttle Body Finish: Matte

Throttle Body Material: Aluminum

Venturi Quantity: 1

Venturi Diameter (MM): 102 Millimeter

Air Flow Rate: 1000 Cubic Feet Per Minute

Injector Size (LB/HR): 55 Pounds Per Hour

Includes Calibration Module: No

Includes ECM: No

Includes Wiring Harness: Yes

Includes Fuel Pump: Yes

Includes Fuel Pressure Regulator: No

Includes Distributor: No

Includes Oxygen Sensor: Yes

Includes TPS Sensor: Yes

Includes IAT Sensor: No

Includes MAP Sensor: Yes

Includes IAC Motor: No

Includes Gaskets: No

Features

TIG Welded Construction, Black Anodized With Embossed Fitech Logo
Parabolic Inlet Machining For Smooth Throttle Transitions Same As OE
Throttle Body Features Progressive Linkage Pulley With Double Return Spring And Adjustable Stop
Self Learning ECU With Touch Screen Controller For Easy Setup And Configuration
Windshield Mount For Control
On The Fly Programmable Target AFR And Timing (If Desired)
Programmable Color Touch Screen Hand Held Controller With Data Log Features
Limited 1 Year Warranty

Specifications of FiTech Ultimate LS1/LS2/LS6 750HP + In-line Fuel Pump Master Kit - 71003
Air Flow Rate	1000 Cubic Feet Per Minute
Aspiration	Supercharged/ Turbocharged
Cylinder Head Compatibility	Rectangular Port Cylinder Head
Engine Compatibility	GM LS1/ LS2/ LS6 Engines
Fuel Injection Type	Throttle Body
Includes Calibration Module	No
Includes Distributor	No
Includes ECM	No
Includes Fuel Pressure Regulator	No
Includes Fuel Pump	Yes
Includes Fuel Rails	Yes
Includes Gaskets	No
Includes IAC Motor	No
Includes IAT Sensor	No
Includes Intake Manifold	Yes
Includes MAP Sensor	Yes
Includes Oxygen Sensor	Yes
Includes TPS Sensor	Yes
Includes Wiring Harness	Yes
Injector Size (LB/HR)	55 Pounds Per Hour
Intake Manifold Finish	Anodized
Intake Manifold Material	Aluminum
Metering Type	Speed Density
Throttle Body Finish	Matte
Throttle Body Material	Aluminum
Venturi Diameter (MM)	102 Millimeter
Venturi Quantity	1
