FiTech Ultimate LS 500 HP EFI System With Short LS3 Port Intake Fuel Injection System - 70011
Air Flow Rate
1000 Cubic Feet Per Minute
Aspiration
Supercharged/ Turbocharged
Cylinder Head Compatibility
Rectangular Port Cylinder Head
Engine Compatibility
GM LS3/ L92 Series
Fuel Injection Type
Throttle Body
Includes Calibration Module
No
Includes Distributor
No
Includes ECM
No
Includes Fuel Pressure Regulator
No
Includes Fuel Pump
No
Includes Fuel Rails
Yes
Share this page
FiTech Fuel Injection System

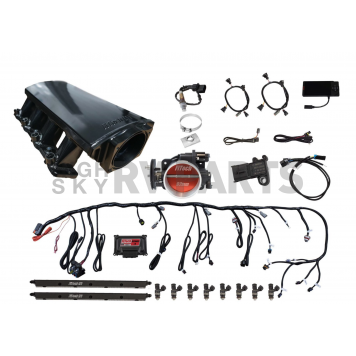

Fuel Injection System; Ultimate LS Induction System; For Use On LS3/ L92 Engines; Throttle Body Injection; 500 Horsepower Rating; Matte Black; Without Transmission Control; With Low Profile Fabricated Aluminum Intake Manifold/ 92 Millimeter Cable Operated Throttle Body/ 36 LB Flow Matched Injectors/ Billet Fuel Rails/ Self Learning ECU/ Touch Screen Controller/ Wire Harness/ 1 Bar MAP Sensor/ IAC Sensor/ TPS Sensor
MPN: 70011
FiTech EFI continues to bring the highest quality products to the market at the most competitive prices. The Ultimate LS Induction System features the same industry leading EFI control that is in all FiTech EFI systems. FiTech EFI has more fuel injection systems in use than any aftermarket fuel injection company. Let that industry leading technology work for you in your LS powered vehicle. Complete Self Tuning Induction Systems for LS engines designed for the do-it-yourself Hot Rodder to the professional EFI tuner! This system is ready to go with everything needed to complete the induction system of your LS engine and get you on the road easily and faster than any system on the market today.
Engine Compatibility: GM LS3/ L92 Series
Cylinder Head Compatibility: Rectangular Port Cylinder Head
Aspiration: Supercharged/ Turbocharged
Fuel Injection Type: Throttle Body
Metering Type: Speed Density
Includes Intake Manifold: Yes
Intake Manifold Finish: Anodized
Intake Manifold Material: Aluminum
Includes Fuel Rails: Yes
Throttle Body Finish: Matte
Throttle Body Material: Aluminum
Venturi Quantity: 1
Venturi Diameter (MM): 92 Millimeter
Air Flow Rate: 1000 Cubic Feet Per Minute
Injector Size (LB/HR): 36 Pounds Per Hour
Includes Calibration Module: No
Includes ECM: No
Includes Wiring Harness: Yes
Includes Fuel Pump: No
Includes Fuel Pressure Regulator: No
Includes Distributor: No
Includes Oxygen Sensor: Yes
Includes TPS Sensor: Yes
Includes IAT Sensor: No
Includes MAP Sensor: Yes
Includes IAC Motor: No
Includes Gaskets: No
Features
- Parabolic Inlet Machining For Smooth Throttle Transitions. Features Progressive Linkage Pulley With Double Return Spring And Adjustable Stop
- Self Learning ECU With Touch Screen Controller For Easy Setup And Configuration
- Windshield Mount For Control
- Sequential Fuel And Spark Control With Individual Cylinder Trim
- Stainless Oxygen Sensor Bung
- Tach Output Driver For Most Tachometers
- Speedometer Output Driver For Most Speedometers
- Compatible With Car And Truck Coils. Windshield Mount For Touch Screen Controller
- Fuel Pump Relay Output And Programmable Color Touch Screen Hand Held Controller With Data Log Features
- Limited 1 Year Warranty
Specifications of FiTech Ultimate LS 500 HP EFI System With Short LS3 Port Intake Fuel Injection System - 70011 | |
Air Flow Rate | 1000 Cubic Feet Per Minute |
Aspiration | Supercharged/ Turbocharged |
Cylinder Head Compatibility | Rectangular Port Cylinder Head |
Engine Compatibility | GM LS3/ L92 Series |
Fuel Injection Type | Throttle Body |
Includes Calibration Module | No |
Includes Distributor | No |
Includes ECM | No |
Includes Fuel Pressure Regulator | No |
Includes Fuel Pump | No |
Includes Fuel Rails | Yes |
Includes Gaskets | No |
Includes IAC Motor | No |
Includes IAT Sensor | No |
Includes Intake Manifold | Yes |
Includes MAP Sensor | Yes |
Includes Oxygen Sensor | Yes |
Includes TPS Sensor | Yes |
Includes Wiring Harness | Yes |
Injector Size (LB/HR) | 36 Pounds Per Hour |
Intake Manifold Finish | Anodized |
Intake Manifold Material | Aluminum |
Metering Type | Speed Density |
Throttle Body Finish | Matte |
Throttle Body Material | Aluminum |
Venturi Diameter (MM) | 92 Millimeter |
Venturi Quantity | 1 |
1900-1900 Chevrolet LS Small Block Gen 4 2005+
1900 Chevrolet LS Small Block Gen 4 2005+
