FiTech Ultimate LS 750 HP EFI System With Short Cathedral Intake & Transmission Control - 70004
FiTech Fuel Injection System

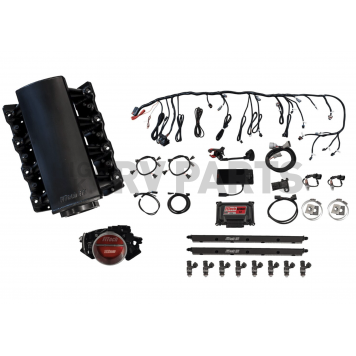

Fuel Injection System; Ultimate LS Induction System; For Use On LS1/ LS2/ LS6 Engines; Throttle Body Injection; 750 Horsepower Rating; Matte Black; With Transmission Control For 4L60/ 4L65/ 4L70/ 4L80 Transmissions; With Low Profile Fabricated Aluminum Intake Manifold/ 102 Millimeter Cable Operated Throttle Body/ 66 LB Flow Matched Injectors/ Billet Fuel Rails/ Self Learning ECU/ Touch Screen Controller/ Wire Harness/ 3 Bar MAP Sensor That Detects Up To 30 PSI Boost/ Knock Sensor Control/ IAC Sensor/ TPS Sensor/ Dual Bosch Wide Band With Trim Control
MPN: 70004
Features
- Parabolic Inlet Machining For Smooth Throttle Transitions. Features Progressive Linkage Pulley With Double Return Spring And Adjustable Stop
- Self Learning ECU With Touch Screen Controller For Easy Setup And Configuration
- Windshield Mount For Control
- Sequential Fuel And Spark Control With Individual Cylinder Trim
- Stainless Oxygen Sensor Bung
- Tach Output Driver For Most Tachometers
- Speedometer Output Driver For Most Speedometers
- Compatible With Car And Truck Coils. Windshield Mount For Touch Screen Controller
- Fuel Pump Relay Output And Programmable Color Touch Screen Hand Held Controller With Data Log Features
- Limited 1 Year Warranty
Specifications of FiTech Ultimate LS 750 HP EFI System With Short Cathedral Intake & Transmission Control - 70004 | |
Air Flow Rate | 1000 Cubic Feet Per Minute |
Aspiration | Supercharged/ Turbocharged |
Cylinder Head Compatibility | Rectangular Port Cylinder Head |
Engine Compatibility | GM LS1/ LS2/ LS6 Engines |
Fuel Injection Type | Throttle Body |
Includes Calibration Module | No |
Includes Distributor | No |
Includes ECM | No |
Includes Fuel Pressure Regulator | No |
Includes Fuel Pump | No |
Includes Fuel Rails | Yes |
Includes Gaskets | No |
Includes IAC Motor | No |
Includes IAT Sensor | No |
Includes Intake Manifold | Yes |
Includes MAP Sensor | Yes |
Includes Oxygen Sensor | Yes |
Includes TPS Sensor | Yes |
Includes Wiring Harness | Yes |
Injector Size (LB/HR) | 66 Pounds Per Hour |
Intake Manifold Finish | Anodized |
Intake Manifold Material | Aluminum |
Metering Type | Speed Density |
Throttle Body Finish | Matte |
Throttle Body Material | Aluminum |
Venturi Diameter (MM) | 102 Millimeter |
Venturi Quantity | 1 |
1900-1900 Chevrolet LS Small Block Gen 3 1997-2007
