Fill Rite by Tuthill Multi Purpose Pump 13 Gallons Per Minute Electrically Operated - SS445BX727
Flow Rating
13 Gallons Per Minute
Housing Material
Glass-Filled Polypropylene Pump
Inlet Connection Type
NPT
Inlet Size
1 Inch
Operation Type
Electrically Operated
Outlet Connection Type
NPT
Outlet Size
1 Inch
Pressure Rating
15 Pounds Per Square Inch
Type
Santoprene Diaphragm
Used For
Herbicides/ Pesticides/ Fertilizers/ Insecticides/ Detergents/ Soaps/ Mild Acids
Voltage Rating
12 Volts DC
Share this page
Fill Rite by Tuthill Multi Purpose Pump

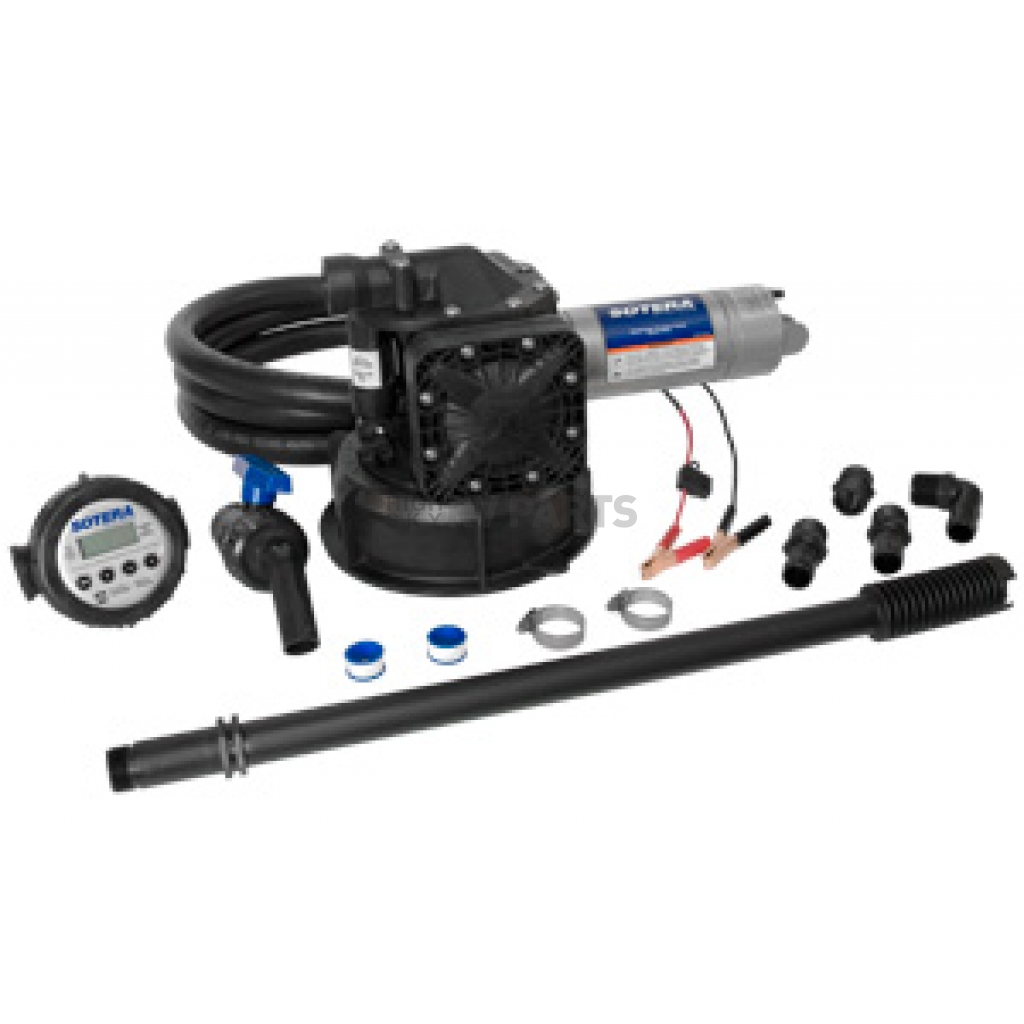

Multi Purpose Pump; MixNGo; Use With Herbicides/ Pesticides/ Fertilizers/ Insecticides/ Detergents/ Soaps/ Mild Acids; Electric; 13 Gallons Per Minute At 15 PSI; 1 Inch NPT Inlet Ports x 1 Inch NPT Outlet Ports; 12 Volt DC; 130 Degrees Fahrenheit Maximum Operating Temperature; Glass-filled Polypropylene Housing/ Santoprene Diaphragms/ EPDM Seals/ Elastomers; Thermal overload protection; With Telescoping Polypropylene Suction Tube/ 825 Digital Meter/ 1 Inch Diameter x 12 Foot Length EPDM Hose And Shutoff Ball Valve
MPN: SS445BX727
12 Volt DC Electric Diaphragm Pump with Recirculation System built in. Gently and continuously mix chemicals in mini-bulk containers. Pump has unique reciprocating, spring driven configuration that maintains constant pressure regardless of load. Pump automatically goes neutral when the end of hose valve is shut off. Glass-reinforced polypropylene pump housing provides integrity and excellent material compatibility inside and out.
Used For: Herbicides/ Pesticides/ Fertilizers/ Insecticides/ Detergents/ Soaps/ Mild Acids
Type: Santoprene Diaphragm
Operation Type: Electrically Operated
Pressure Rating: 15 Pounds Per Square Inch
Flow Rating: 13 Gallons Per Minute
Inlet Size: 1 Inch
Inlet Connection Type: NPT
Outlet Size: 1 Inch
Outlet Connection Type: NPT
Voltage Rating: 12 Volts DC
Housing Material: Glass-Filled Polypropylene Pump
Features
- Pump Has Unique Reciprocating, Spring Driven Configuration That Maintains Constant Pressure Regardless Of Load
- Glass-Reinforced Polypropylene Pump Housing Provides Integrity And Excellent Material Compatibility Inside And Out
- Thermal Overload Protection
- Limited 5 Year Warranty
| Specifications of Fill Rite by Tuthill Multi Purpose Pump 13 Gallons Per Minute Electrically Operated - SS445BX727 | |
| Flow Rating | 13 Gallons Per Minute |
| Housing Material | Glass-Filled Polypropylene Pump |
| Inlet Connection Type | NPT |
| Inlet Size | 1 Inch |
| Operation Type | Electrically Operated |
| Outlet Connection Type | NPT |
| Outlet Size | 1 Inch |
| Pressure Rating | 15 Pounds Per Square Inch |
| Type | Santoprene Diaphragm |
| Used For | Herbicides/ Pesticides/ Fertilizers/ Insecticides/ Detergents/ Soaps/ Mild Acids |
| Voltage Rating | 12 Volts DC |
