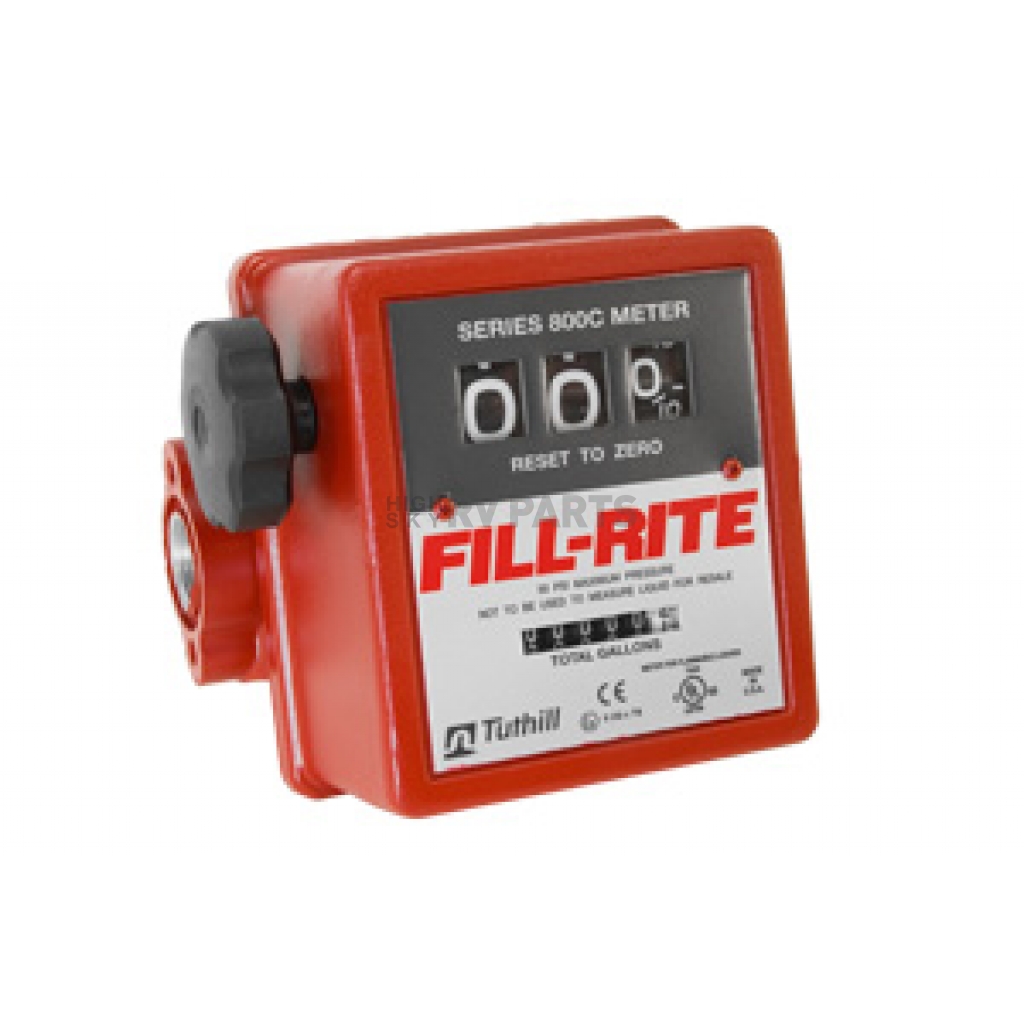

Fill Rite by Tuthill Flow Meter Mechanical 3 Digit 5 To 20 Gallons Per Minute - 807C
Display
3 Digit
Flow Range
5 To 20 Gallons Per Minute
Fuel Type
Gasoline/ Diesel/ E15/ Kerosene/ B20 And Mineral Spirits
Inlet Size (IN)
3/4 Inch NPT
Material
Aluminum Housing/ Ryton/ Stainless Steel Chamber/ Viton® And Buna Seal
Outlet Size (IN)
3/4 Inch NPT
Type
Mechanical
Share this page
Fill Rite by Tuthill Flow Meter
Flow Meter; Use With Gasoline/ Diesel/ E15/ Kerosene/ B20 And Mineral Spirits; 5 To 20 GPM Flow; Mechanical Numbers; 3/4 Inch NPT Inlet And 3/4 Inch NPT Outlet; Vertical And Horizontal Positioning; 3-Wheel Flow Meters
MPN: 807C
The Mechanical flow meter has a large easy to read display, flow ports can be positioned vertically or horizontally, UL/cUL listed, handles fluid of any viscosity, rated for Gasoline, Diesel, Kerosene, mineral spirits, Stoddard solvents and heptane. Fill-Rite meters provide precision and durability in a cost-effective design. The 3 wheel mechanical meter designed for transfer pumps with a flow rate of 5 to 20 Gallons Per Minute.
Type: Mechanical
Display: 3 Digit
Flow Range: 5 To 20 Gallons Per Minute
Inlet Size (IN): 3/4 Inch NPT
Outlet Size (IN): 3/4 Inch NPT
Fuel Type: Gasoline/ Diesel/ E15/ Kerosene/ B20 And Mineral Spirits
Material: Aluminum Housing/ Ryton/ Stainless Steel Chamber/ Viton® And Buna Seal
Features
- UL/cUL, CE Listed
- Large Easy To Read Display
- Limited 90 Day Warranty
Specifications of Fill Rite by Tuthill Flow Meter Mechanical 3 Digit 5 To 20 Gallons Per Minute - 807C | |
Display | 3 Digit |
Flow Range | 5 To 20 Gallons Per Minute |
Fuel Type | Gasoline/ Diesel/ E15/ Kerosene/ B20 And Mineral Spirits |
Inlet Size (IN) | 3/4 Inch NPT |
Material | Aluminum Housing/ Ryton/ Stainless Steel Chamber/ Viton® And Buna Seal |
Outlet Size (IN) | 3/4 Inch NPT |
Type | Mechanical |
