Fast Fuel Injection System - 30401-KIT

Authorized Dealer
Brand: Fast Fast
0 reviews
  • Have a product question? Ask us
  • Part Number: 30401-KIT
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by April 30
Retail: $4,898.24
Price: $4,664.99
You Save: $233.25
Aspiration
Supercharged
Engine Compatibility
Chevy Small Block LS Series
Fuel Injection Type
Throttle Body
Includes Calibration Module
Yes
Includes Distributor
No
Includes ECM
Yes
Includes Fuel Pressure Regulator
Yes
Includes Fuel Pump
Yes
Includes Fuel Rails
No
Includes Gaskets
Yes
Includes IAC Motor
Yes
Share this page

Fast Fuel Injection System

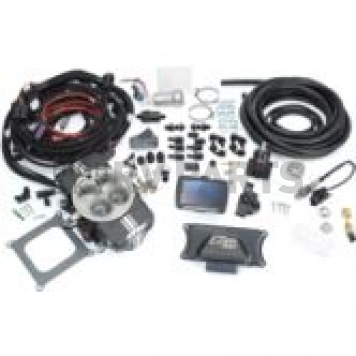

Fuel Injection System; EZ-EFI 2.0 ®; For Use With Engines Equipped With A Intake Manifold That Has A Four Barrel Square Bore Carburetor Flange; Throttle Body Injection; Black; With Four 6AN 90 Degree Push Lock End Fitting Part Number 30276/ Four 6AN Nylon Washer Part Number 30341/ Four Weatherpack Connector Seal Part Number 170085/ Seven 6AN Straight Push Lock End Fitting Part Number 30275/ Single 0-100 PSI Fuel Pressure Gauge Part Number 54027G/ Single 2 Pin Weatherpack Connector Shroud Part Number 170223/ Single 2 Pin Weatherpack Connector Tower Part Number 170268/ Single 3/8 Inside Diameter x 18-1/2 Inch LG Submersible 30R10 Fuel Hose Part Number 30342-18/ Single 30-70 PSI Adjustable Fuel Pressure Regulator Part Number 307030/ Single 450 Liter Per Hour In Tank Fuel Pump Part Number 307034/ Single 6AN Black Fuel Filter Part Number 30272/ Single 6AN Plug Port With Socket Hex O-Ring Part Number 30273/ Single EZ-EFI ® FP Solid State Relay Harness Part Number 30313/ Single In Tank Pump Pigtail Part Number 307036/ Single In Tank Pump Pre Filter Part Number 307035/ Single Lock Nut Part Number 30347/ Single Ring Terminal Part Number 170668/ Single Sealed 2 Wire Fitting Part Number 30346/ Single Sealing Ring Part Number 30348/ Single Six Foot Length 14 Gauge Red Wire Part Number 170029/ Single Six Foot Length 14 Gauge Wire Part Number 30353/ Six Foot Length 3/16 Inch Vacuum Hose Part Number 30280/ Three Stainless Steel Screw Part Number 30258BS/ Twelve Hose Clamp Part Number 30295-HC/ Twenty Five 3/8 Inch Outside Diameter x 1 Foot Length SAE30R9 Fuel Injection Hose Part Number 30295/ Two 6AN Adapter Fitting Part Number 30251/ Two 6AN Bulkhead Fitting Nut Part Number 30340/ Two 6AN Bulkhead Fitting Part Number 30339/ Two Female Terminal Part Number 30349/ Two Hose Clamp Part Number G31240/ Two Male Terminal Part Number 170082

MPN: 30401KIT

The next generation of the revolutionary self tuning EZ-EFI(R) has been upgraded with more features than ever before. Yet it maintains ease-of-use that doesn't require a laptop or tuning experience. As with the original EZ-EFI(R), simply hook up the system, answer the Setup Wizard questions on the hand-held, and EZ-EFI 2.0(R) tunes itself as you drive. Its eight-injector, die cast throttle body features late model OEM sensors for accuracy and durability, supports up to 1200 Horsepower (the highest on the market), includes optional ignition timing control and is able to run E85 fuels while competing versions cannot. It flows more air than the first generation EZ-EFI(R) throttle body due to an improved inlet, while a new secondary shaft throttle stop adjustment provides even more precise idle airflow adjustment and balance. Meanwhile, an industry exclusive and unique-to-FAST™ integrated fuel pulse damper creates ultra-precise fuel control. The EZ-EFI 2.0(R) also incorporates needle-bearing supported shafts instead of bushings and an integrated fuel rail design with crossover for tighter packaging. Setup includes the market's fewest connection wires, including a new high-quality wiring harness and a sleek mesh-type loom. The EZ-EFI 2.0(R) has an updated hand-held as well, featuring the industry’s first color touchscreen. Self-powered through the ECU rather than requiring an outside power source, it shares the same mounting points as the Garmin Nuvi GPS, meaning there are nearly limitless mounting options (suction cup mount is included with all kits). Serving as the Setup Wizard initially, it then becomes an electronic gauge screen. The hand-held has various advanced features including screen hide/sleep function, expanded diagnostics and data screens, plus intuitive navigation.
Engine Compatibility: Chevy Small Block LS Series
Aspiration: Supercharged
Fuel Injection Type: Throttle Body
Metering Type: Speed Density
Includes Intake Manifold: No
Intake Manifold Finish: No Intake Manifold
Intake Manifold Material: No Intake Manifold
Includes Fuel Rails: No
Throttle Body Finish: Anodized
Throttle Body Material: Aluminum
Throttle Body Mounting Flange: 4 Barrel Square Bore
Venturi Quantity: 4
Includes Calibration Module: Yes
Includes ECM: Yes
Includes Wiring Harness: Yes
Includes Fuel Pump: Yes
Includes Fuel Pressure Regulator: Yes
Includes Distributor: No
Includes Oxygen Sensor: Yes
Includes TPS Sensor: Yes
Includes IAT Sensor: Yes
Includes MAP Sensor: Yes
Includes IAC Motor: Yes
Includes Gaskets: Yes

Features

  • Higher Flowing And Higher Horsepower - Capable Throttle Body For Engines Making Up To 1200 Horsepower. ECU Works With EZ-EFI® Or Inglese Throttle Bodies And Multi-Port Systems
  • Maintains Ease-Of-Use That Doesn’t Require A Laptop Or Previous Tuning Experience. Compatible With Multiple Fuel Pump Options
  • Able To Run E85 Fuels As Opposed To Competitor Versions. EZ-Solution™ Option To Allow Integration With Most Common Ignition Systems
  • Fuel Pulse Damper Creates Extremely Precise Fuel Control
  • Updated Hand-Held Features A Color Touchscreen And Shares The Same Mounting Points As Garmin Nuvi GPS For Almost Limitless Mounting Options
  • Limited Lifetime Warranty
Specifications of Fast Fuel Injection System - 30401-KIT
Aspiration Supercharged
Engine Compatibility Chevy Small Block LS Series
Fuel Injection Type Throttle Body
Includes Calibration Module Yes
Includes Distributor No
Includes ECM Yes
Includes Fuel Pressure Regulator Yes
Includes Fuel Pump Yes
Includes Fuel Rails No
Includes Gaskets Yes
Includes IAC Motor Yes
Includes IAT Sensor Yes
Includes Intake Manifold No
Includes MAP Sensor Yes
Includes Oxygen Sensor Yes
Includes TPS Sensor Yes
Includes Wiring Harness Yes
Intake Manifold Finish No Intake Manifold
Intake Manifold Material No Intake Manifold
Metering Type Speed Density
Throttle Body Finish Anodized
Throttle Body Material Aluminum
Throttle Body Mounting Flange 4 Barrel Square Bore
Venturi Quantity 4
