Factor 55 Winch Cable Shackle Mount - 16000 Pound Billet Aluminum - 0037506

Brand: Factor 55

Have a product question? Ask us
Part Number: 00375-06
Part Location: U.S.
Availability: 32 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by May 13

Retail: $107.09

Price: $101.99

You Save: $5.10

Color

Load Capacity (LB)

16000 Pound

Material

Billet Aluminum

Shackle Type

3/4 Inch Screw Pin Hook

With Guard

Share this page

Factor 55 Winch Cable Shackle Mount

Winch Cable Shackle Mount; FlatLink; Fits 3/4 Inch Screw Pin Hook; Fits 1/2 Inch Diameter; Use Only Synthetic Winch Ropes; 16000 Pound Load Capacity; Splice-On; Foldable; Gray; Billet Aluminum; With EPDM Rubber Guards

MPN: 0037506

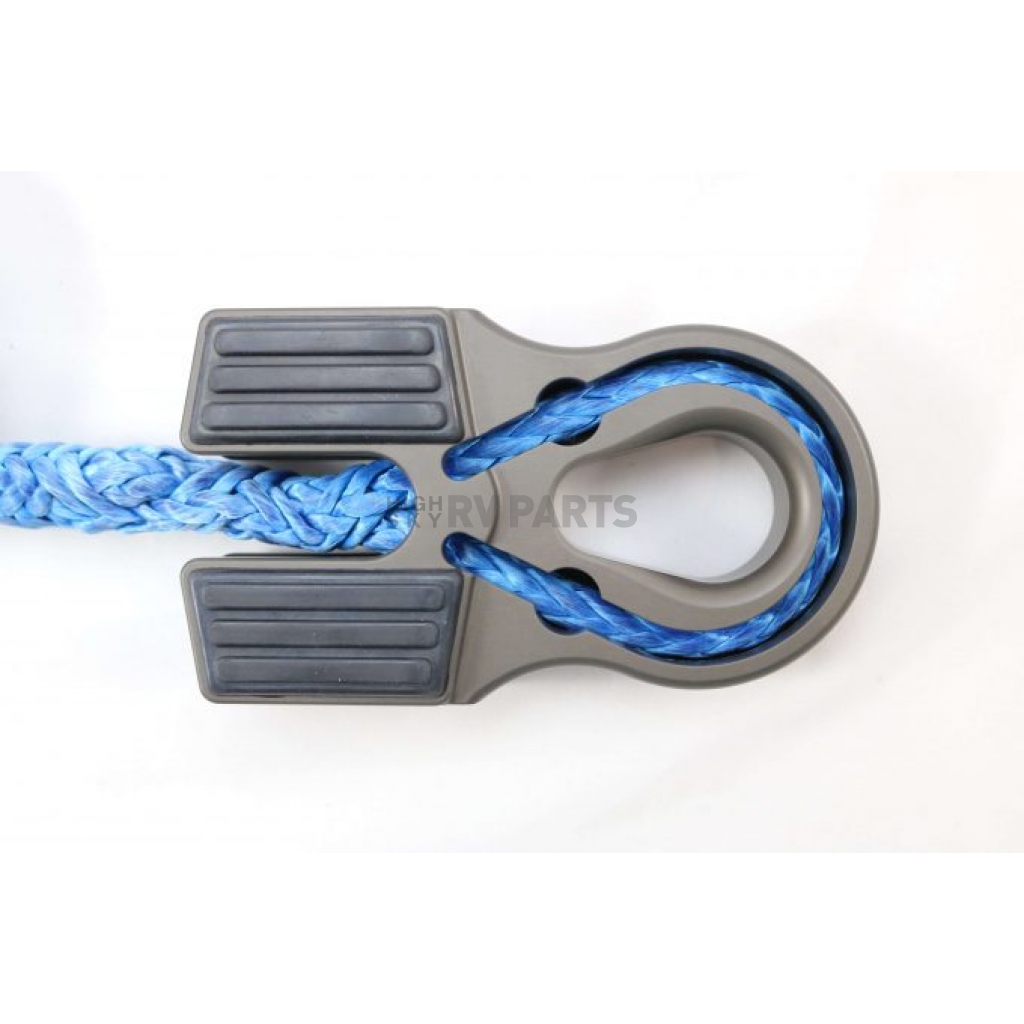

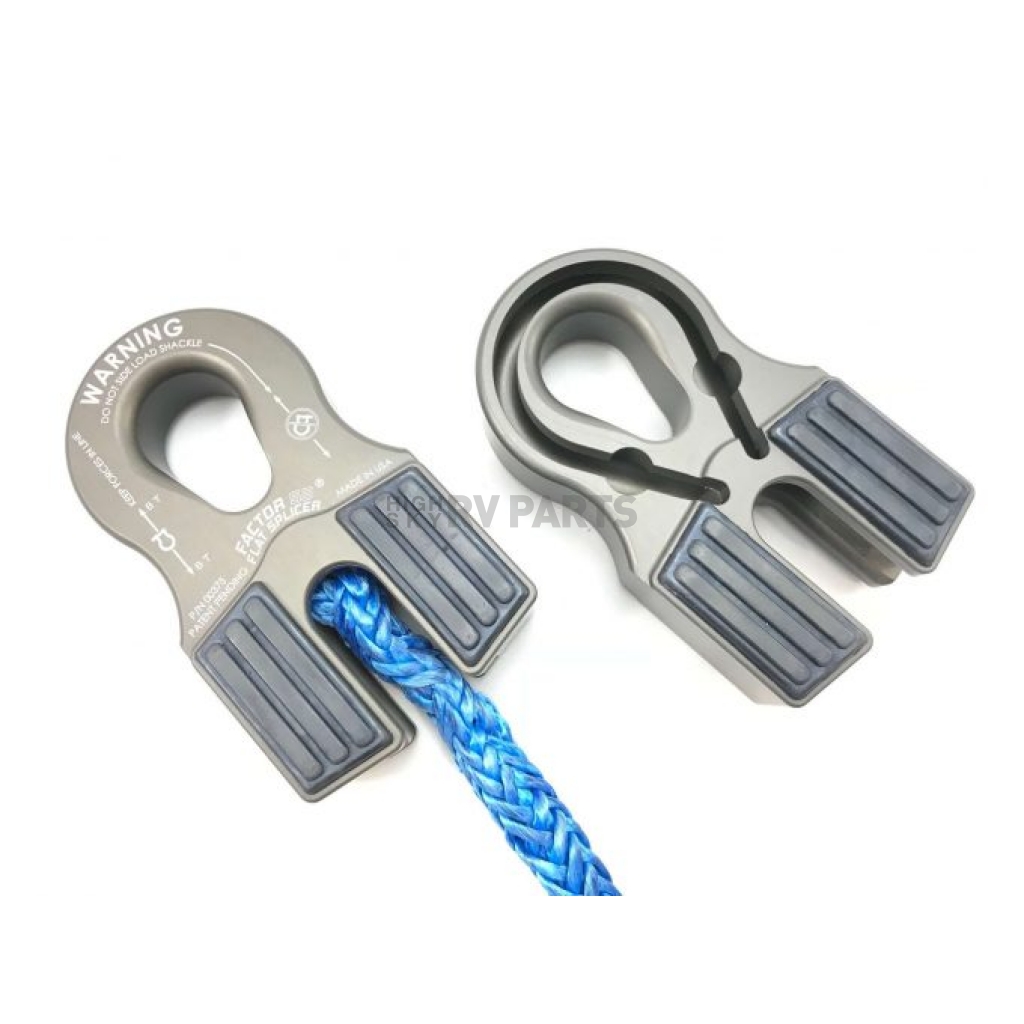

The Flat Splicer is the world’s first splice on folding winch rope shackle mount thimble. Finished in a durable Mil-Spec hard anodized surface, the Flat Splicer can be folded flat against winch fairleads minimizing vehicle frontal protrusion. At a mere 1.75 Inches thick, and equipped with integrated EPDM rubber pads, the Flat Splicer can accommodate the pin and bow sections of common 3/4 shackles as well as the pin ends of larger 7/8 shackles. Note how the spliced rope can exit the middle of the part and be routed 90 Degrees along the inner radius, and back towards the winch. This innovative design allows the Flat Splicer to be stowed with the groove side facing towards the winch, thus eliminating all exposed winch rope from damaging UV light and impact or abrasion. So for all of you off-roaders that are looking for a splice-on rope thimble that completely protects the end of your winch rope without compromising your vehicle approach angle, the Flat Splicer is the product for you.

Shackle Type: 3/4 Inch Screw Pin Hook

Load Capacity (LB): 16000 Pound

Color: Gray

Material: Billet Aluminum

With Guard: Yes

Features

Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring
Unique Machined Rope Path Provides Complete Rope Protection From Impact And UV
Safer Recoveries Through Closed System Winching™; Connects To Both The Pin And Bow End Of Common 3/4 Inch Screw Pin Shackles
Lightweight – Precision CNC Machined 6000 Series Military Grade Aluminum
For Synthetic Winch Rope Only
Integrated EPDM Rubber Pads For Fairlead Protection
The World’s First Foldable Splice-On Winch Rope Shackle Mount
Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
For Synthetic Winch Rope Diameters Up To 1/2 Inch
Limited 1 Year Warranty From Date Of Purchase

Specifications of Factor 55 Winch Cable Shackle Mount - 16000 Pound Billet Aluminum - 0037506
Color	Gray
Load Capacity (LB)	16000 Pound
Material	Billet Aluminum
Shackle Type	3/4 Inch Screw Pin Hook
With Guard	Yes
