Factor 55 Winch Cable Shackle Mount - 16,000 Pounds Aluminum - 0022006
Cable Type
3/8 Inch Diameter Steel Cables/ Synthetic Winch Ropes
Color
Gray
Load Capacity (LB)
16,000 Pounds
Material
Aluminum
Shackle Type
3/4 Inch Diameter Shackles
Shear Pin Size (IN)
5/8 Inch
With Guard
No
Share this page

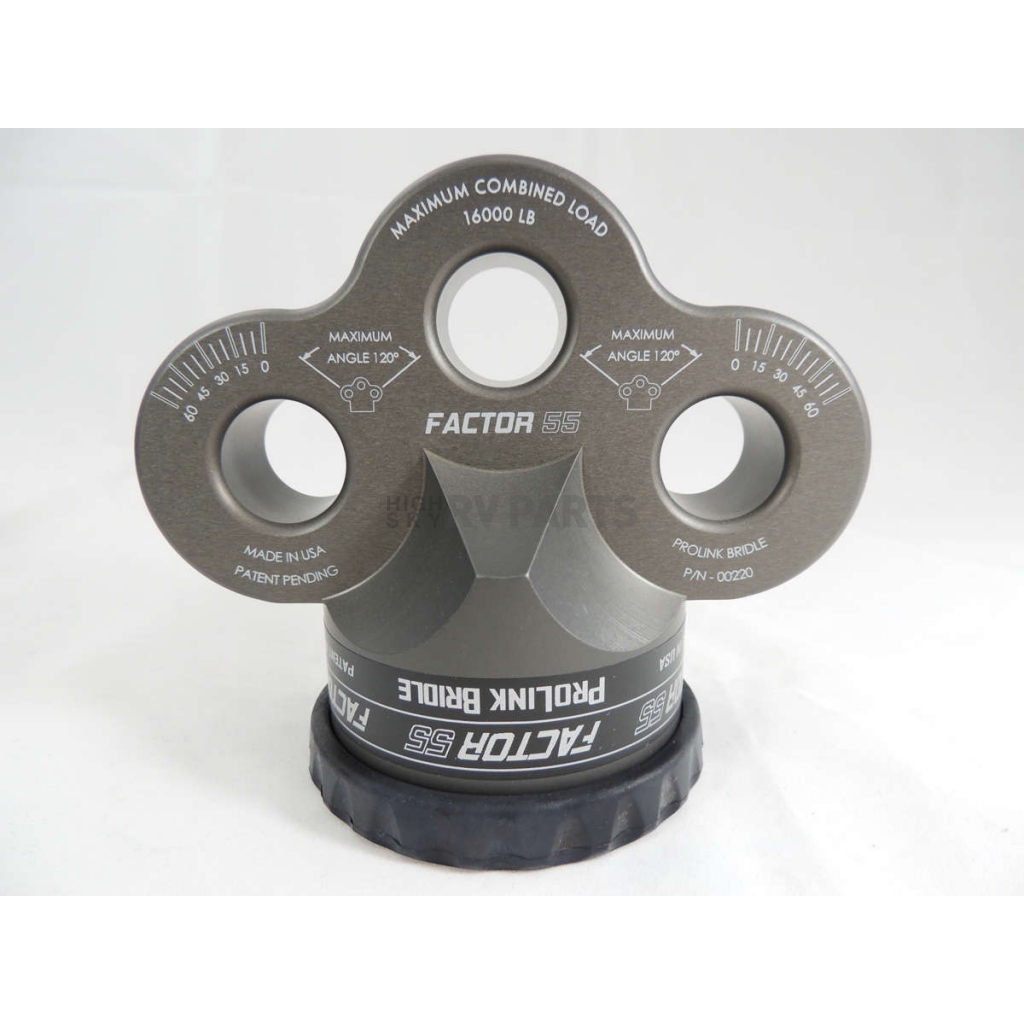

Factor 55 Winch Cable Shackle Mount
Winch Cable Shackle Mount; ProLink; Fits 3/4 Inch Diameter Shackles; Fits 3/8 Inch Diameter Steel Cables/ Synthetic Winch Ropes; 16,000 Pounds Capacity; Gray; Single
MPN: 0022006

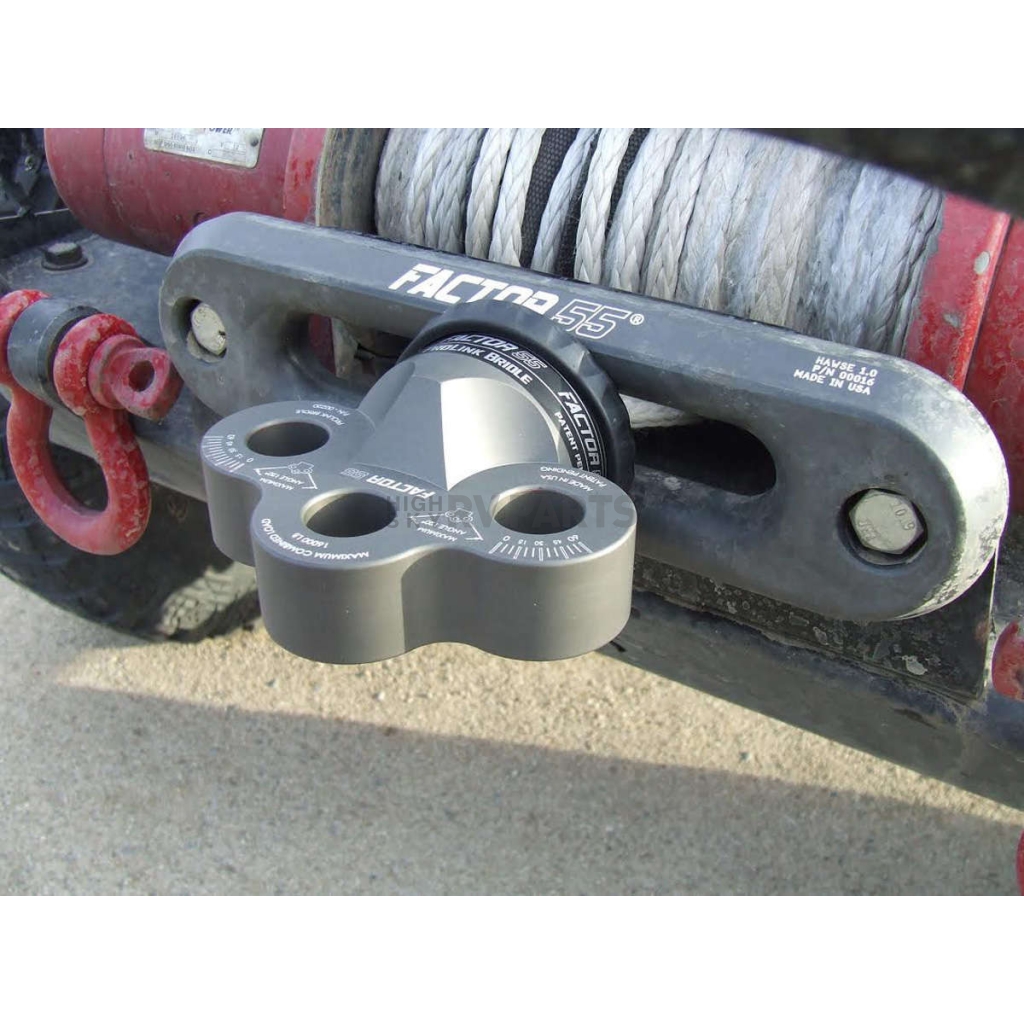

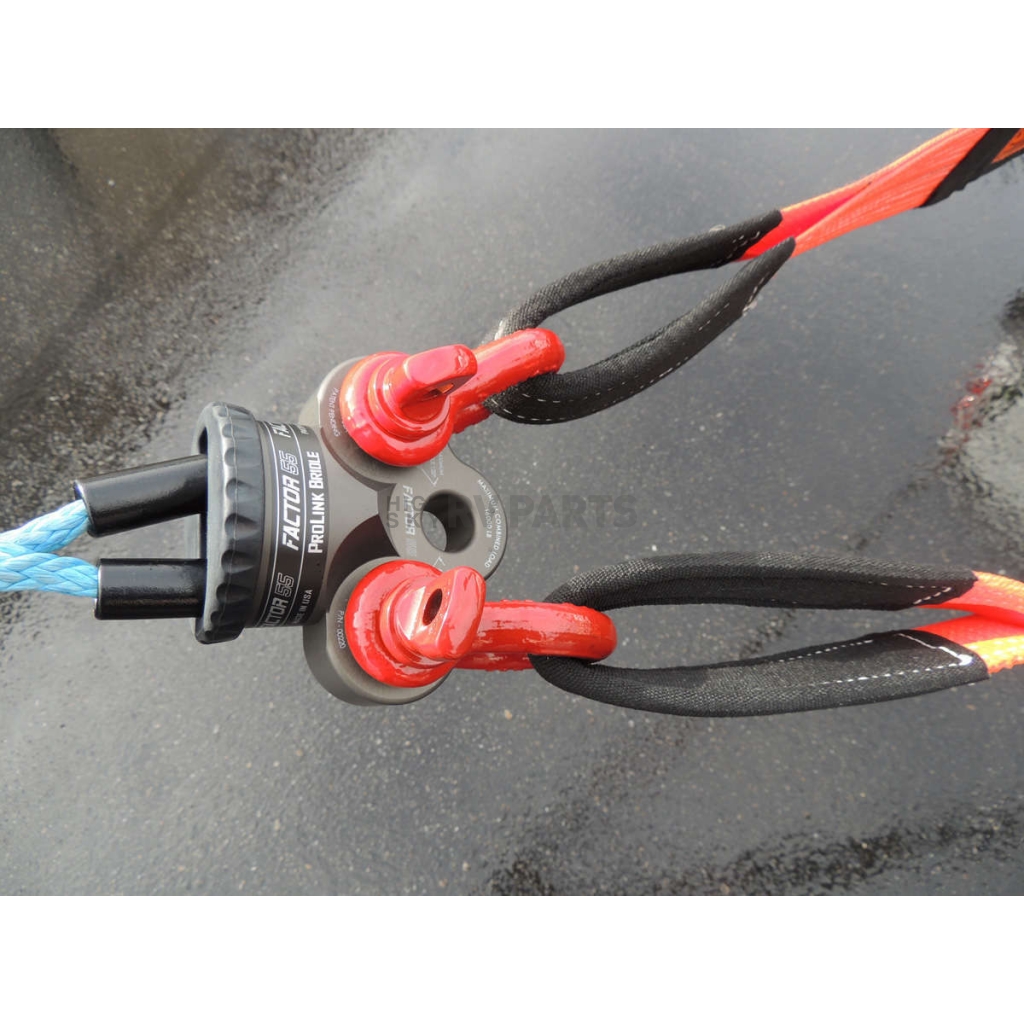

The ProLink Bridle provides winch owners with a means to replace the conventional winch hook with a safer and stronger screw pin shackle/D-ring. The ProLink Bridle is a multiple shackle mount product designed for winch cables. The ProLink Bridle is a specialized commercial product designed primarily for the towing industry. The three individual shackle mounting holes allow the winch operator to mount fixed length bridle links to the outside positioned holes for common bridle towing, as well as a single centered shackle mounting point for a conventional single shackle recovery point. Dedicated shackle mounting points prevent dangerous shackle side loading conditions due to the pivoting feature of the shackle pin mounting hole. This allows for Closed System Winching techniques to be applied. For commercial high repeating bridle towing, dedicated self centering shackles result in a safer means to bridle tow. This ProLink Bridle operation is similar to fish plate towing used in the ship towing industry where boat yaw is undesirable.
Shackle Type: 3/4 Inch Diameter Shackles
Cable Type: 3/8 Inch Diameter Steel Cables/ Synthetic Winch Ropes
Load Capacity (LB): 16,000 Pounds
Shear Pin Size (IN): 5/8 Inch
Color: Gray
Material: Aluminum
With Guard: No
Features
- Machined From 6000 Series Billet Aluminum
- 5/8 Diameter Titanium Double Shear Pin
- Working Load Limit Of 16,000 Pounds
- Ultimate Failure Of Greater Than 42,000 Pounds
- EPDM "Rubber Guard" Protects Alloy Hawse Fairleads And Cushions Line Stowage
- Simple Snap Ring Shear Pin Retainment
- Limited 1 Year Warranty
Specifications of Factor 55 Winch Cable Shackle Mount - 16,000 Pounds Aluminum - 0022006 | |
Cable Type | 3/8 Inch Diameter Steel Cables/ Synthetic Winch Ropes |
Color | Gray |
Load Capacity (LB) | 16,000 Pounds |
Material | Aluminum |
Shackle Type | 3/4 Inch Diameter Shackles |
Shear Pin Size (IN) | 5/8 Inch |
With Guard | No |
