Factor 55 Winch Cable Shackle Mount - 16000 Pounds Billet Aluminum - 0005006

Brand: Factor 55
0 reviews
  • Have a product question? Ask us
  • Part Number: 00050-06
  • Part Location: U.S.
  • Availability: 38 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $149.09
Price: $141.99
You Save: $7.10
Cable Type
3/8 Inch Steel Cable
Color
Gray
Finish
Anodized
Load Capacity (LB)
16000 Pounds
Material
Billet Aluminum
Shackle Type
3/4 Inch Clevis Hook
Shear Pin Size (IN)
5/8 Inch
With Guard
Yes
Share this page

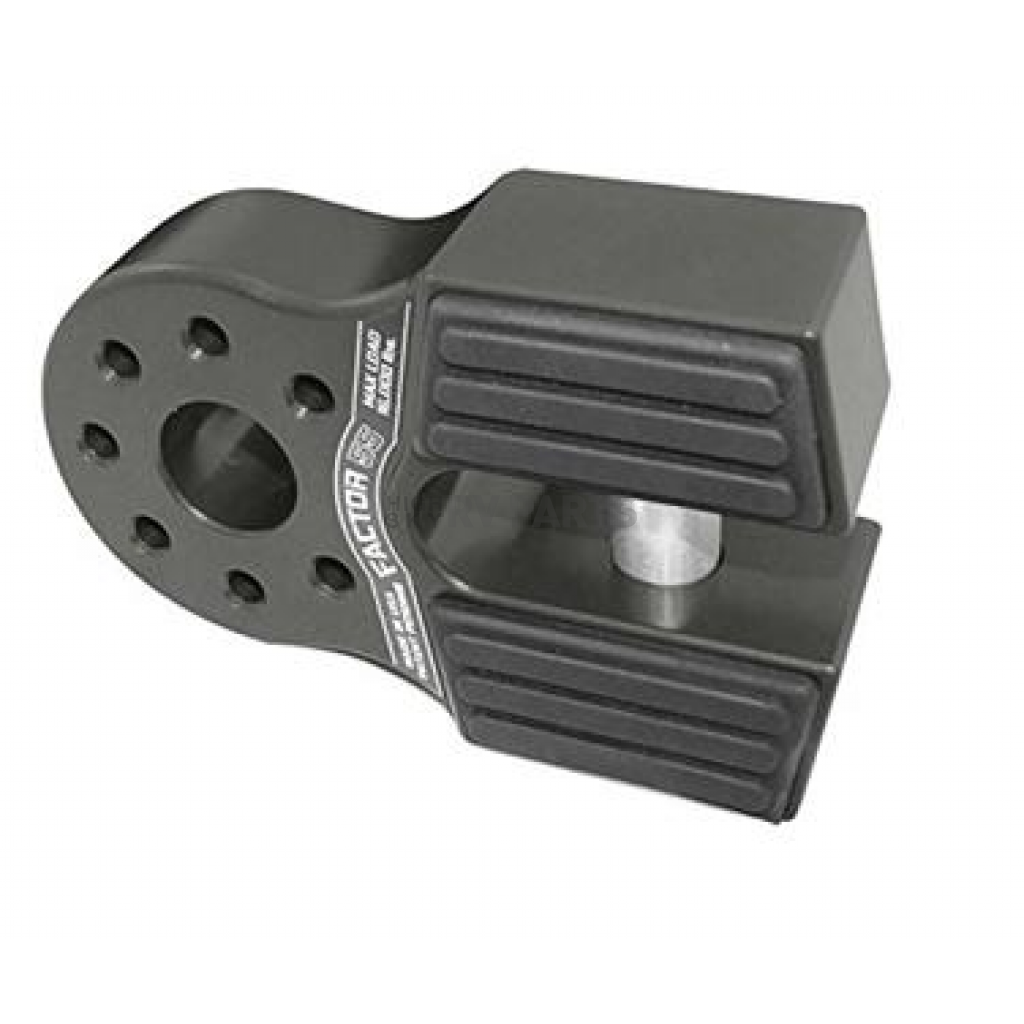

Factor 55 Winch Cable Shackle Mount

Winch Cable Shackle Mount; FlatLink; Fits 3/4 Inch Clevis Hook; Fits 3/8 Inch Diameter Steel Cables/ Synthetic Winch Ropes; 16000 Pound Load Capacity; Anodized; Gray; Billet Aluminum; With EPDM Rubber Guard And 5/8 Inch Diameter Grade 5 Steel Double Shear Pin

MPN: 0005006

Eliminate the conventional winch hook and replace it with a safer and stronger FlatLink shackle thimble and D-ring. The FlatLink shackle mount is the Industry’s first folding shackle mount for recovery winches. With less than 1.75 Inch of thickness, the Flatlink will work with all roller fairlead license plate mounting brackets. Conventional winch hooks can cut and fray recovery straps and often allow strap ends to escape during momentary slack cycles of a typical winching recovery. Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The FlatLink does not require splicing and is compatible with steel cables or synthetic ropes up to 3/8 Inch in diameter. The cable eye is retained in the FlatLink by a 5/8 Inch diameter grade 5 steel double shear pin and internal snap ring. It is installed easily in Minutes. The EPDM Rubber Guards protect alloy fairleads and are securely attached to the FlatLink with 4 barbed tips.
Shackle Type: 3/4 Inch Clevis Hook
Cable Type: 3/8 Inch Steel Cable
Load Capacity (LB): 16000 Pounds
Shear Pin Size (IN): 5/8 Inch
Finish: Anodized
Color: Gray
Material: Billet Aluminum
With Guard: Yes

Features

  • Precision Machined From 6000 Series Aluminum
  • Compatible With All Roller Fairlead License Plate Mounting Brackets
  • When Folded Flat – Less Than 1.75 Inch Of Thickness
  • Fits Steel Cables And Synthetic Winch Ropes To 3/8 Inch Diameters
  • EPDM Rubber Guard Protects Alloy Fairleads And Cushions Line Stowage
  • Simple Snap Ring Removal For Shear Pin
  • Eliminates Hook Rattle And Fairlead Damage
  • Limited 1 Year Warranty
Specifications of Factor 55 Winch Cable Shackle Mount - 16000 Pounds Billet Aluminum - 0005006
Cable Type 3/8 Inch Steel Cable
Color Gray
Finish Anodized
Load Capacity (LB) 16000 Pounds
Material Billet Aluminum
Shackle Type 3/4 Inch Clevis Hook
Shear Pin Size (IN) 5/8 Inch
With Guard Yes
