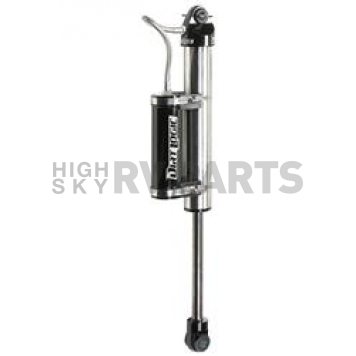

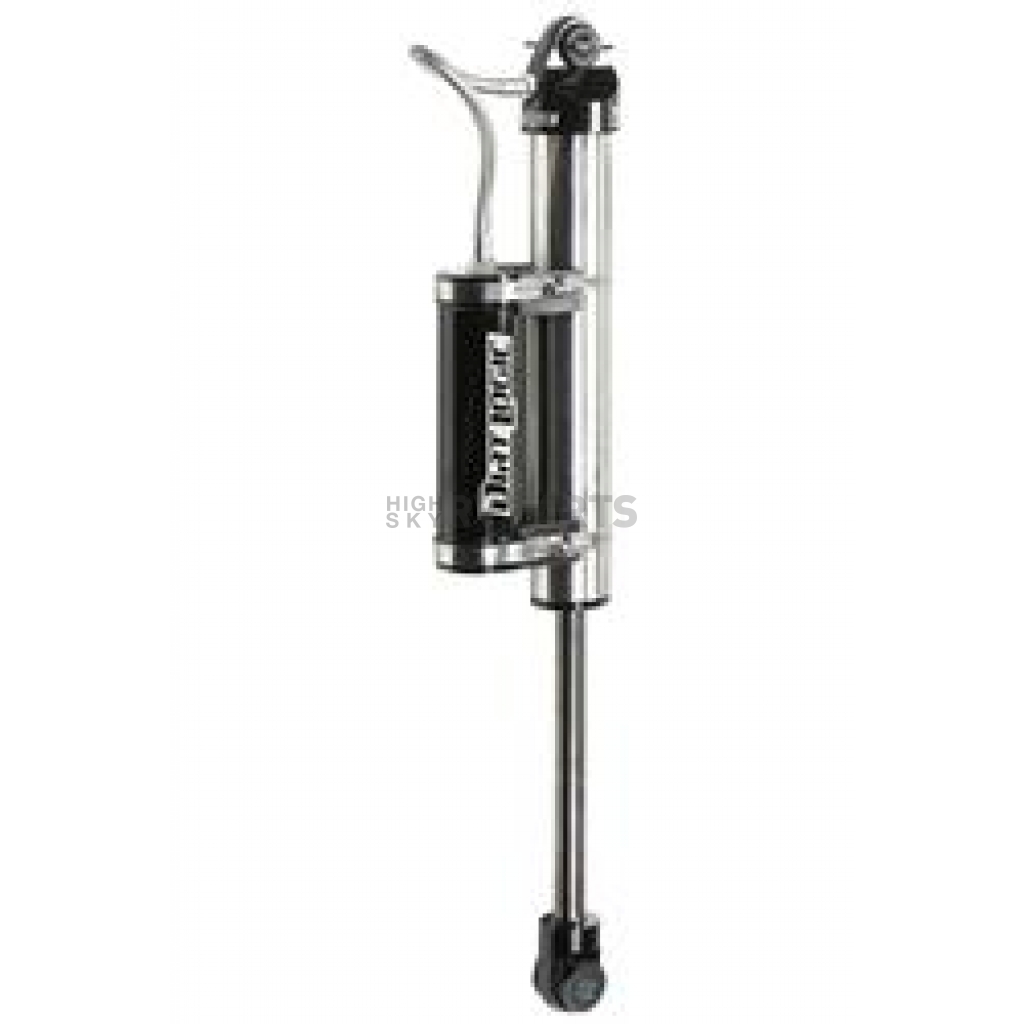

Fabtech Motorsports Shock Absorber - FTS800102

Authorized Dealer
Product cannot be returned
Brand: Fabtech Motorsports Fabtech Motorsports
0 reviews
  • Have a product question? Ask us
  • Part Number: FTS800102
  • Part Location: U.S.
  • Availability: 1 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 14
Retail: $333.89
Price: $317.99
You Save: $15.90
Adjustable Valving
 No
Body Color
 Black
Body Material
 Stainless Steel
Compressed Length (IN)
 17.52 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 28.81 Inch
Includes Boot
 No
Includes Dust Shield
 No
Includes Hardware
 No
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Share this page

Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; With Remote Reservoir; One Year Warranty; Non Adjustable 60 Percent Compression/ 40 Percent Rebound Valving; Without Shock Absorber Boots; Stainless Steel/ Black; Single

MPN: FTS800102

Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

Type: Hydraulic/ Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: No
Extended Length (IN): 28.81 Inch
Compressed Length (IN): 17.52 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet
Body Color: Black
Quantity: Single
Rod Diameter (IN): 7/8 Inch
Valving Type: 60 Percent Compression/ 40 Percent Rebound Valving
Rod Material: Steel
Body Material: Stainless Steel
With Reservoir: Yes
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • Dirt Logic Shock Features 2-1/4 Inch Stainless Steel Body And 7/8 Inch Nitro Steel Piston Rod For Maximum Corrosion Resistance
  • 2.0 Inch OD Billet Aluminum Piston Construction And Polyurethane Mounting Ends
  • High Quality Componentry Delivers A Superior Ride Quality Both On And Offroad
  • Excellent Damping For Offroad Use
  • Strengthens Vehicle's Suspension And Increases Wheel Travel For Rugged Off-Road Use
  • Limited 1 Year Warranty
Specifications of Fabtech Motorsports Shock Absorber - FTS800102
Adjustable Valving  No
Body Color  Black
Body Material  Stainless Steel
Compressed Length (IN)  17.52 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  28.81 Inch
Includes Boot  No
Includes Dust Shield  No
Includes Hardware  No
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Single
Rod Diameter (IN)  7/8 Inch
Rod Material  Steel
Type  Hydraulic/ Nitrogen Gas Charged
Upper Mounting Style  Eyelet
Valving Type  60 Percent Compression/ 40 Percent Rebound Valving
With Coil Spring  No
With Reservoir  Yes
