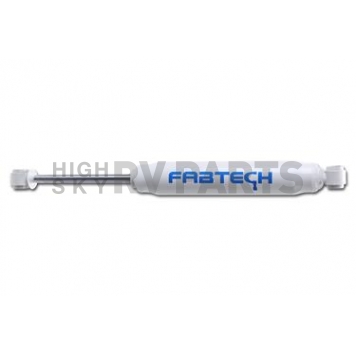

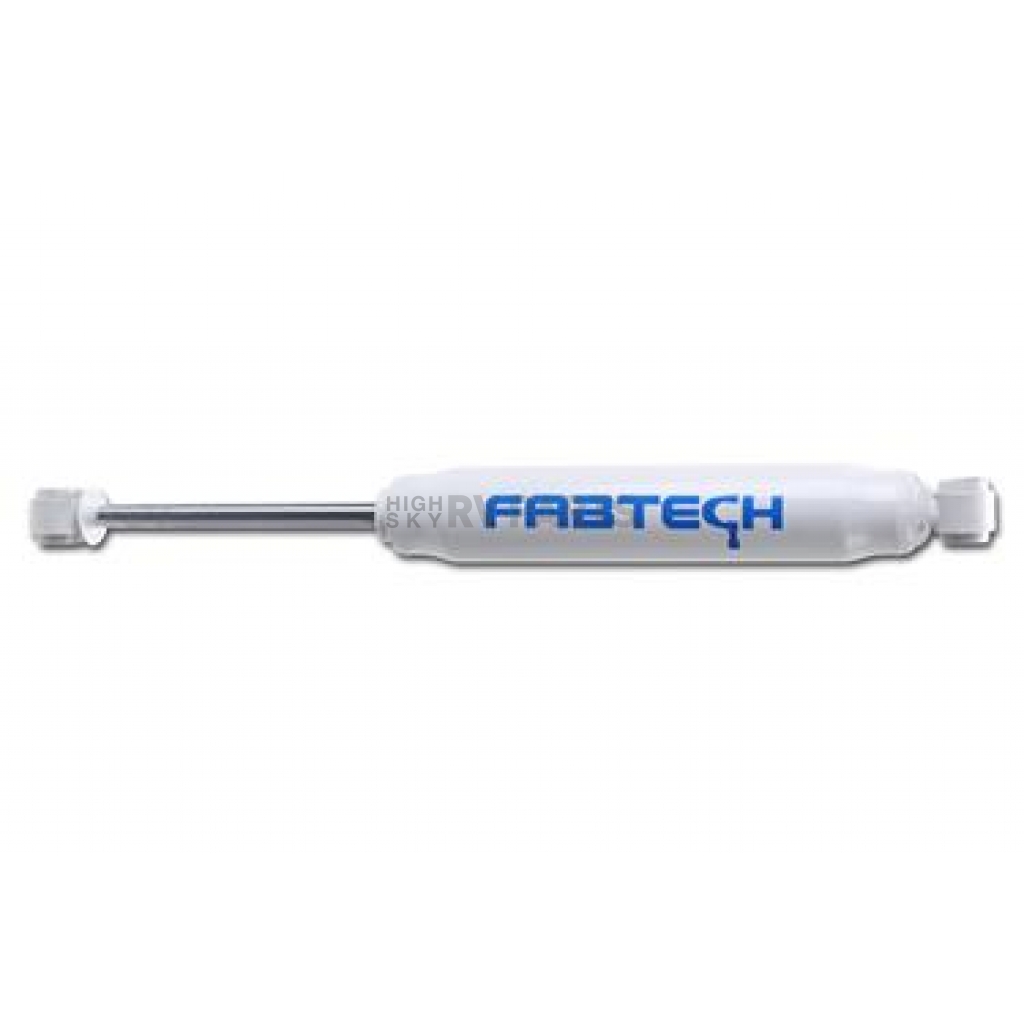

Fabtech Motorsports Shock Absorber - FTS7232

Authorized Dealer
Brand: Fabtech Motorsports Fabtech Motorsports
0 reviews
  • Have a product question? Ask us
  • Part Number: FTS7232
  • Part Location: U.S.
  • Availability: 122 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 14
Retail: $64.04
Price: $60.99
You Save: $3.05
Adjustable Valving
 No
Body Color
 White
Body Material
 Stainless Steel
Compressed Length (IN)
 14.42 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 23.95 Inch
Includes Boot
 No
Includes Dust Shield
 No
Includes Hardware
 No
Internal Design
 Twin Tube
Lower Mounting Style
 Eyelet
Share this page

Shock Absorber; Performance Twin Tube; Hydraulic; One Year Warranty; Not Adjustable; Without Shock Boots; Single

MPN: FTS7232

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds. A twin-tube shock absorber consists of a thin wall inner pressure tube and outer reserve tube. The inner tube houses the valving components, piston and base valve and is where the damping forces are generated. The outer tube acts as a reservoir for displaced fluid from the shaft volume during the compression stroke. Also contained in the outer tube is a foam sleeve or gas bag that contracts and expands with respect to shaft displacement to eliminate air pockets and increase the performance of the shock.

Type: Hydraulic
With Coil Spring: No
Internal Design: Twin Tube
Adjustable Valving: No
Extended Length (IN): 23.95 Inch
Compressed Length (IN): 14.42 Inch
Upper Mounting Style: Cross Pin
Lower Mounting Style: Eyelet
Body Color: White
Quantity: Single
Rod Diameter (IN): 9/16 Inch
Valving Type: 9 Stage High Velocity Valving
Rod Material: Steel
Body Material: Stainless Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • Twin Tube Hydraulic Construction
  • Hardened Chrome Piston Rod
  • Closed Cell Foam Insert To Reduce Shock Fade At High Speeds
  • High Flow 9 Stage Valving For Excellent Dampening Capabilities
  • Limited 3 Year Warranty
Specifications of Fabtech Motorsports Shock Absorber - FTS7232
Adjustable Valving  No
Body Color  White
Body Material  Stainless Steel
Compressed Length (IN)  14.42 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  23.95 Inch
Includes Boot  No
Includes Dust Shield  No
Includes Hardware  No
Internal Design  Twin Tube
Lower Mounting Style  Eyelet
Quantity  Single
Rod Diameter (IN)  9/16 Inch
Rod Material  Steel
Type  Hydraulic
Upper Mounting Style  Cross Pin
Valving Type  9 Stage High Velocity Valving
With Coil Spring  No
With Reservoir  No

2004 Chevrolet Colorado
2005 Chevrolet Colorado
2006 Chevrolet Colorado

2004 GMC Canyon
2005 GMC Canyon
2006 GMC Canyon
