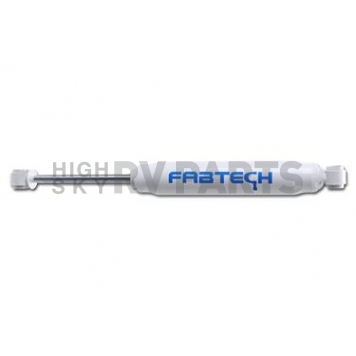

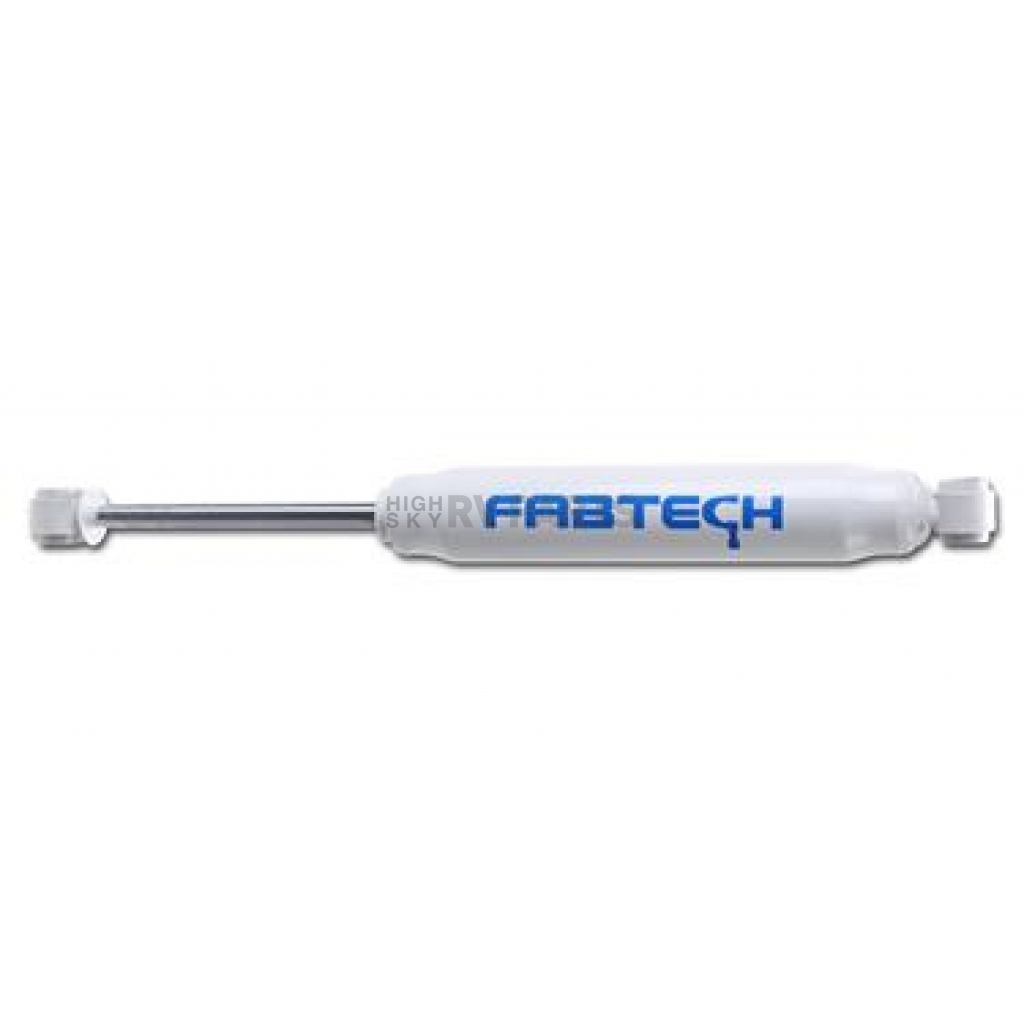

Fabtech Motorsports Shock Absorber - FTS7188

Authorized Dealer
Brand: Fabtech Motorsports Fabtech Motorsports
0 reviews
  • Have a product question? Ask us
  • Part Number: FTS7188
  • Part Location: U.S.
  • Availability: 138 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 14
Retail: $64.04
Price: $60.99
You Save: $3.05
Adjustable
No
Body Color
White
Body Material
Stainless Steel
Compressed Length (IN)
16.09 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
27.37 Inch
Includes Boot
No
Includes Dust Shield
No
Includes Hardware
No
Internal Design
Twin Tube
Lower Mounting Style
Eyelet
Share this page

Fabtech Motorsports Shock Absorber

Shock Absorber; Performance Twin Tube; Hydraulic; One Year Warranty; Not Adjustable; Without Shock Boots; Single

MPN: FTS7188

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high-velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds. A twin-tube shock absorber consists of a thin wall inner pressure tube and outer reserve tube. The inner tube houses the valving components, piston, and base valve, and is where the damping forces are generated. The outer tube acts as a reservoir for displaced fluid from the shaft volume during the compression stroke. Also contained in the outer tube is a foam sleeve or gas bag that contracts and expands with respect to shaft displacement to eliminate air pockets and increase the performance of the shock.
Type: Hydraulic
With Coil Spring: No
Internal Design: Twin Tube
Adjustable: No
Extended Length (IN): 27.37 Inch
Compressed Length (IN): 16.09 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Eyelet
Body Color: White
Quantity: Single
Rod Diameter (IN): 9/16 Inch
Valving Type: 9 Stage High Velocity Valving
Rod Finish: Chrome Plated
Rod Material: Steel
Body Material: Stainless Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • Twin Tube Hydraulic Construction
  • Closed Cell Foam Insert
  • High Flow 9 Stage Valving
  • Polyurethane Bushings
  • Limited Lifetime Warranty
Specifications of Fabtech Motorsports Shock Absorber - FTS7188
Adjustable No
Body Color White
Body Material Stainless Steel
Compressed Length (IN) 16.09 Inch
Estimated Install Time (Hours) 0.5
Extended Length (IN) 27.37 Inch
Includes Boot No
Includes Dust Shield No
Includes Hardware No
Internal Design Twin Tube
Lower Mounting Style Eyelet
Quantity Single
Rod Diameter (IN) 9/16 Inch
Rod Finish Chrome Plated
Rod Material Steel
Type Hydraulic
Upper Mounting Style Stud
Valving Type 9 Stage High Velocity Valving
With Coil Spring No
With Reservoir No

2005 Ford F-250 Super Duty
2006 Ford F-250 Super Duty
2007 Ford F-250 Super Duty
2008 Ford F-250 Super Duty
2009 Ford F-250 Super Duty
2010 Ford F-250 Super Duty
2011 Ford F-250 Super Duty
2012 Ford F-250 Super Duty
2013 Ford F-250 Super Duty
2014 Ford F-250 Super Duty
2015 Ford F-250 Super Duty
2016 Ford F-250 Super Duty

2005 Ford F-350 Super Duty
2006 Ford F-350 Super Duty
2007 Ford F-350 Super Duty
2008 Ford F-350 Super Duty
2009 Ford F-350 Super Duty
2010 Ford F-350 Super Duty
2011 Ford F-350 Super Duty
2012 Ford F-350 Super Duty
2013 Ford F-350 Super Duty
2014 Ford F-350 Super Duty
2015 Ford F-350 Super Duty
2016 Ford F-350 Super Duty

2008 Ford F-450 Super Duty
2009 Ford F-450 Super Duty
2010 Ford F-450 Super Duty
2011 Ford F-450 Super Duty
2012 Ford F-450 Super Duty
2013 Ford F-450 Super Duty
2014 Ford F-450 Super Duty

2008 Ford F-550 Super Duty
2009 Ford F-550 Super Duty
2010 Ford F-550 Super Duty
2011 Ford F-550 Super Duty
2012 Ford F-550 Super Duty
2013 Ford F-550 Super Duty
2014 Ford F-550 Super Duty
2015 Ford F-550 Super Duty
2016 Ford F-550 Super Duty

2007 Jeep Wrangler JK
2008 Jeep Wrangler JK
2009 Jeep Wrangler JK
2010 Jeep Wrangler JK
2011 Jeep Wrangler JK
2012 Jeep Wrangler JK
2013 Jeep Wrangler JK
2014 Jeep Wrangler JK
2015 Jeep Wrangler JK
2016 Jeep Wrangler JK
2017 Jeep Wrangler JK
2018 Jeep Wrangler JK
