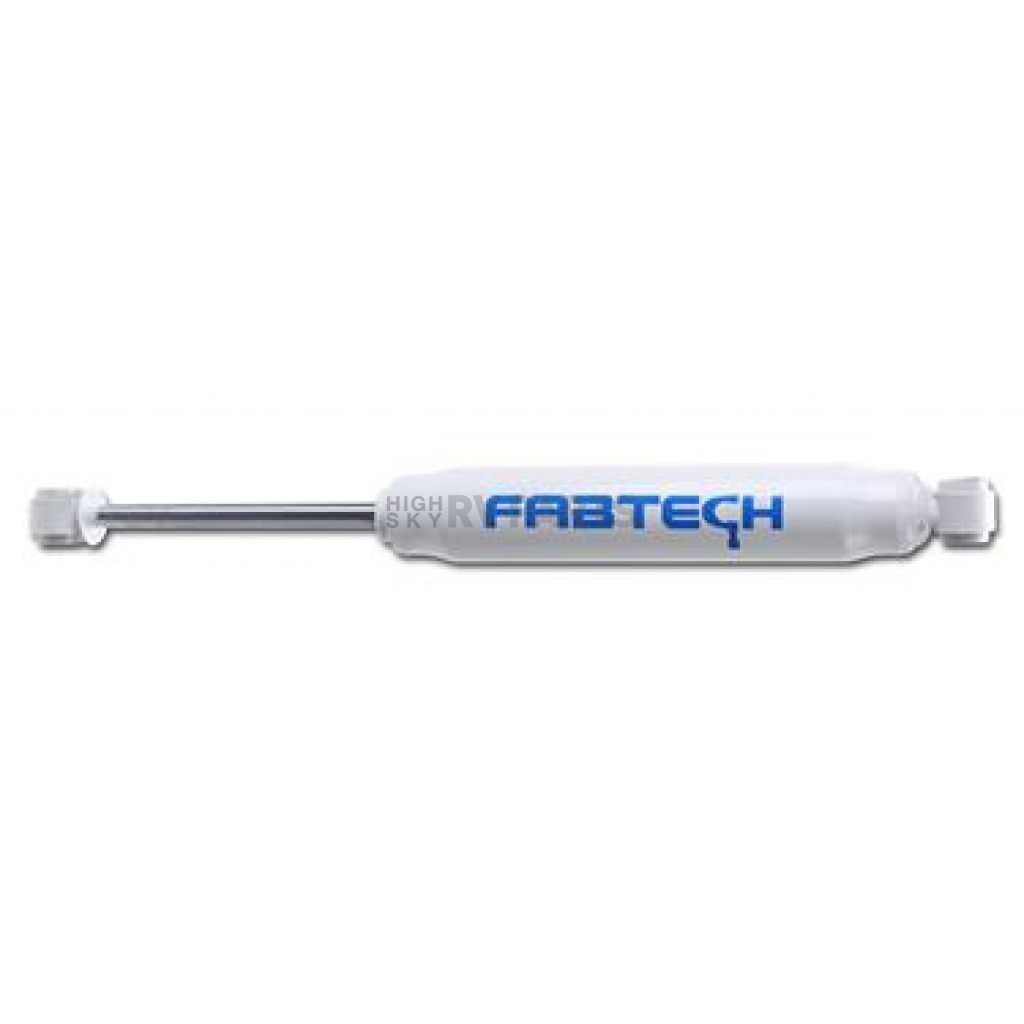

Fabtech Motorsports Shock Absorber - FTS7172

Authorized Dealer
Brand: Fabtech Motorsports Fabtech Motorsports
0 reviews
  • Have a product question? Ask us
  • Part Number: FTS7172
  • Part Location: U.S.
  • Availability: Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 24
Retail: $73.49
Price: $69.99
You Save: $3.50
Adjustable
No
Body Color
White
Body Material
Stainless Steel
Compressed Length (IN)
14.62 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
24.78 Inch
Includes Boot
No
Includes Dust Shield
No
Includes Hardware
No
Internal Design
Twin Tube
Lower Mounting Style
Cross Pin
Share this page

Fabtech Motorsports Shock Absorber

Shock Absorber; Performance Twin Tube; Hydraulic; One Year Warranty; Not Adjustable; Without Shock Boots; Single

MPN: FTS7172

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high-velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds. A twin-tube shock absorber consists of a thin wall inner pressure tube and outer reserve tube. The inner tube houses the valving components, piston, and base valve, and is where the damping forces are generated. The outer tube acts as a reservoir for displaced fluid from the shaft volume during the compression stroke. Also contained in the outer tube is a foam sleeve or gas bag that contracts and expands with respect to shaft displacement to eliminate air pockets and increase the performance of the shock.
Type: Hydraulic
With Coil Spring: No
Internal Design: Twin Tube
Adjustable: No
Extended Length (IN): 24.78 Inch
Compressed Length (IN): 14.62 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Cross Pin
Body Color: White
Quantity: Single
Rod Diameter (IN): 9/16 Inch
Valving Type: 9 Stage High Velocity Valving
Rod Finish: Chrome Plated
Rod Material: Steel
Body Material: Stainless Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • Twin Tube Hydraulic Construction
  • Closed Cell Foam Insert
  • High Flow 9 Stage Valving
  • Polyurethane Bushings
  • Limited Lifetime Warranty
Specifications of Fabtech Motorsports Shock Absorber - FTS7172
Adjustable No
Body Color White
Body Material Stainless Steel
Compressed Length (IN) 14.62 Inch
Estimated Install Time (Hours) 0.5
Extended Length (IN) 24.78 Inch
Includes Boot No
Includes Dust Shield No
Includes Hardware No
Internal Design Twin Tube
Lower Mounting Style Cross Pin
Quantity Single
Rod Diameter (IN) 9/16 Inch
Rod Finish Chrome Plated
Rod Material Steel
Type Hydraulic
Upper Mounting Style Stud
Valving Type 9 Stage High Velocity Valving
With Coil Spring No
With Reservoir No

1997 Jeep Wrangler TJ
1998 Jeep Wrangler TJ
1999 Jeep Wrangler TJ
2000 Jeep Wrangler TJ
2001 Jeep Wrangler TJ
2002 Jeep Wrangler TJ
2003 Jeep Wrangler TJ
2004 Jeep Wrangler TJ
2005 Jeep Wrangler TJ
2006 Jeep Wrangler TJ
