Fabtech Motorsports 3 Inch Lift Kit Suspension Dirt Logic - K7057DL
Color
Black Components/ Silver Shock Absorbers
Front Lift Amount (IN)
3 Inch
Front Lift Type
Coil Over Shock Absorber
Maximum Tire Size
33 x 12.50
Minimum Wheel Diameter
17
Rear Lift Amount (IN)
3 Inch
Shock Type
Front Dirt Logic Remote Reservoir Coil Over Shock Absorbers/ Rear Dirt Logic Remote Reservoir Shock
Shocks
With Shocks In Kit
Wheel Backspacing (IN)
4.62
Wheel Offset (MM)
3
Share this page

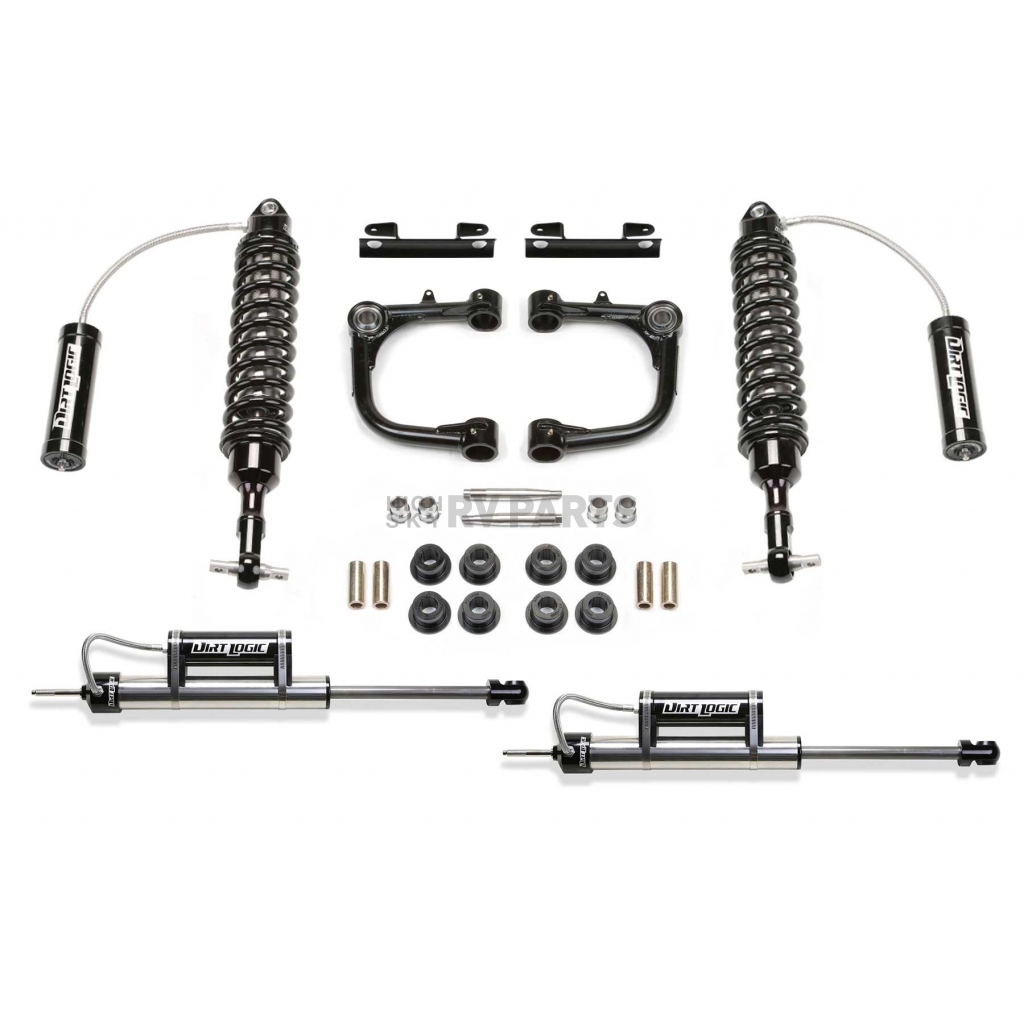

Lift Kit Suspension; Dirt Logic 2.5 ™; 3 Inch Lift; Coil Over Shock Absorbers; With Front Dirt Logic Remote Reservoir Coil Over Shock Absorbers/ Rear Dirt Logic Remote Reservoir Shock Absorbers/ Tubular Upper Control Arms/ Installation Hardware
MPN: K7057DL
Obtain increased wheel travel with a mild lift height with this heavy duty Upper Control Arm systems. The tubular upper control arms feature 1.25 Inch OD, 0.120 Inch wall thick chromoly tube construction with 1 Inch diameter stainless steel uniballs that attach to the factory spindle without drilling. The replacement UCA's have been designed to work in conjunction with Fabtech’s Dirt Logic 2.5 Coilover shocks providing 10 Inch of wheel travel for a complete front suspension system upgrade. The vehicle's off-road suspension performance will be greatly increased due to the extensive ride tuning of the Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25’s.Front Lift Amount (IN): 3 Inch
Rear Lift Amount (IN): 3 Inch
Front Lift Type: Coil Over Shock Absorber
Maximum Tire Size: 33 x 12.50
Shock Type: Front Dirt Logic Remote Reservoir Coil Over Shock Absorbers/ Rear Dirt Logic Remote Reservoir Shock
Wheel Backspacing (IN): 4.62
Minimum Wheel Diameter: 17
Wheel Offset (MM): 3
Shocks: With Shocks In Kit
Color: Black Components/ Silver Shock Absorbers
Features
- Arms Eliminate Upper Ball Joint With Super Strong 1 Inch ID Stainless American Uniball
- Additional Caster Is Built Into Arms For Greater Align Ability To Help With Problematic Leveling Kit Alignments
- Allows For Increased Wheel Travel When Used With Dirt Logic 2.5 Coilover Shocks
- Chromoly Tubing Reduces Flex Found In Stock Arms For More Positive Road Feel
- 17-4 Stainless Steel Heat Treated Uniball Pin Fits Into Factory Ball Joint Taper Without Modification To The Spindle For Easy Return To Stock Feature
- Arms Are Direct Replacements For Factory Arms On Suspensions That Require Additional Strength And Align Ability
- Designed To Work In Conjunction With Fabtech’s Dirt Logic 2.5 Coilover Shocks
- Limited Lifetime Warranty
| Specifications of Fabtech Motorsports 3 Inch Lift Kit Suspension Dirt Logic - K7057DL | |
| Color | Black Components/ Silver Shock Absorbers |
| Front Lift Amount (IN) | 3 Inch |
| Front Lift Type | Coil Over Shock Absorber |
| Maximum Tire Size | 33 x 12.50 |
| Minimum Wheel Diameter | 17 |
| Rear Lift Amount (IN) | 3 Inch |
| Shock Type | Front Dirt Logic Remote Reservoir Coil Over Shock Absorbers/ Rear Dirt Logic Remote Reservoir Shock |
| Shocks | With Shocks In Kit |
| Wheel Backspacing (IN) | 4.62 |
| Wheel Offset (MM) | 3 |
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
