Fabtech Motorsports 2 Inch Sport II Lift Kit Suspension - K4184
Color
Black
Front Lift Amount (IN)
2 Inch
Front Lift Type
Coil Springs
Maximum Tire Size
37 X 12.5
Minimum Wheel Diameter
20
Rear Lift Amount (IN)
2 Inch
Rear Lift Type
Coil Springs
Shock Type
No Shocks
Shocks
Without Shocks In Kit - Shocks Not Change Necessary
Wheel Backspacing (IN)
4.5
Wheel Offset (MM)
-12.7
Share this page
Fabtech Motorsports Lift Kit Suspension

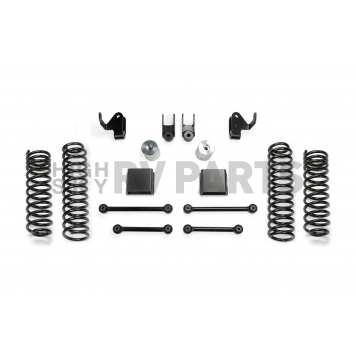

Lift Kit Suspension; Sport II; 2 Inch Front Lift; 2 Inch Rear Lift; Without Shock Absorbers In Kit - Shock Change Not Necessary; Black Components; With Front And Rear Coil Springs/ Shock Absorber Brackets/ Stabilizer Bar Links/ Bump Stop Spacers/ Installation Hardware
MPN: K4184
The sport II lift kit is fabtech’s most popular gladiator lift kit that provides an increased ride height for the mojave edition at a great price. Installation is easy and can be installed in a couple hours. The sport ii features American made front and rear coil springs that are a dual rate design allowing extended suspension travel for offroad use while providing a smooth highway ride. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the gladiator and address large impact absorption at higher speeds. The heart of the factory jeep mojave suspension is the fox 2.5 internal bypass shocks. This fabtech lift kit retains those shocks with heavy duty extension brackets that are designed for rugged offroad use. The fox hydraulic bump stops are also retained and the bump stop pads are relocated to work in conjunction with the new ride height for proper suspension travel operation. Fabtech Comes with extended length front and rear sway bar links with urethane bushings to reposition the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel.
Front Lift Amount (IN): 2 Inch
Rear Lift Amount (IN): 2 Inch
Front Lift Type: Coil Springs
Rear Lift Type: Coil Springs
Maximum Tire Size: 37 X 12.5
Minimum Wheel Diameter: 20
Wheel Offset (MM): -12.7
Wheel Backspacing (IN): 4.5
Shocks: Without Shocks In Kit - Shocks Not Change Necessary
Shock Type: No Shocks
Color: Black
Features
- Dual Rate Design Allowing Extended Suspension Travel For Offroad Use While Providing A Smooth Highway Ride
- Heavy Duty Extension Steel Brackets That Are Designed For Rugged Offroad Use
- Urethane Bushings To Reposition The Sway Bar Links To Work Within The Factory Operating Planes
- Hydraulic Bump Stops To Keep The Suspension From Over Cycling With The Increased Ride Height
- Limited Lifetime Warranty
| Specifications of Fabtech Motorsports 2 Inch Sport II Lift Kit Suspension - K4184 | |
| Color | Black |
| Front Lift Amount (IN) | 2 Inch |
| Front Lift Type | Coil Springs |
| Maximum Tire Size | 37 X 12.5 |
| Minimum Wheel Diameter | 20 |
| Rear Lift Amount (IN) | 2 Inch |
| Rear Lift Type | Coil Springs |
| Shock Type | No Shocks |
| Shocks | Without Shocks In Kit - Shocks Not Change Necessary |
| Wheel Backspacing (IN) | 4.5 |
| Wheel Offset (MM) | -12.7 |
2020 Jeep Gladiator JT
2021 Jeep Gladiator JT
2022 Jeep Gladiator JT
2021 Jeep Gladiator JT
2022 Jeep Gladiator JT
