Fabtech Motorsports 3 Inch Lift Kit Suspension Dirt Logic - K3171DL
Color
Black Components/ Silver Shock Absorbers
Front Lift Amount (IN)
3 Inch
Front Lift Type
Tubular Control Arms
Maximum Tire Size
35 x 12.50
Minimum Wheel Diameter
18
Rear Lift Amount (IN)
3 Inch
Rear Lift Type
Coil Spring Spacers
Shocks
With Shocks In Kit
Wheel Backspacing (IN)
5
Wheel Offset (MM)
0
Share this page
Fabtech Motorsports Lift Kit Suspension

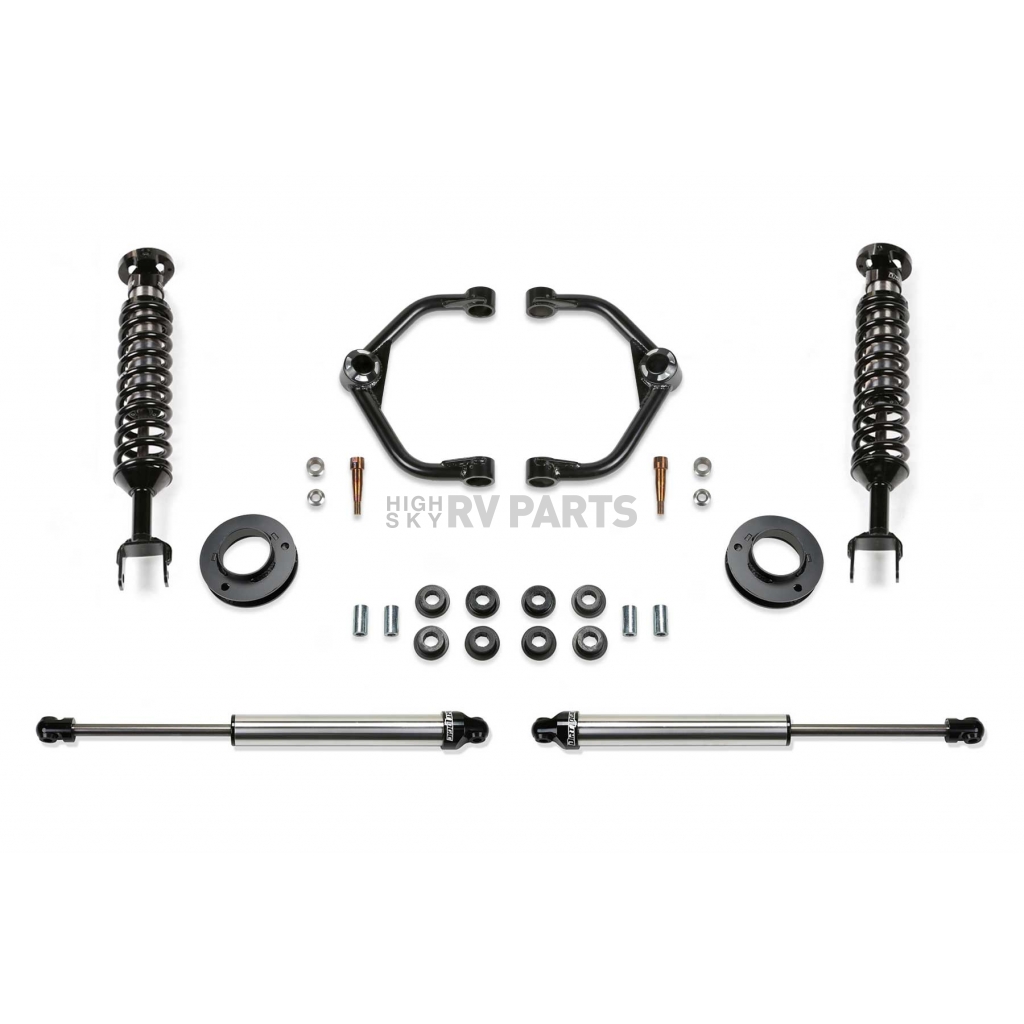

Lift Kit Suspension; 3 Inch Front Lift; 3 Inch Rear Lift; With Front Dirt Logic Coil Over Shock Absorbers And Rear Dirt Logic Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Rear Coil Spring Spacers/ Front Tubular Control Arms/ Installation Hardware
MPN: K3171DL

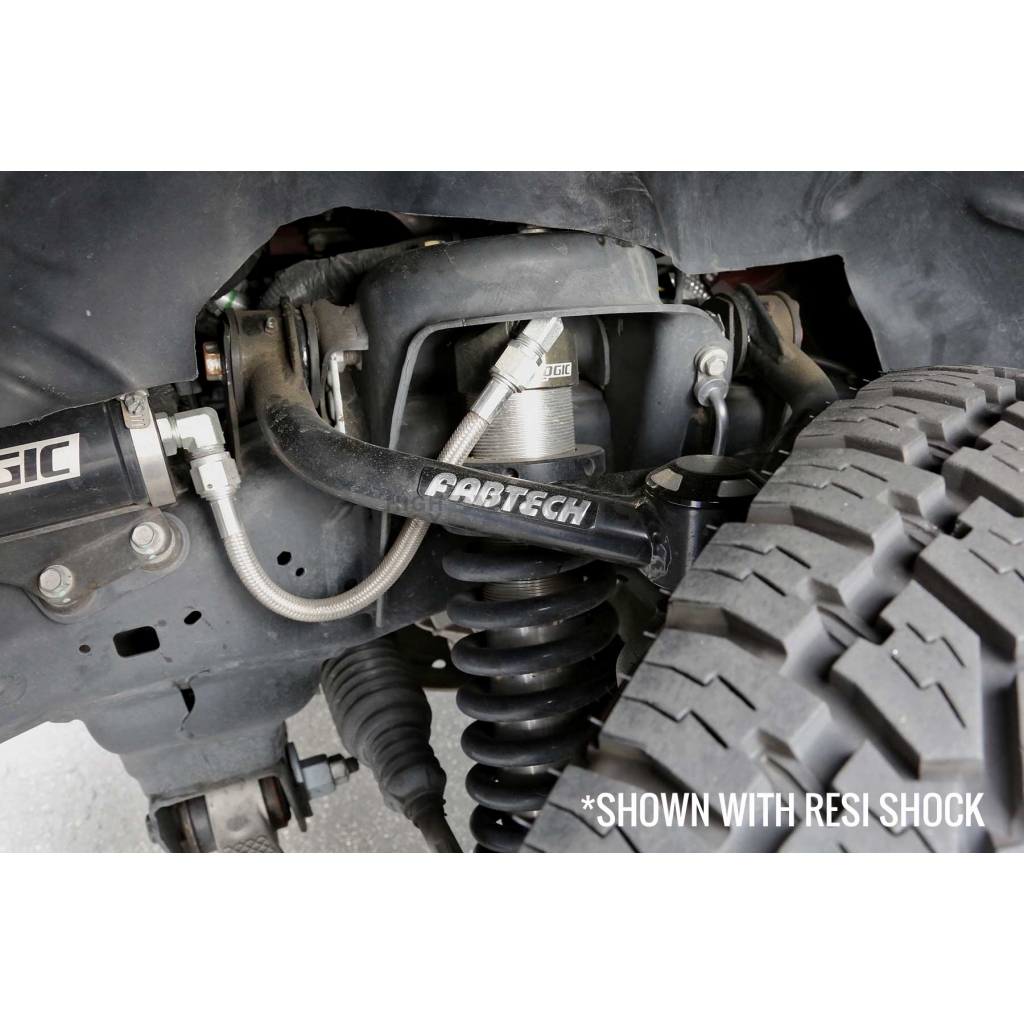

Fabtech’s high-quality Ram lift kit offers increased front suspension travel for enhanced offroad capabilities with clearance to run 35 Inch tall tires. The stance of the vehicle will become more level front to rear for an aggressive look. The factory Ram upper control arms are replaced with Fabtech’s Uniball Upper Control Arms that provide additional wheel travel with an extra degree of caster compared to stock arms. The increased caster helps to balance steering effort with oversized tires. The Fabtech upper control arms are constructed of the finest material with 0.120 Inch wall 1.25 Inch OD 4130 Chromoly steel tubing. This is superior to the stock plastic arms. Yes, the stock arms are plastic. Fabtech arms will add rigidity and strength to the Ram suspension. High-quality 1 Inch FK Stainless PTFE lined Uniball bearings are utilized in place of the small factory ball joints and allow for increased travel without bind. These super stout Ram upper control arms are designed for longevity in rugged offroad conditions while providing a more positive on-road feel. The Fabtech upper control arms have been designed to work in conjunction with the Dirt Logic 2.5 Coilover shocks to provide additional front wheel travel. The rear suspension receives Dirt Logic 2.25 shocks for a balanced ride. All Dirt Logics are constructed with a stainless steel body and a NitroSteel® piston rod for maximum corrosion resistance in the harshest conditions. These Dirt Logics have been extensively tested and tuned to provide a superior ride quality both on and offroad. This system is perfect for those that want increased suspension performance with a low lift height. A great choice for daily drivers that want a clean look with the ability to hit the trails on weekends.
Front Lift Amount (IN): 3 Inch
Rear Lift Amount (IN): 3 Inch
Front Lift Type: Tubular Control Arms
Rear Lift Type: Coil Spring Spacers
Maximum Tire Size: 35 x 12.50
Minimum Wheel Diameter: 18
Wheel Offset (MM): 0
Wheel Backspacing (IN): 5
Shocks: With Shocks In Kit
Color: Black Components/ Silver Shock Absorbers
Features
- UCA’s Eliminate Factory Upper Ball Joint W/ Super Strong 1 Inch ID Stainless Steel American Uniball For Increased Suspension Strength
- Additional Caster Is Built Into Arms For Enhanced Align Ability With Oversized Tires
- 1.25 Inch OD .120 Inch Wall 4130 Chromoly Tubing Reduces Flex Found In Stock Plastic Arms For More Positive Road Feel
- 17-4 Heat Treated Uniball Pin Fits Into Factory Ball Joint Taper Without Modification To The Spindle For Easy Return To Stock Feature
- Great System For The Daily Driver That Requires Increased Offroad Performance
- Limited Lifetime Warranty
| Specifications of Fabtech Motorsports 3 Inch Lift Kit Suspension Dirt Logic - K3171DL | |
| Color | Black Components/ Silver Shock Absorbers |
| Front Lift Amount (IN) | 3 Inch |
| Front Lift Type | Tubular Control Arms |
| Maximum Tire Size | 35 x 12.50 |
| Minimum Wheel Diameter | 18 |
| Rear Lift Amount (IN) | 3 Inch |
| Rear Lift Type | Coil Spring Spacers |
| Shocks | With Shocks In Kit |
| Wheel Backspacing (IN) | 5 |
| Wheel Offset (MM) | 0 |
2019 Ram 1500- New Model
2020 Ram 1500- New Model
2021 Ram 1500- New Model
2020 Ram 1500- New Model
2021 Ram 1500- New Model
